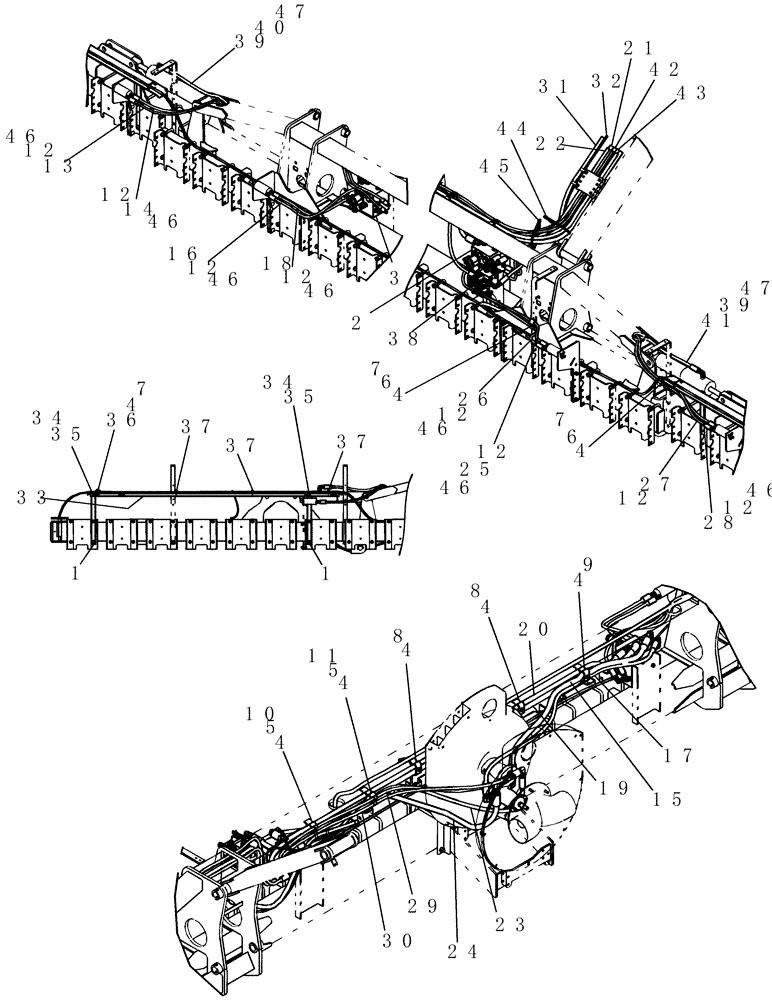

Запчасти Case IH 1200PT (A.10.A[39]) - LAYOUT HYD HOSES ROUTING 16/31 ROW (BTW CBJ022252 AND CBJ026002) A - Distribution Systems

1

87447161

BRACKET

hose routing

4шт.

2

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

3

417538A1

CONTROL VALVE

assembly multi with relief

1шт.

4

427781A1

HOSE CLAMP

2 hose

11шт.

5

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

6

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

8

86512176

BOLT,Hex Flg, 3/8" - 16 x 2", Gr 5

2шт.

9

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

10

86977730

SERRATED SCREW,3/8" - 16 x 2 1/2"

FG 3/8"-16 x 2 1/2", G5

1шт.

11

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

1шт.

12

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

8шт.

Includes O-Ring

1шт.

13

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

1шт.

14

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

1шт.

15

410544A1

HYDRAULIC HOSE

3/4" x 65" fl

1шт.

16

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

17

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

18

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

19

87454225

HYDRAULIC HOSE

3/4" x 175" fl

1шт.

20

87454223

HYDRAULIC HOSE

5/8" x 175" fl

1шт.

21

87448899

HYDRAULIC HOSE,19mm ID x 14480mm L, SAE 100R17

3/4" x 570" fl

1шт.

22

87448896

HYDRAULIC HOSE,16mm ID x 14480mm L, SAE 100R17

5/8" x 570" fl

1шт.

23

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

24

87424861

HYDRAULIC HOSE

3/4" x 62" fl

1шт.

25

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

1шт.

26

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

1шт.

27

812381C2

HYDRAULIC HOSE

3/8" x 115" fl

1шт.

28

812381C2

HYDRAULIC HOSE

3/8" x 115" fl

1шт.

29

1284298C1

HYDRAULIC HOSE

3/8" x 160" fl, Serial Range: -CBJ022251

1шт.

29

129759C2

HYDRAULIC HOSE

3/8" x 180" fl, Start Serial: CBJ022252

1шт.

30

1284292C1

HYDRAULIC HOSE

3/8" x 245" fl

1шт.

31

398135A1

WIRE HARNESS

toolbar 4 sections

1шт.

32

87447338

HARNESS

frame

1шт.

33

87446926

BRACKET

hydraulic hose routing

2шт.

34

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

4шт.

35

86625061

NUT,1/4"-20, GB

4шт.

36

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

2шт.

37

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

38

401592A1

VALVE, CONTROL

assembly marker

1шт.

39

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

Includes O-Ring

1шт.

40

134215A1

HYDRAULIC HOSE

1/2" x 205" fl

1шт.

41

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

42

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

1шт.

43

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

1шт.

44

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

45

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

1шт.

46

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

47

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
