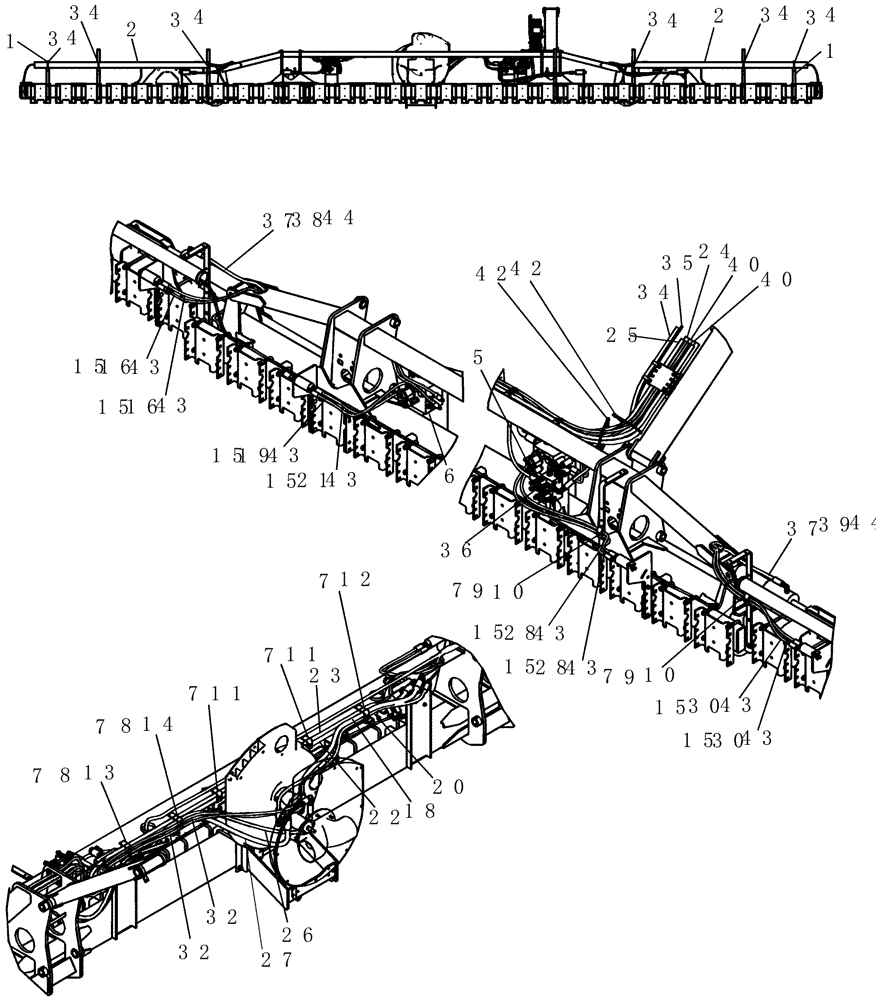

Запчасти Case IH 1200PT (A.10.A[38]) - LAYOUT HYD HOSES ROUTING 16/31 ROW (BSN CBJ022251) A - Distribution Systems

1

427829A1

BRACKET

hose routing

2шт.

2

436200A1

HYD TUBE

hose routing

2шт.

3

436288A1

U-BOLT

BOLT "U" ur 1/4"-20 3 11/32"w 4 13/32"d 1 21/32" thread - vacuum sys

6шт.

4

86625061

NUT,1/4"-20, GB

12шт.

5

390535A2

VALVE, CONTROL

assembly multi-valve

1шт.

6

417538A1

CONTROL VALVE

assembly multi with relief

1шт.

7

427781A1

HOSE CLAMP

2 hose

9шт.

8

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

9

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

11

86512176

BOLT,Hex Flg, 3/8" - 16 x 2", Gr 5

2шт.

12

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

13

86977730

SERRATED SCREW,3/8" - 16 x 2 1/2"

FG 3/8"-16 x 2 1/2", G5

1шт.

14

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

1шт.

15

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

8шт.

Includes O-Ring

1шт.

16

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

2шт.

18

410544A1

HYDRAULIC HOSE

3/4" x 65" fl

1шт.

19

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

20

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

21

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

1шт.

22

451580A1

HYDRAULIC HOSE

3/4" x 300" fl

1шт.

23

451579A1

HYDRAULIC HOSE

5/8" x 300" fl

1шт.

24

87424846

HYDRAULIC HOSE

3/4" x 182" fl

1шт.

25

87424845

HYDRAULIC HOSE

5/8" x 180" fl

1шт.

26

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

27

87424861

HYDRAULIC HOSE

3/4" x 62" fl

1шт.

28

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

2шт.

30

812381C2

HYDRAULIC HOSE

3/8" x 115" fl

2шт.

32

1284292C1

HYDRAULIC HOSE

3/8" x 245" fl

2шт.

34

398135A1

WIRE HARNESS

toolbar 4 sections

1шт.

12/23 row and 16/31 row planters

1шт.

35

398133A2

HARNESS

frame

1шт.

12 row, 16 row, 12/23 row and 16/31 row planters

1шт.

36

401592A1

VALVE, CONTROL

assembly marker

1шт.

37

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

Includes O-Ring

1шт.

38

134215A1

HYDRAULIC HOSE

1/2" x 205" fl

1шт.

39

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

40

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

2шт.

42

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

2шт.

43

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

44

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
