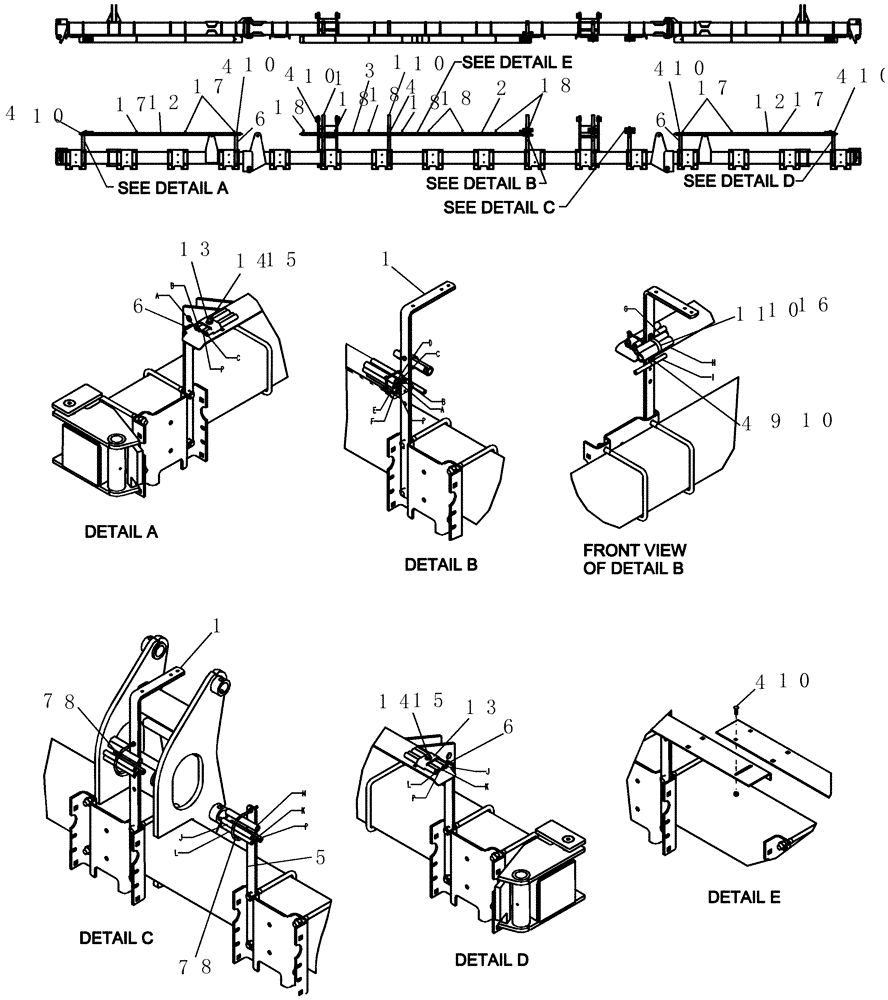

Запчасти Case IH 1200PT (A.10.A[37]) - LAYOUT HYD HOSES ROUTING 16 ROW (ASN CBJ022252) A - Distribution Systems

1

427745A2

BAR

vacuum support

4шт.

2

87447173

PLATE

hydraulic hose routing

1шт.

3

87446920

PLATE

hydraulic hose routing

1шт.

4

523291

BOLT,Hex Serr Flg, 1/4" - 20 x 1/2"

8шт.

Used with "Marker" Option

1шт.

5

427829A1

BRACKET

hose routing

1шт.

4

523291

BOLT,Hex Serr Flg, 1/4" - 20 x 1/2"

4шт.

Used with "No Marker" Option

1шт.

6

87447161

BRACKET

hose routing

4шт.

Used with "Marker" Option

1шт.

7

436288A1

U-BOLT

BOLT "U" ur 1/4"-20 3 11/32"w 4 13/32"d 1 21/32" thread - vacuum sys

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

9

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

10

86625061

NUT,1/4"-20, GB

9шт.

Used with "Marker" Option

1шт.

11

87023168

CLAMP,44.4mm, Coat, 7.1mm Bolt Hole, P Type

1 3/4", Insul, 1/4" Bolt

1шт.

12

87446926

BRACKET

hydraulic hose routing

2шт.

Used with "Marker" Option

1шт.

10

86625061

NUT,1/4"-20, GB

4шт.

Used with "No Marker" Option

1шт.

13

427781A1

HOSE CLAMP

2 hose

2шт.

Used with "Marker" Option

1шт.

14

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

2шт.

Used with "Marker" Option

1шт.

15

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

Used with "Marker" Option

1шт.

16

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

17

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

Used with "Marker" Option

1шт.

18

529070

CABLE TIE,368.3mm L

CABLE STRAP

8шт.
