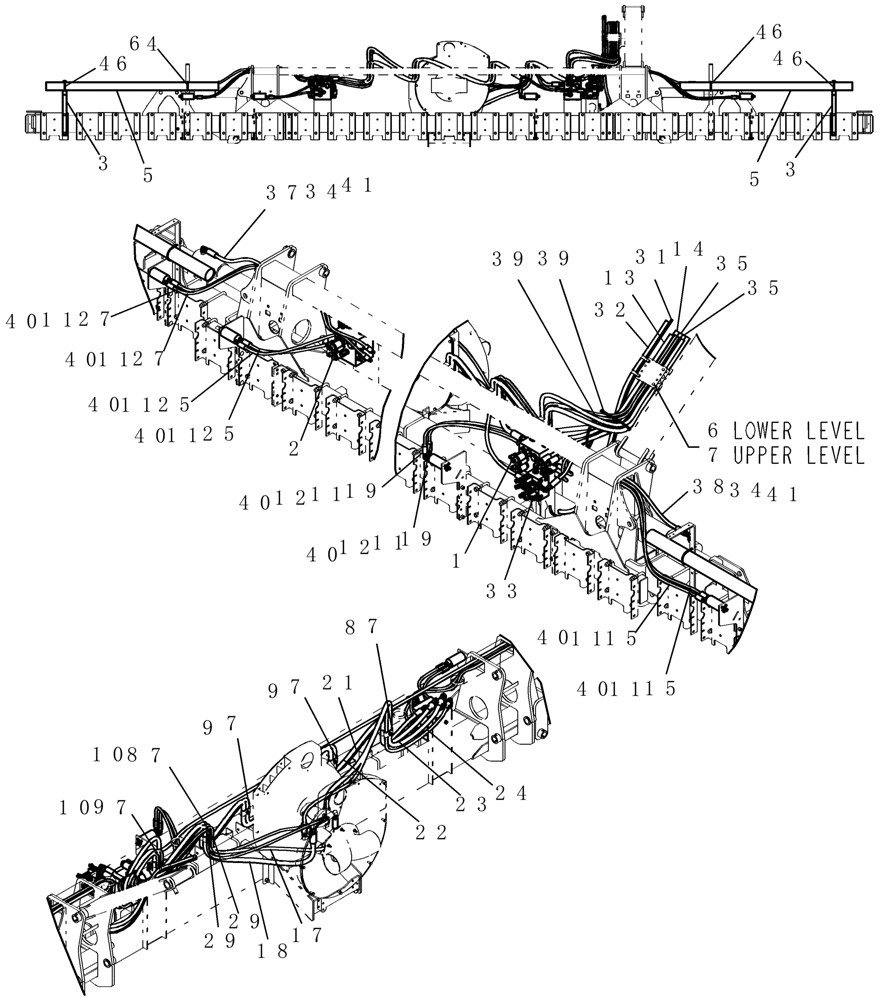

Запчасти Case IH 1200PT (A.10.A[34]) - LAYOUT HYD HOSES ROUTING 12/23 ROW (BSN CBJ022251) A - Distribution Systems
№
Артикул
Название
Примечание
Количество
1
390535A2
VALVE, CONTROL
assembly multi-valve
1шт.
2
417538A1
CONTROL VALVE
assembly multi with relief
1шт.
3
427829A1
BRACKET
hose routing
2шт.
4
436288A1
U-BOLT
BOLT "U" ur 1/4"-20 3 11/32"w 4 13/32"d 1 21/32" thread - vacuum sys
4шт.
5
436202A1
HYD TUBE
hose routing
2шт.
6
280129
NUT,1/4"-20
8шт.
7
427781A1
HOSE CLAMP
2 hose
7шт.
8
86977730
SERRATED SCREW,3/8" - 16 x 2 1/2"
FG 3/8"-16 x 2 1/2", G5
2шт.
9
86512175
BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"
3шт.
10
86594406
CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type
4шт.
Includes O-Ring
1шт.
13
87424845
HYDRAULIC HOSE
5/8" x 180" fl
1шт.
14
87424846
HYDRAULIC HOSE
3/4" x 182" fl
1шт.
15
1284296C1
HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm
2шт.
17
1301966C2
HYDRAULIC HOSE
1/2" x 70" fl
1шт.
18
87424861
HYDRAULIC HOSE
3/4" x 62" fl
1шт.
19
1259625C1
HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1
2шт.
21
451579A1
HYDRAULIC HOSE
5/8" x 300" fl
1шт.
22
451580A1
HYDRAULIC HOSE
3/4" x 300" fl
1шт.
23
410544A1
HYDRAULIC HOSE
3/4" x 65" fl
1шт.
24
1301966C2
HYDRAULIC HOSE
1/2" x 70" fl
1шт.
25
1259625C1
HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1
2шт.
27
1284296C1
HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm
2шт.
29
1284292C1
HYDRAULIC HOSE
3/8" x 245" fl
2шт.
31
398133A2
HARNESS
frame
1шт.
12 row, 16 row, 12/23 row and 16/31 row planters
1шт.
32
398135A1
WIRE HARNESS
toolbar 4 sections
1шт.
12/23 row and 16/31 row planters
1шт.
33
401592A1
VALVE, CONTROL
assembly marker
1шт.
34
128830
90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB
2шт.
Includes O-Ring
1шт.
35
410538A1
HYDRAULIC HOSE
5/8" x 94" fl
2шт.
37
91204C1
HYDRAULIC HOSE,12.7mm ID x 4320mm L
1шт.
38
90874C1
HYDRAULIC HOSE
1/2" x 55" fl
1шт.
39
87557087
CABLE TIE
CABLE STRAP 11" with stainless locking clip
2шт.
Выбрано товаров: 39
