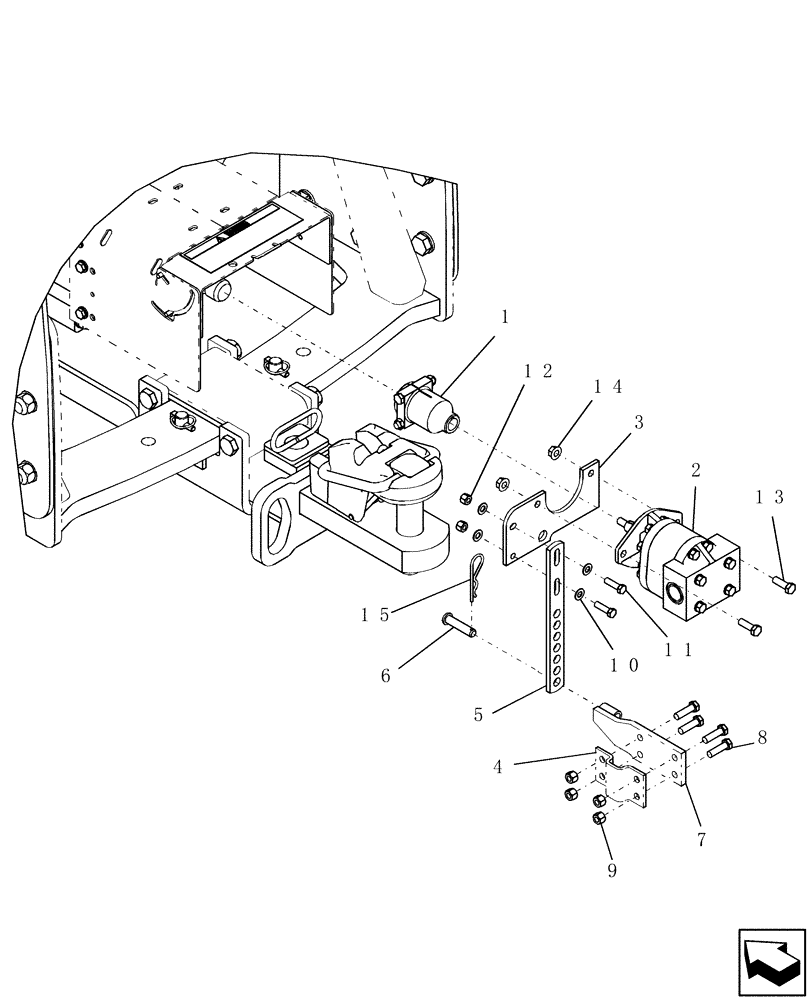

Запчасти Case IH 1200PT (A.10.A[32]) - HITCH TORQUE RESTRAINT KIT - STX STEIGER TRACTORS WITH STANDARD DRAWBARS A - Distribution Systems

0

87413798

PACKAGE

PTO restraint-STX standard drawbar

1шт.

1

1958268C1

COUPLING

1 3/4"

1шт.

For Tractors with 1-3/4" PTO shaft

1шт.

1

1958267C1

COUPLING,Assembly, Pump, 1 3/8" Spline, 21 Tooth

1 3/8"

1шт.

For Tractors with 1-3/8" PTO shaft

1шт.

2

293243A1

PUMP

PTO 5.84 in3/rev

1шт.

2

293243A1R

REMAN-HYD PUMP

Remanufactured Hydraulic PTO Pump

1шт.

2

293243A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87619629R

REMAN-HYD PUMP

1200PT (11/01-7/08), Reman For New P/N 293243A1

1шт.

1

87619629C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

Q53

KEY,1/4" Sq x 1", Par

1шт.

Comes with the pump, but can be ordered separately

1шт.

2

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

Comes with the pump, but can be ordered separately

1шт.

2

310572A1

SEAL KIT

shaft pto pump

1шт.

3

87409593

MOUNTING PLATE

pump

1шт.

4

87403457

BRACKET

PTO restraint lock

1шт.

5

437631A1

BRACKET

adjusting

1шт.

6

86624085

HEADED PIN,15.88mm OD x 69.85mm L

1шт.

7

87409589

DRAWBAR SUPPORT

PTO restraint Steiger (STD)

1шт.

8

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

9

86992215

LOCK NUT,1/2"-13, GC

4шт.

10

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

4шт.

11

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

12

86637736

NUT,7/16"-14, GB

2шт.

13

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

14

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

15

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

100

87413797

PACKAGE

PTO restraint-STX/TJ standard drawbar

1шт.

Includes ref #3, 4, 7, 8, 9

1шт.
