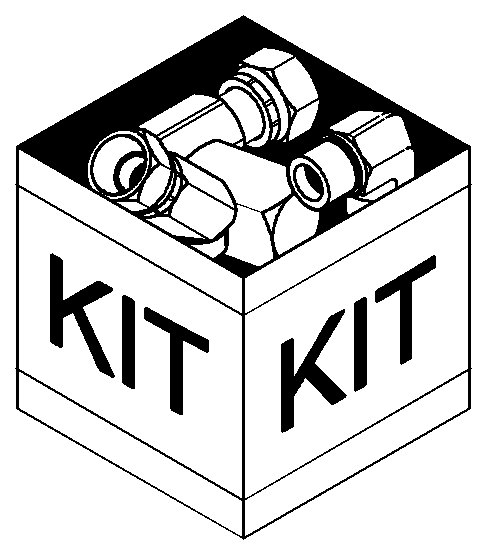

Запчасти Case IH 1200PT (L.65.F) - KIT RU LINKAGE ASSY 14 INCH L - Field Processing

1

87459131

KIT

Incl 2 - 20

1шт.

2

141728C5

BRACKET

1шт.

3

87739254

BAR

2шт.

4

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

4шт.

5

280659

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 8

4шт.

6

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

7

88871

NUT,1/2"-13, GC

4шт.

8

413712A1

BEARING ASSY,1.90625" OD x 1.875"

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

11

87462073

BRACKET

1шт.

12

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

13

84555155

LINKAGE

1шт.

14

47394329

HEADED PIN,12.7mm OD x 57.15mm L

1шт.

15

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

16

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

17

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

18

87462749

CARTRIDGE

1шт.

19

86624062

HEADED PIN,12.7mm OD x 88.9mm L

1шт.

20

480523R1

HAIR PIN COTTER

1шт.
