(A.10.A[28]) - MOTOR CASE DRAIN ATTACHMENT KIT - MXM120, 130, 140, 155, 175 AND 190 TRACTORS

Запчасти Case IH 1200PT (A.10.A[28]) - MOTOR CASE DRAIN ATTACHMENT KIT - MXM120, 130, 140, 155, 175 AND 190 TRACTORS A - Distribution Systems

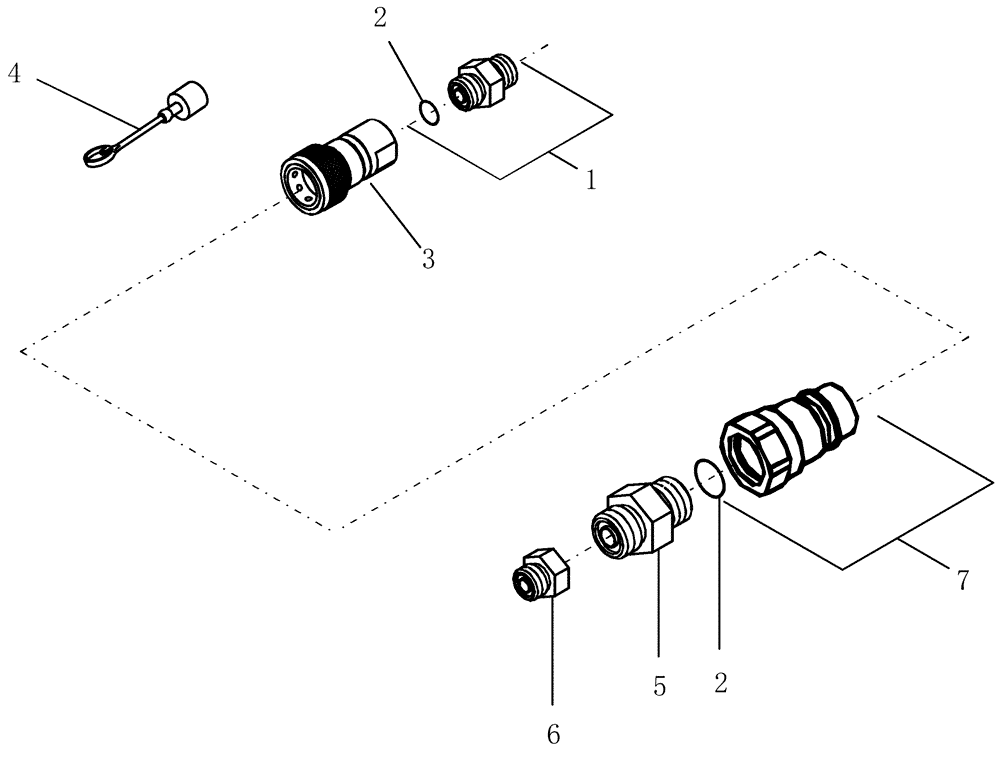

Схема запчастей Case IH 1200PT - (A.10.A[28]) - MOTOR CASE DRAIN ATTACHMENT KIT - MXM120, 130, 140, 155, 175 AND 190 TRACTORS A - Distribution Systems
1
6
5
7
2
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

136460

ADAPTER

st without ring

1шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

3

106029

COUPLING

female

1шт.

4

9618038

DUST CAP

1шт.

5

86977779

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 14 NPT

1шт.

6

218-766

REDUCER,37 Degree, 1 1/16"-12, Fem x 9/16"-18 Male

1шт.

7

242605

COUPLING

male

1шт.

Выбрано товаров: 7
