Запчасти Case IH 1200PT (L.50.F[07]) - ROW UNIT COULTER ATTACHMENT (ASN CBJ0001893) L - Field Processing

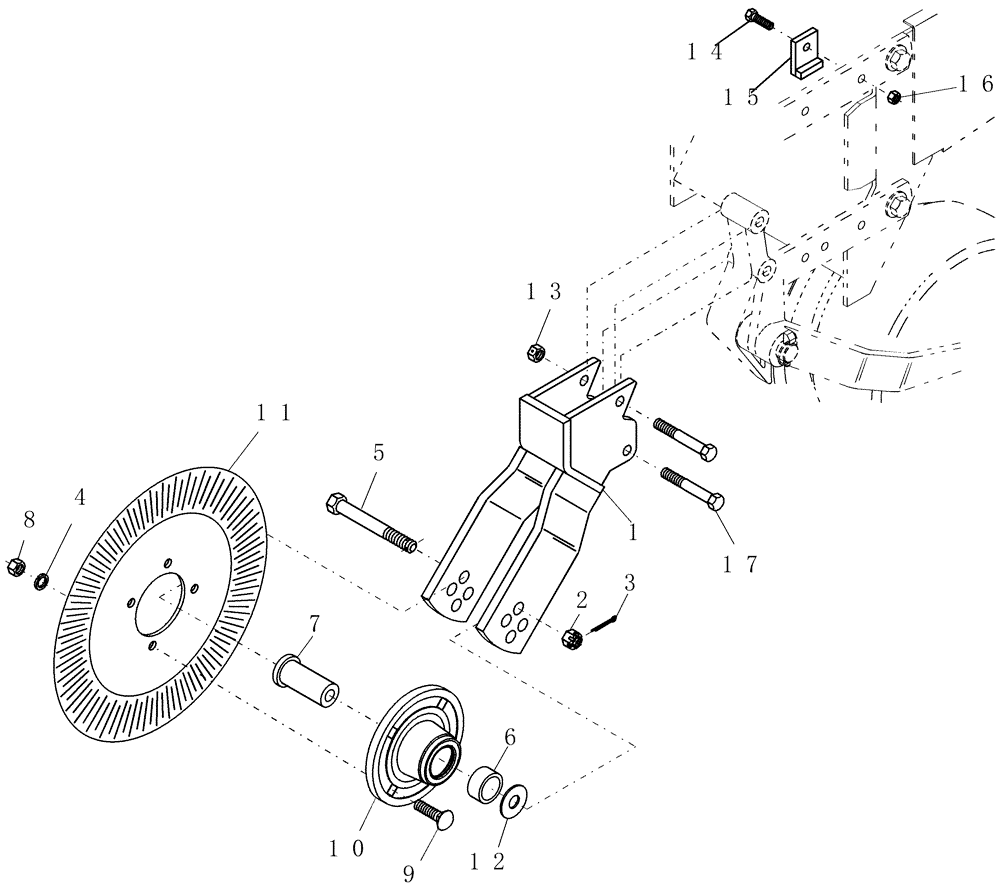

Схема запчастей Case IH 1200PT - (L.50.F[07]) - ROW UNIT COULTER ATTACHMENT (ASN CBJ0001893) L - Field Processing
5
9
7
17
14
12
15
10
4
3
16
6
8
11
13
2
1

Артикул

Название

Примечание

Количество

1

129620A1

BRACKET

row mounted coulter, Serial Range: -CBJ022348

1шт.

1

87501828

BRACKET

row mounted coulter, Start Serial: CBJ022349

1шт.

2

86637930

SLOTTED NUT,5/8"-18, G5

1шт.

3

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

5

87413978

BOLT

spindle, 5/8"-18 x 5"

1шт.

6

87413973

SPACER

spindle 19.05 mm long

1шт.

7

87413975

SPACER

spindle, with shoulder

1шт.

8

280431

NUT,1/2"-13, G5

4шт.

9

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

10

87413974

HUB

coulter

1шт.

11

431542A1

PLOW DISC

25 wave blade

1шт.

11

130800A1

BLADE

coulter - 8 wave

1шт.

11

130800A2

PLOW DISC

coulter, 14.3", 8 wave

1шт.

12

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

13

86992215

LOCK NUT,1/2"-13, GC

2шт.

14

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

15

129621A1

STOP

row unit

2шт.

16

88902

NUT,3/8"-16

2шт.

17

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

2шт.

Выбрано товаров: 20
