(A.10.A[27]) - MOTOR CASE DRAIN ATTACHMENT KIT - STX275, 325, 375, 425, 440 AND 450 STEIGER TRACTORS

Запчасти Case IH 1200PT (A.10.A[27]) - MOTOR CASE DRAIN ATTACHMENT KIT - STX275, 325, 375, 425, 440 AND 450 STEIGER TRACTORS A - Distribution Systems

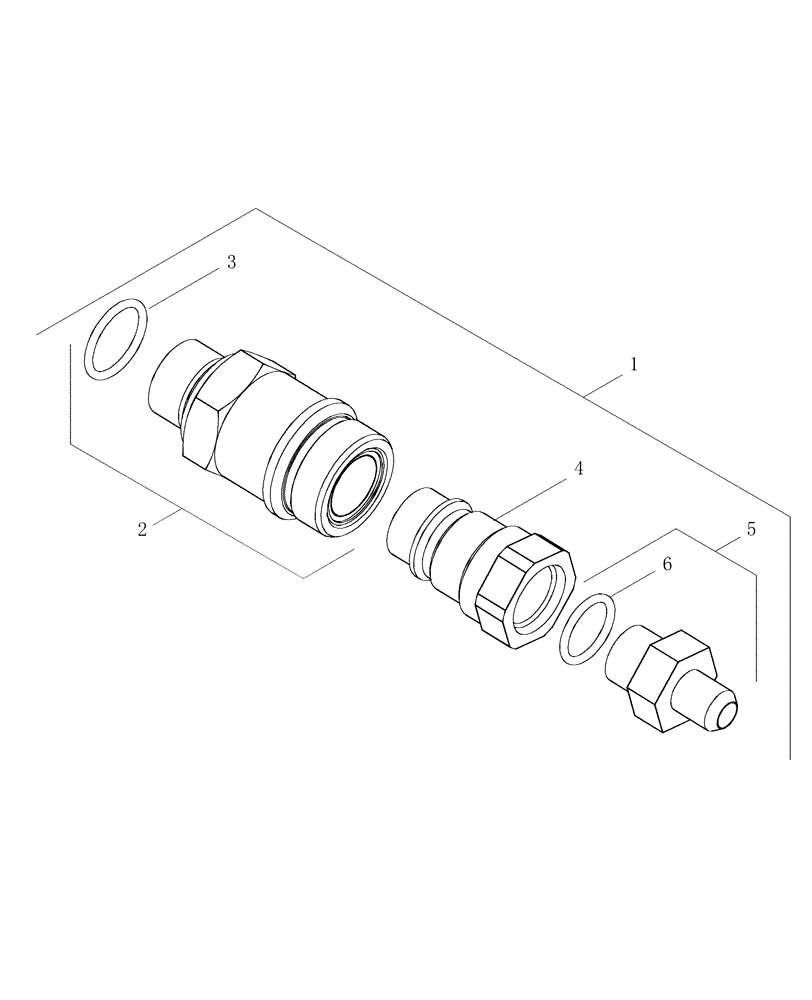

Схема запчастей Case IH 1200PT - (A.10.A[27]) - MOTOR CASE DRAIN ATTACHMENT KIT - STX275, 325, 375, 425, 440 AND 450 STEIGER TRACTORS A - Distribution Systems
6
5
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

405390A1

PACKAGE

kit case drain STX Steiger, Serial Range: -CBJ0012311

1шт.

2

380739A1

COUPLING, BREAK AWAY

Parker 9904-085

1шт.

3

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

5

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 6
