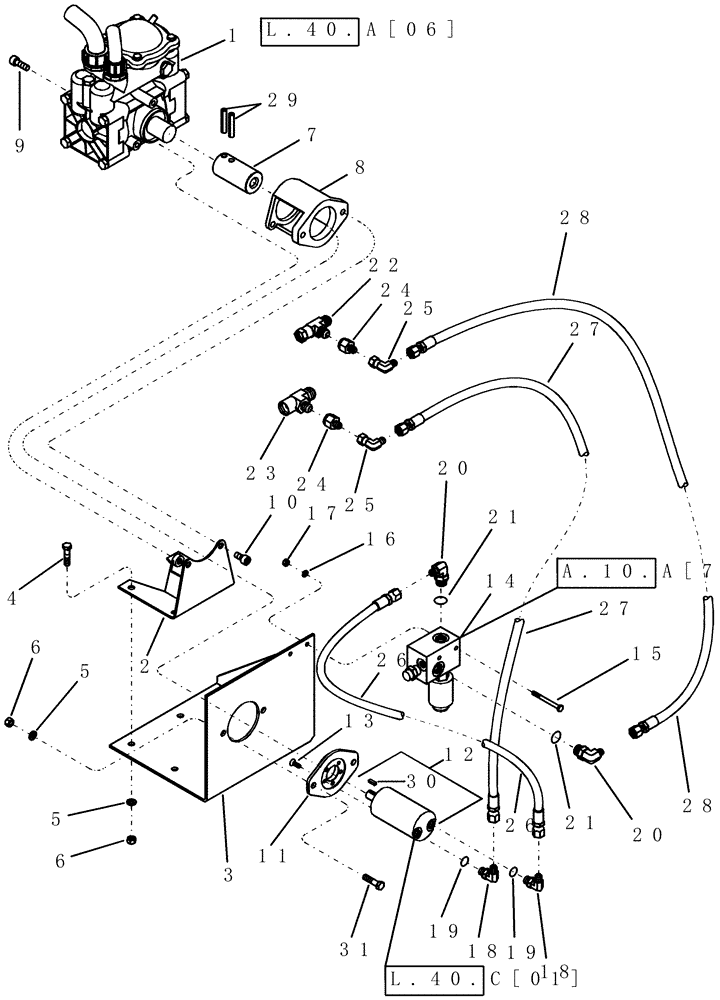

Запчасти Case IH 1200PT (L.50.F[01]) - LIQUID FERTILIZER PUMP AND DRIVE ASSEMBLY, 12 ROW, 12/23 ROW, 16 ROW & 16/31 ROW L - Field Processing

1

403008A1

PUMP

diaphram low pressure

1шт.

1

87462811

SEAL KIT

pump o-ring complete 9910-KIT2365

1шт.

2

408358A1

BASE

mount pump kit

1шт.

3

427973A1

BRACKET

pump mounting

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

6

9628503

NUT,3/8"-16, G5

6шт.

7

400299A2

COUPLING

, Serial Range: pump-motor

1шт.

8

86990284

FLANGE

motor mounting

1шт.

9

9832986

HEX SOC SCREW,M10 x 30mm, Cl 8.8

Hex Soc Hd, M10 x 30, 8.8

1шт.

10

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

2шт.

11

400300A1

FLANGE

mounting znd

1шт.

12

284797A1

MOTOR

19.8 cm³ (1.21 in³) disp fert drive

1шт.

12

284797A1R

REMAN-HYD MOTOR

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, 19.8 cm³ (1.21 in³) disp fert drive (11/01-7/08)

1шт.

12

284797A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

13

87659

HEX SOC SCREW,FLAT, 1/4" - 28 x 3/4"

3шт.

14

419865A1

CONTROL VALVE

assembly flow variable rate

1шт.

15

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

16

80682

LOCK WASHER,1/4"

2шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

18

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

20

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

86632549

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

, Serial Range: -CBJ022251

1шт.

22

218-1585

TEE,37 Degree, 7/8"-16 x 3/4"-16 Br

, Start Serial: CBJ022252

1шт.

23

86632548

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

, Serial Range: -CBJ022251

1шт.

23

266315

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

, Start Serial: CBJ022252

1шт.

24

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

25

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

, Serial Range: -CBJ022251

2шт.

26

1336840C1

HYDRAULIC HOSE

3/8" x 25" fl

1шт.

27

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" x 275" fl, Serial Range: -CBJ022251

1шт.

27

1284254C1

HYDRAULIC HOSE

3/8" x 170" fl, Start Serial: CBJ022252

1шт.

28

1284260C1

HYDRAULIC HOSE

3/8" x 265" fl, Serial Range: -CBJ022251

1шт.

28

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

3/8" x 175" fl, Start Serial: CBJ022252

1шт.

29

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

30

86632575

KEY

3/16" Sq x 11/16" Par

1шт.

31

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.
