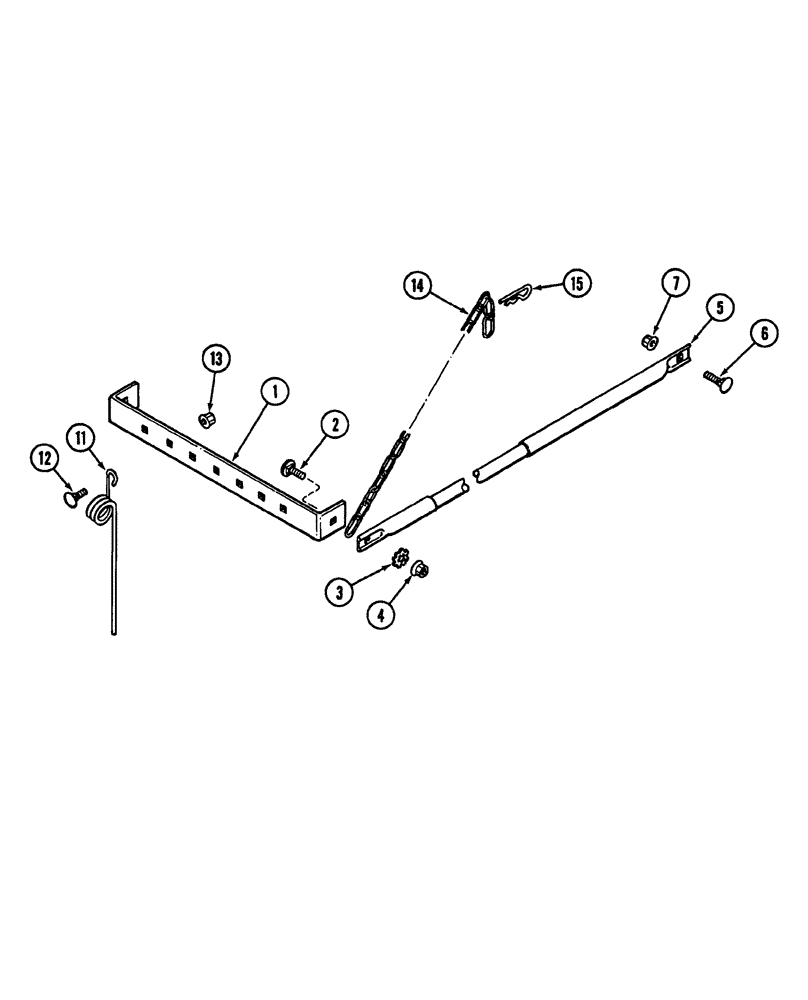

Запчасти Case IH 1200PT (L.50.D[11]) - SPRING TOOTH INCORPORATOR ATTACHMENT L - Field Processing

1

1263671C1

CHANNEL

rear

1шт.

2

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

3

86624178

LOCK WASHER,10.11mm ID x 25.02mm OD x 1.14mm Thk

2шт.

4

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

5

1279951C1

CABLE

spring tooth

2шт.

6

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

2шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

11

1261265C2

TOOTH

incorporator

7шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

7шт.

13

247780

SERRATED NUT,Flg, USR, 3/8"-16

7шт.

14

1263672C1

CHAIN (AG)

support

2шт.

15

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3 mm x 49 mm

2шт.
