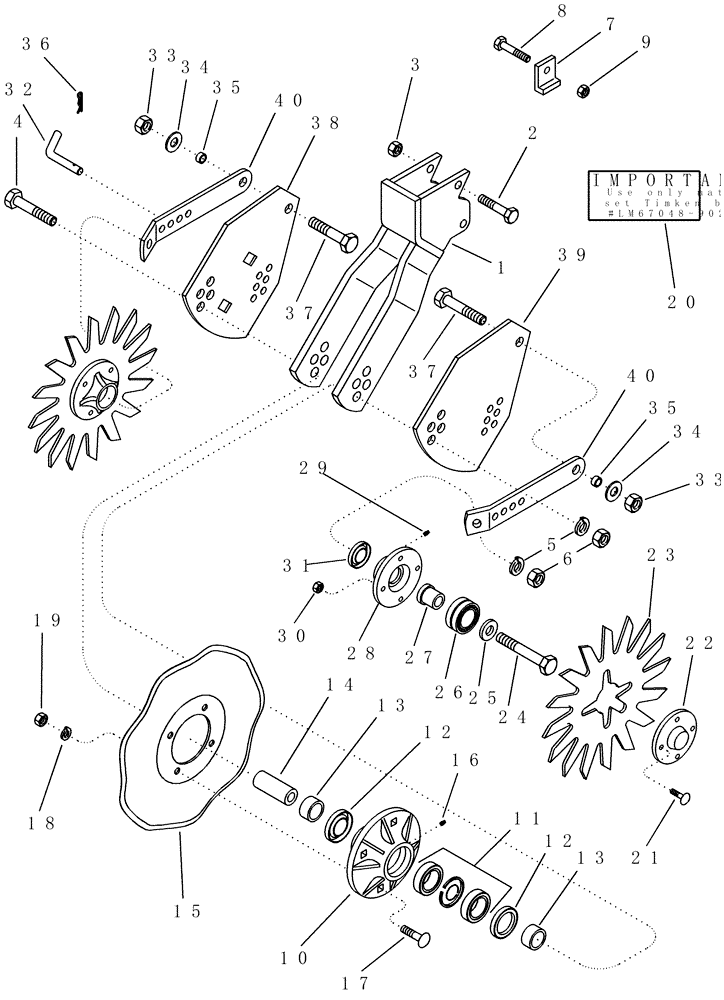

Запчасти Case IH 1200PT (L.50.D[05]) - COMBO DUAL WHEEL RESIDUE MANAGER WITH ROW UNIT COULTER ATTACHMENT (BSN CBJ0001892) L - Field Processing

1

129620A1

BRACKET

row mounted coulter, Serial Range: -CBJ022348

1шт.

1

87501828

BRACKET

row mounted coulter, Start Serial: CBJ022349

1шт.

2

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

3

86992215

LOCK NUT,1/2"-13, GC

2шт.

4

88264

BOLT,Hex, 5/8" - 11 x 6", Gr 5

1шт.

5

12034871

WASHER

5/8"

3шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

3шт.

7

129621A1

STOP

row unit

2шт.

8

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

9

88902

NUT,3/8"-16

2шт.

10

129627A1

HUB

coulter

1шт.

11

131439A1

BEARING SET,1.25" ID x 2.329" OD x 1.436"

bearing, Timken #LM67048-902A1

1шт.

12

652769R91

OIL SEAL

oil

2шт.

13

129625A1

SPACER

spindle

2шт.

14

129623A1

SPACER

spindle, long

1шт.

15

130800A1

BLADE

coulter - 8 wave

1шт.

16

87414

LUBE NIPPLE,1/4" - 28

1шт.

17

280502

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

19

280431

NUT,1/2"-13, G5

4шт.

20

129618A1

DECAL

important, use only "matched set" Timken bearing

1шт.

21

280562

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

8шт.

22

108130A1

HUB CAP

casting

2шт.

23

319278A1

LAND WHEEL

10" spoked

2шт.

24

319458A1

BOLT

5/8"-11 x 3, G5, "D" shaped

2шт.

25

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

1 1/2" x 21/32" x 3/16"

2шт.

26

108134A1

BALL BEARING,30mm ID x 55mm OD x 22.99mm W

double row

2шт.

27

108135A1

INSERT

trashmaster bearing

2шт.

28

108136A1

HUB

4 bolt

2шт.

29

87414

LUBE NIPPLE,1/4" - 28

2шт.

30

280736

NUT,5/16"-18, GC

8шт.

31

108137A1

SEAL,34.92mm ID x 47.7mm OD x 6.35mm Thk

bearing

2шт.

32

319316A1

PIVOT PIN

combo adjustment zp

2шт.

33

85700693

NUT,5/8" - 11, Gr C

2шт.

34

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

35

319317A1

BUSHING,16mm ID x 22.35mm OD x 14.29mm L

9/16"

2шт.

36

86000109

COTTER PIN

QA

2шт.

37

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

38

319273A1

BRACKET

adj W.A. combo RH

1шт.

39

319274A1

BRACKET

adj W.A. combo LH

1шт.

40

319285A1

ARM

combo

2шт.
