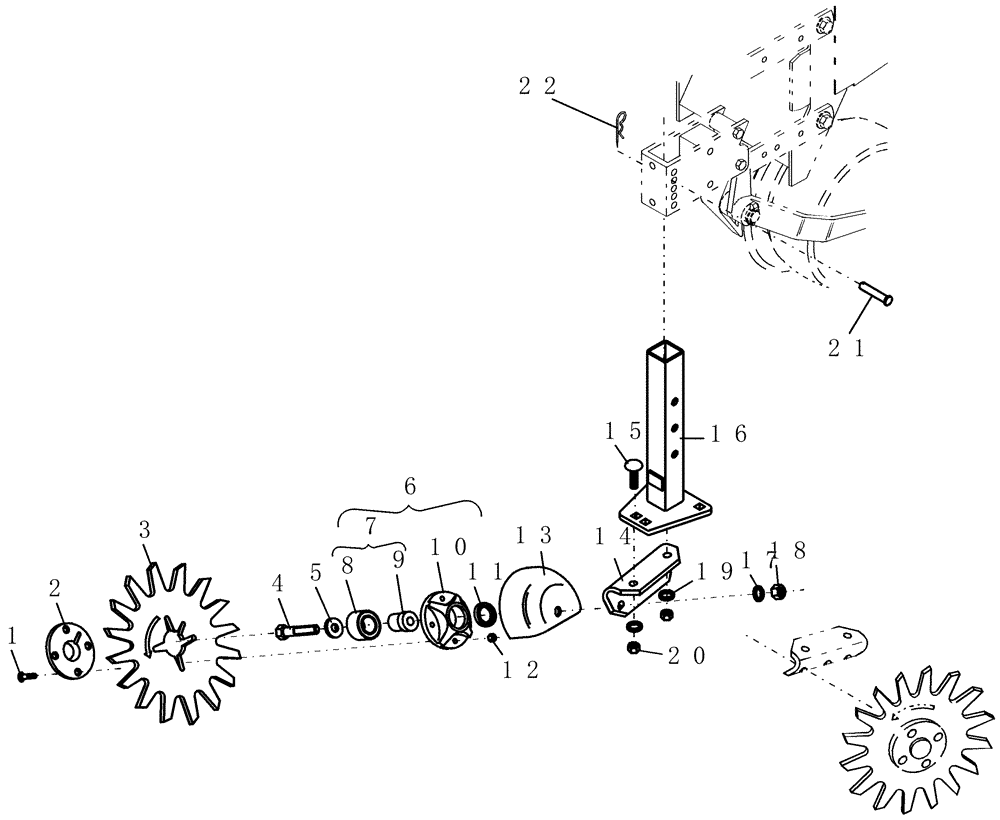

Запчасти Case IH 1200PT (L.50.D[03]) - SINGLE WHEEL RESIDUE MANAGER L - Field Processing

1

280562

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

4шт.

2

108130A1

HUB CAP

casting

1шт.

3

108131A3

WHEEL,330.2mm OD x 6.35mm Thk

residue manager 13" diameter tine

1шт.

4

319458A1

BOLT

5/8"-11 x 3, G5, "D" shaped

1шт.

5

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

1 1/2" x 21/32" x 3/16"

1шт.

6

108132A1

FLANGED BEARING

and bearing assembly

1шт.

7

108138A1

BEARING ASSY

with insert

1шт.

8

108134A1

BALL BEARING,30mm ID x 55mm OD x 22.99mm W

double row

1шт.

9

108135A1

INSERT

trashmaster bearing

1шт.

10

108136A1

HUB

4 bolt

1шт.

11

108137A1

SEAL,34.92mm ID x 47.7mm OD x 6.35mm Thk

bearing

2шт.

12

280736

NUT,5/16"-18, GC

4шт.

13

319179A1

SHIELD

RM combo

1шт.

14

319180A1

MOUNTING PARTS

wheel single wheel residue manager

1шт.

15

280502

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

16

319178A1

ARM

single wheel residue manager, Years: -01-DEC-07

1шт.

17

12034871

WASHER

5/8"

1шт.

16

87724048

ARM

single wheel residue manager, Start Year: 01-JAN-08

1шт.

18

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

20

280431

NUT,1/2"-13, G5

2шт.

21

147404C1

PIN,12.7mm OD x 83mm L

pointed, 1/2" x 3 1/4"

1шт.

22

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.
