(L.40.C[06]) - HYDRAULIC OIL COOLER 87432160

Запчасти Case IH 1200PT (L.40.C[06]) - HYDRAULIC OIL COOLER 87432160 L - Field Processing

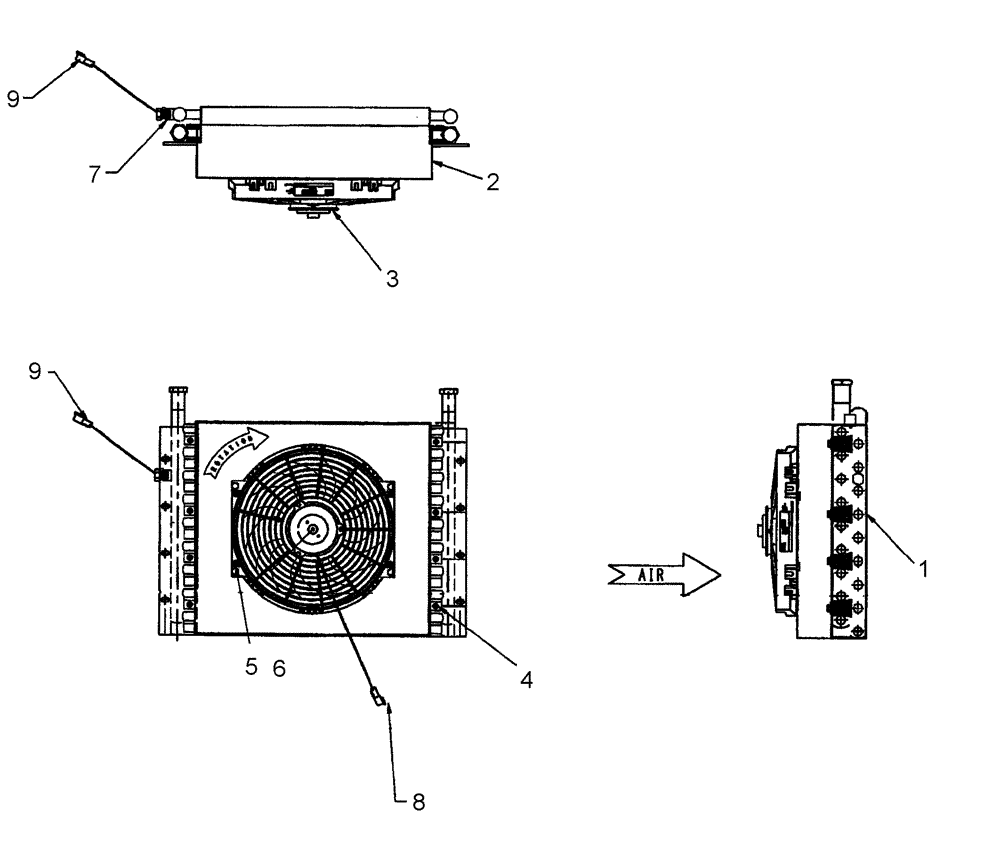

Схема запчастей Case IH 1200PT - (L.40.C[06]) - HYDRAULIC OIL COOLER 87432160 L - Field Processing
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87432160

OIL COOLER

PTO

1шт.

1

87450685

OIL COOLER

assembly ICC209

1шт.

2

87450684

SHROUD

cooler, oil assembly

1шт.

3

87450683

FAN

14" Pusher Fan

1шт.

4

NS

NOT SERVICED

Kit, Rubber Block

8шт.

5

NS

NOT SERVICED

Locknut

4шт.

6

NS

NOT SERVICED

Washer, Flat

4шт.

7

87502292

SWITCH

160º temperature

1шт.

8

NS

NOT SERVICED

3 Pin Connector

1шт.

9

NS

NOT SERVICED

2 Pin Connector

1шт.

Выбрано товаров: 10
