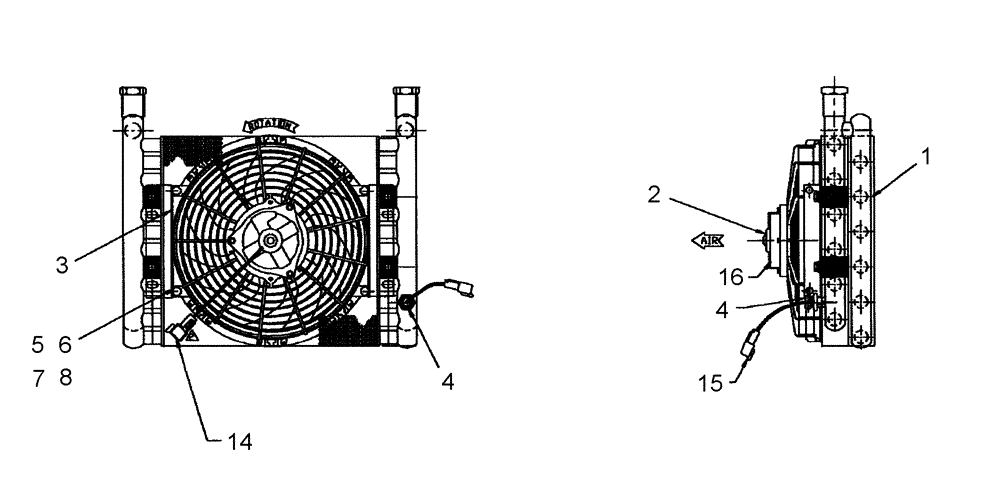

Запчасти Case IH 1200PT (L.40.C[05]) - HYDRAULIC OIL COOLER 409312A1 L - Field Processing

0

409312A1

OIL COOLER

2 pass with electric fan

1шт.

1

87437482

CORE

oil cooler

1шт.

2

87437481

FAN

assembly, oil cooler, 12"

1шт.

3

NS

NOT SERVICED

Bracket

2шт.

4

87502292

SWITCH

160º temperature

1шт.

5

NS

NOT SERVICED

Bracket "U"

4шт.

6

NS

NOT SERVICED

Nut

4шт.

7

NS

NOT SERVICED

BOLT

4шт.

8

NS

NOT SERVICED

WASHER, LOCK

4шт.

9

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

4шт.

10

NS

NOT SERVICED

Washer, Flat

4шт.

11

NS

NOT SERVICED

WASHER, LOCK

4шт.

12

NS

NOT SERVICED

Nut, TEE

4шт.

13

396980A1

PLUG

rubber, oil cooler

4шт.

14

NS

NOT SERVICED

DEUTSCH CONNECTOR

1шт.

15

NS

NOT SERVICED

2 Pin Connector

1шт.

16

NS

NOT SERVICED

12V DC MOTOR

1шт.
