(L.40.A[27]) - VALVE AND MOTOR ASSEMBLY 406039A1

Запчасти Case IH 1200PT (L.40.A[27]) - VALVE AND MOTOR ASSEMBLY 406039A1 L - Field Processing

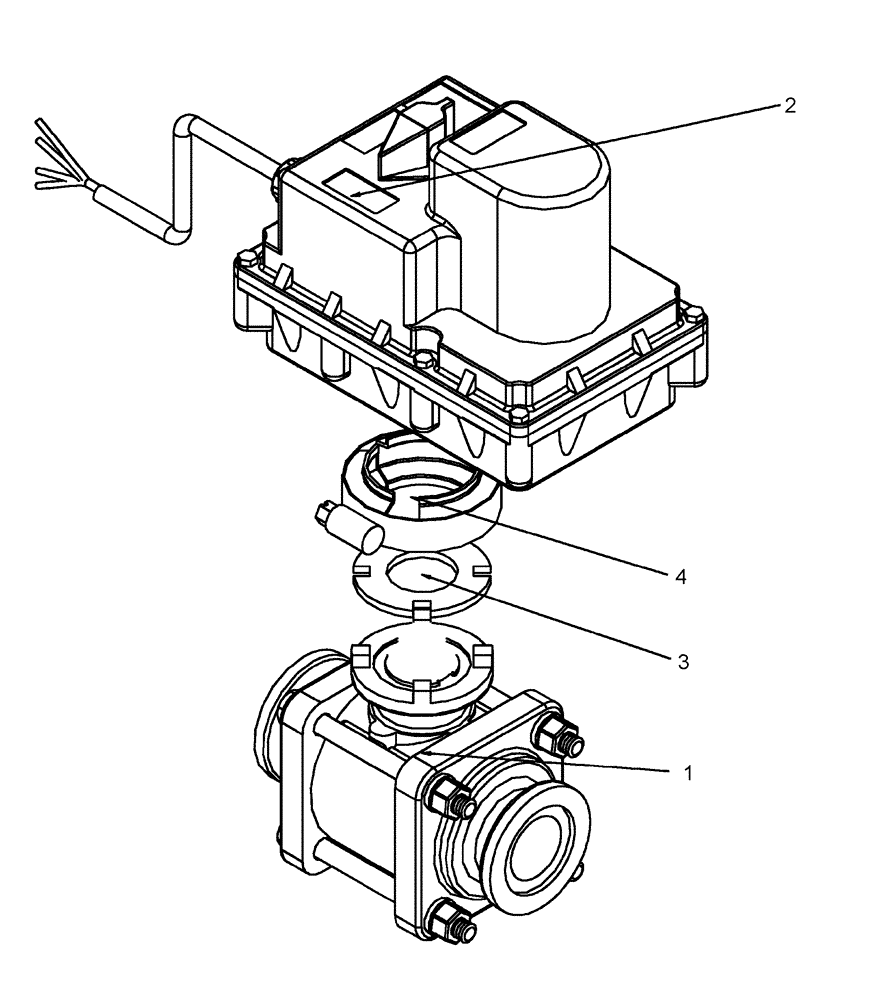

Схема запчастей Case IH 1200PT - (L.40.A[27]) - VALVE AND MOTOR ASSEMBLY 406039A1 L - Field Processing
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

406039A1

SOLENOID VALVE,1" Electric Valve

control 2 section fertilizer

1шт.

1

87453209

CONTROL VALVE

1" manifold sub assembly

1шт.

2

87453207

MOTOR

assembly, 3/4 sec. 4 wire

1шт.

3

87453210

O-RING,Electric Valve Flange Gasket

EPDM Banjo part no. MVE004

1шт.

4

406041A1

CLAMP,58.51mm

1" flange banjo #fc100

1шт.
