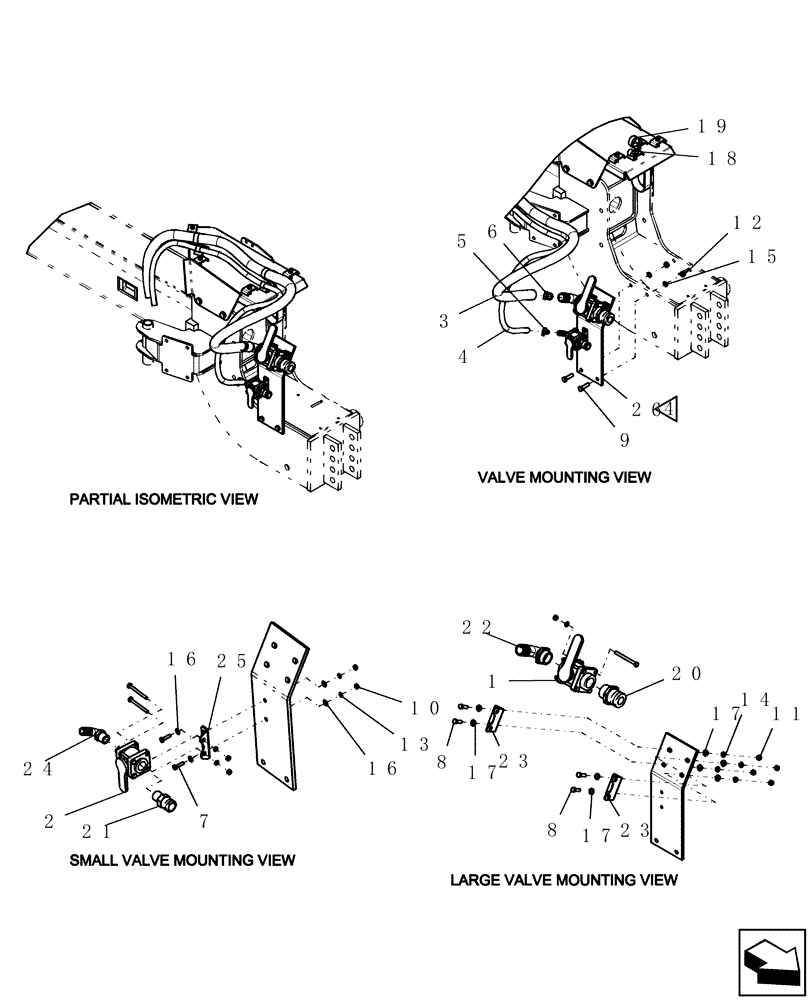

Запчасти Case IH 1200PT (L.40.A[25]) - LAYOUT LIQUID FERTILIZER TONGUE HOSE ROUTING 12 ROW, 16 ROW, 12/23 ROW, 16/31 ROW & 24 ROW - FRONT DETAILS (ASN CBJ025654) L - Field Processing

1

413087A1

CHECK VALVE

ball 1 1/2" ports

1шт.

2

413088A1

VALVE,3/4" Full Port Valve

ball 3/4" fp

1шт.

3

1264065C1

HOSE

pvc 1 1/2" id x 1 3/4" od x 1'

1шт.

4

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

5

9706921

HOSE CLAMP,12.7mm - 35mm

1шт.

6

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

7

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

8

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

9

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

11

9628503

NUT,3/8"-16, G5

4шт.

12

280431

NUT,1/2"-13, G5

2шт.

13

80682

LOCK WASHER,1/4"

2шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

16

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

17

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

18

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

19

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

20

86988594

ADAPTER,1-1/2" Male Adapter-1-1/2" Male Thread

1 1/2" 1 1/5" mpt

1шт.

21

86988602

COUPLING,3/4" Male Adapter-3/4" Male Thread

3/4" 3/4" mpt

1шт.

22

87419378

FITTING,1-1/2" Male Thread x 1-1/2" 90 Degree Hose Barb

1 1/2" mpt x 1 1/2" hb

1шт.

23

87419379

BRACKET

ball valve

2шт.

24

328179A1

ELBOW

fitting poly 90° 3/4" mpt 3/4" mpt

1шт.

25

87428024

BRACKET

3/4" ball valve

1шт.

26

87447084

BRACKET

ball valve, fertilizer

1шт.

Location for 36 gpm pump shown, 22 gpm pump mounted on opposite side

1шт.
