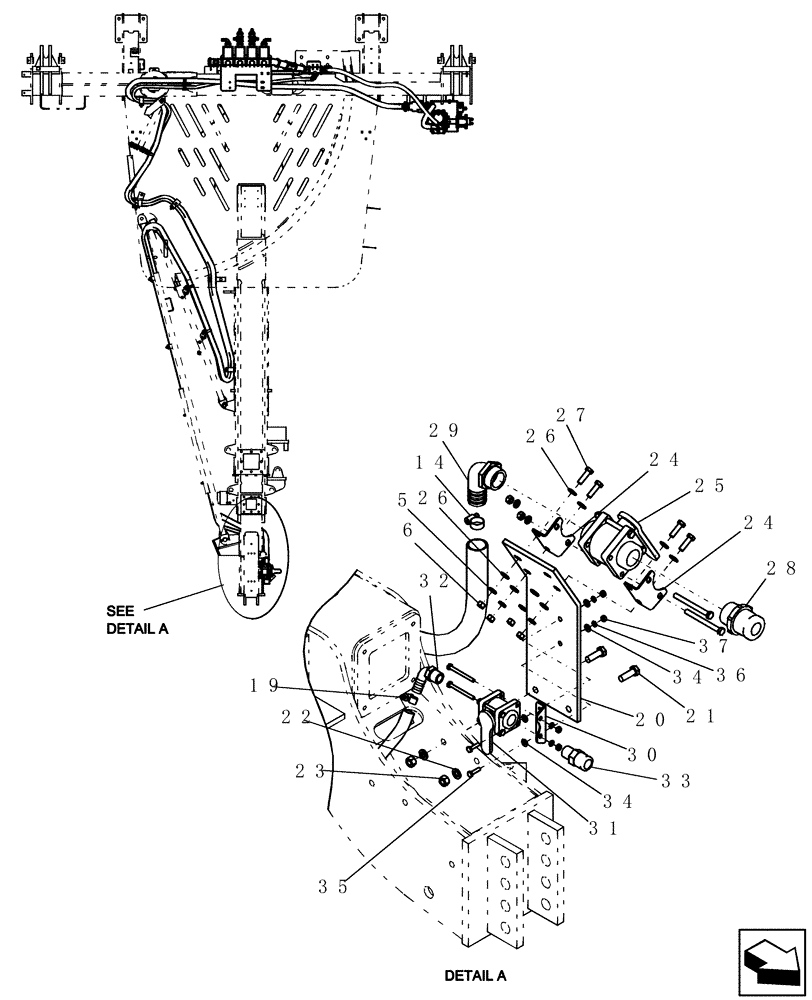

Запчасти Case IH 1200PT (L.40.A[24]) - LAYOUT LIQUID FERTILIZER TONGUE HOSE ROUTING 12 ROW, 16 ROW, 12/23 ROW, 16/31 ROW & 24 ROW - FRONT DETAILS (BTW CBJ022252 AND CBJ025653) L - Field Processing

5

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

6

9628503

NUT,3/8"-16, G5

6шт.

14

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

6шт.

19

9706921

HOSE CLAMP,12.7mm - 35mm

4шт.

20

87447084

BRACKET

ball valve, fertilizer

1шт.

21

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

23

280431

NUT,1/2"-13, G5

2шт.

24

87419379

BRACKET

ball valve

2шт.

25

413087A1

CHECK VALVE

ball 1 1/2" ports

1шт.

26

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

27

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

28

86988594

ADAPTER,1-1/2" Male Adapter-1-1/2" Male Thread

1 1/2" 1 1/5" mpt

1шт.

29

87419378

FITTING,1-1/2" Male Thread x 1-1/2" 90 Degree Hose Barb

1 1/2" mpt x 1 1/2" hb

1шт.

30

87428024

BRACKET

3/4" ball valve

1шт.

31

413088A1

VALVE,3/4" Full Port Valve

ball 3/4" fp

1шт.

32

328179A1

ELBOW

fitting poly 90° 3/4" mpt 3/4" mpt

1шт.

33

86988602

COUPLING,3/4" Male Adapter-3/4" Male Thread

3/4" 3/4" mpt

1шт.

34

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

35

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

36

80682

LOCK WASHER,1/4"

2шт.

37

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.
