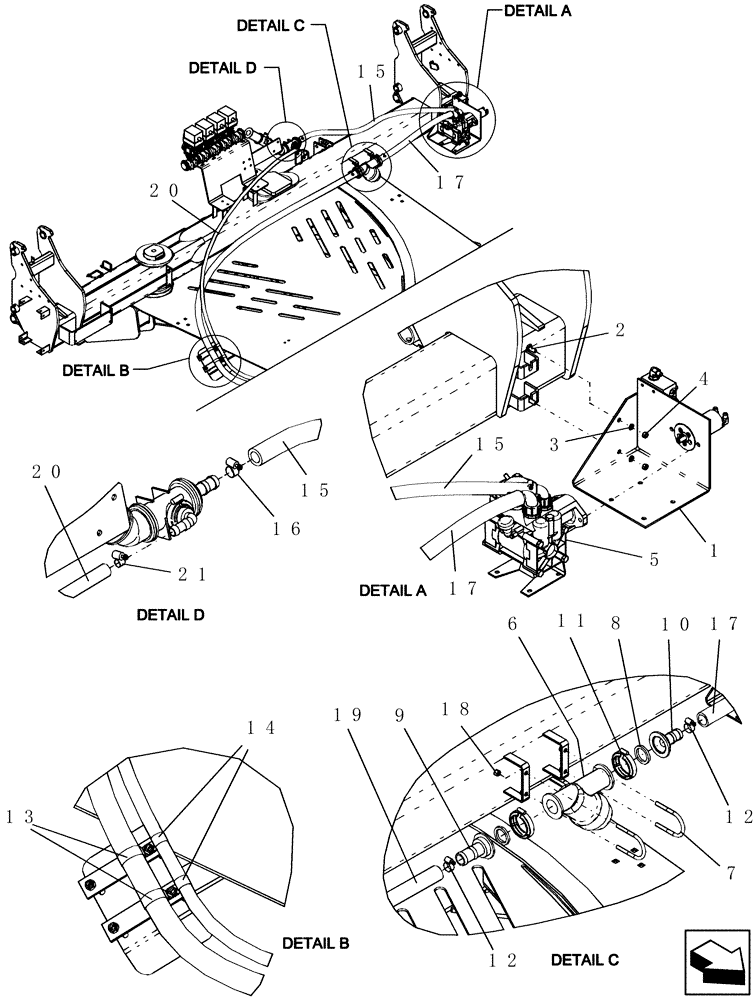

Запчасти Case IH 1200PT (L.40.A[21]) - LAYOUT LIQUID FERTILIZER TONGUE HOSE ROUTING, 12/23 ROW, 16/31 ROW & 24 ROW - REAR DETAILS (BSN CBJ022251) L - Field Processing

1

427973A1

BRACKET

pump mounting

1шт.

2

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

4

9628503

NUT,3/8"-16, G5

2шт.

5

403008A1

PUMP

diaphram low pressure

1шт.

5

87462811

SEAL KIT

pump o-ring complete 9910-KIT2365

1шт.

6

405798A1

STRAINER ELEMENT,AAH

fitting poly y 2" line 80 mesh

1шт.

6

87413266

SCREEN,80 Mesh Screen

Strainer 80 Mesh, Banjo Part# LS280, Blue

1шт.

6

87413267

GASKET,2" EPDM Gasket

strainer

1шт.

7

87413269

U-BOLT

ur 3/8"-16 x 2 1/2" wide x 4" deep ss with 1 3/4" thread

2шт.

8

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

2шт.

9

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1 1/2" hb Poly, Banjo

1шт.

10

86990856

FITTING,2" Flange x 1-1/4" Hose Barb

2" manifold x 1 1/4" barb

1шт.

11

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

2шт.

12

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

13

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

14

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

15

NSS

NOT SOLD SEPARAT

HOSE 1" X 51" , 1295MM

1шт.

Cut from 134329C3

1шт.

16

86536660

HOSE CLAMP,25mm - 44mm

2шт.

17

NSS

NOT SOLD SEPARAT

HOSE 1.25" X 25.6" , 650MM

1шт.

Cut from 86984447

1шт.

18

86985855

LOCK NUT

3/8"-16 ss 1-way, nylon insert

4шт.

19

NSS

NOT SOLD SEPARAT

HOSE 1.5" X 146" , 3708MM

1шт.

Cut from 86984447

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE .75" X 138" , 3505MM

1шт.

Cut from 86993466

1шт.

21

9706921

HOSE CLAMP,12.7mm - 35mm

1шт.
