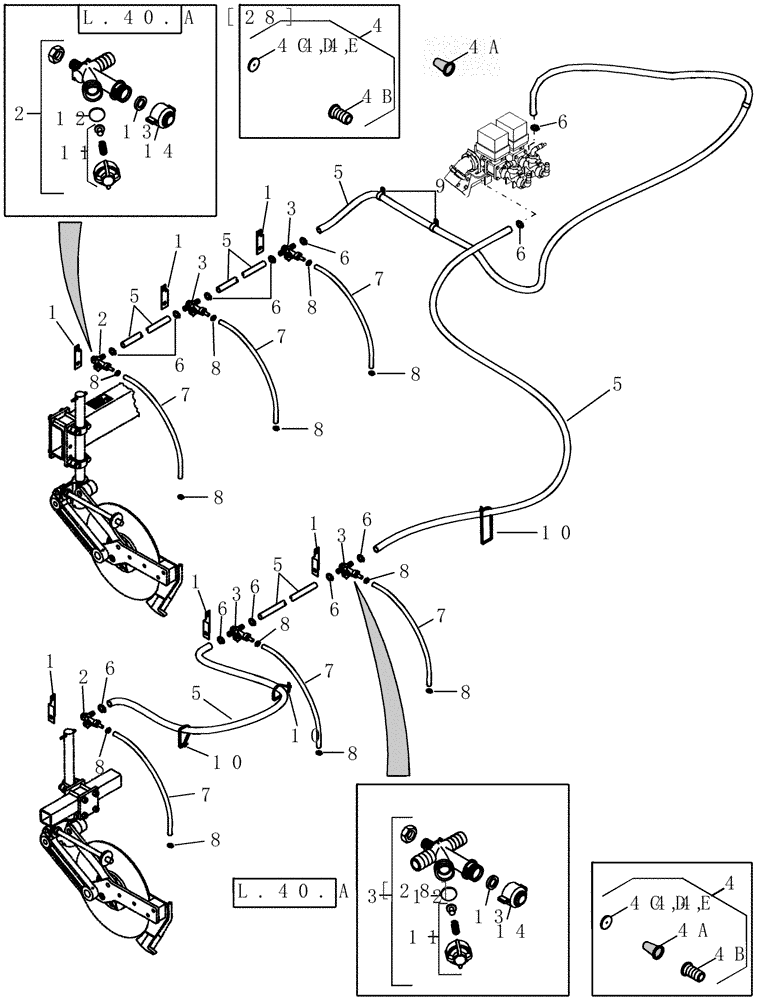

Запчасти Case IH 1200PT (L.40.A[17]) - LIQUID FERTILIZER SUPPLY HOSES WITH TANKS, 12 ROW & 16 ROW L - Field Processing

1

241016A1

BRACKET

nozzle mount

12шт.

12 row planter

1шт.

1

241016A1

BRACKET

nozzle mount

16шт.

16 row planter

1шт.

2

241019A1

NOZZLE

elbow assembly 3/4"

4шт.

Includes ref #11 - 14

1шт.

3

241017A1

NOZZLE

tee assembly 3/4"

8шт.

12 row planter

1шт.

Includes ref #11 - 14

1шт.

3

241017A1

NOZZLE

tee assembly 3/4"

12шт.

16 row planter

1шт.

Includes ref #11 - 14

1шт.

4

242564A2

KIT

orifice/screen

1шт.

4a

86985355

SCREEN

100 mesh nylon

1шт.

4b

86985352

FITTING

hose shank 1/2" barb

1шт.

4c

86983918

ORIFICE

flow regulator - 40

1шт.

4d

86983919

ORIFICE

flow regulator - 52

1шт.

4e

86983920

ORIFICE

flow regulator - 65

1шт.

4e

86983914

ORIFICE

flow regulator - 29

1шт.

4e

86983916

ORIFICE

flow regulator - 35

1шт.

4e

86983921

ORIFICE

flow regulator - 89

1шт.

5

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

6

9706921

HOSE CLAMP,12.7mm - 35mm

28шт.

12 row planter

1шт.

6

9706921

HOSE CLAMP,12.7mm - 35mm

36шт.

16 row planter

1шт.

7

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

1шт.

8

244358

HOSE CLIP,0.44" - 0.78"

24шт.

12 row planter

1шт.

8

244358

HOSE CLIP,0.44" - 0.78"

32шт.

16 row planter

1шт.

9

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

8шт.

10

112620A1

CABLE TIE

CABLE STRAP 34"

8шт.

11

86985365

CAP

spring retainer

1шт.

Part of Nozzle Assembly P/N 241019A1 and P/N 241017A1

1шт.

12

86985364

DIAPHRAGM

(Viton) Demco part no. DFDV

1шт.

Part of Nozzle Assembly P/N 241019A1 and P/N 241017A1

1шт.

13

86985363

CAP

flood jet (red)

1шт.

Part of Nozzle Assembly P/N 241019A1 and P/N 241017A1

1шт.

14

86985362

GASKET

Demco part no DFGE

1шт.

Part of Nozzle Assembly P/N 241019A1 and P/N 241017A1

1шт.
