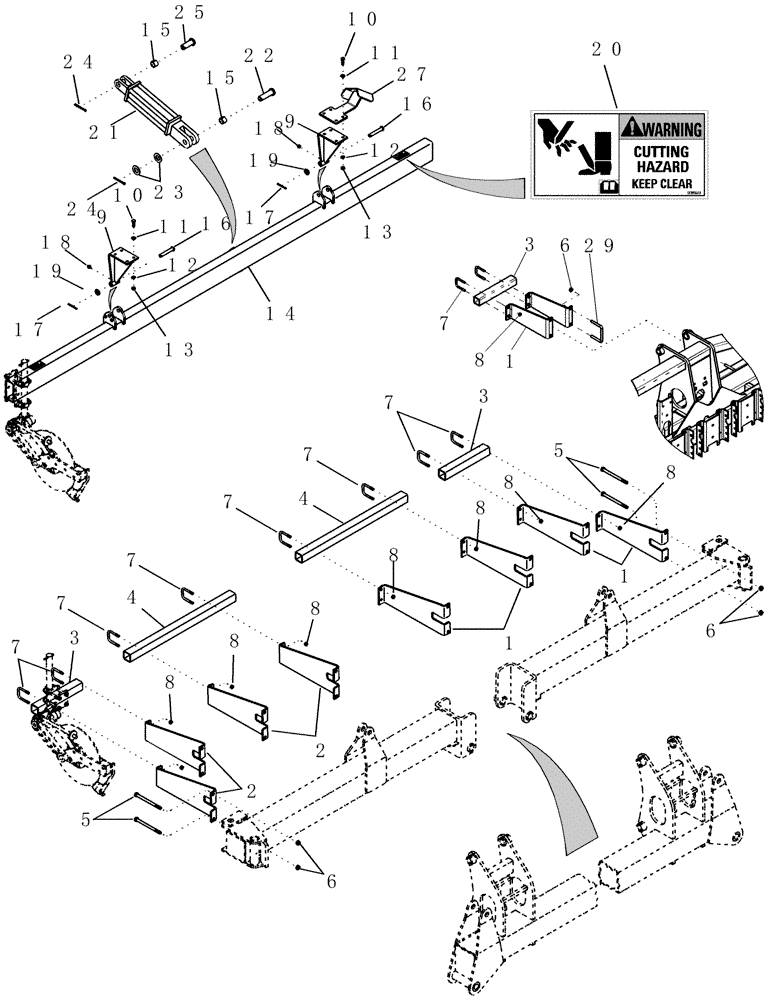

Запчасти Case IH 1200PT (L.40.A[15]) - LIQUID FERTILIZER SYSTEM MOUNTING W/TANKS 12 ROW, 16 ROW, 12/23 & 16/31 ROW L - Field Processing

1

427753A1

BRACKET

LH fert opener 22"

4шт.

12 row planter

1шт.

1

427753A1

BRACKET

LH fert opener 22"

6шт.

16 row planter

1шт.

1

441217A1

BRACKET

fert opener LH

3шт.

12/23 row and 16/31 row planters

1шт.

2

427755A1

BRACKET

RH fert opener 22"

4шт.

12 row planter

1шт.

2

427755A1

BRACKET

RH fert opener 22"

6шт.

16 row planter

1шт.

2

441219A1

BRACKET

fert opener RH

3шт.

12/23 row and 16/31 row planters

1шт.

3

258417A1

TUBE,405 mm Length

2 1/2" SQ x 410 mm

2шт.

4

314323A1

TUBE,965 mm Length

2 1/2 sq x 965 mm

2шт.

12 row and 12/23 row planters

1шт.

4

1344526C1

TUBE,1702 mm Length

2 1/2" square x 67" x 3/16 wall

2шт.

16 row and 16/31 row planters

1шт.

5

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

16шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

16шт.

7

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

8шт.

8

280431

NUT,1/2"-13, G5

16шт.

9

427995A1

PIVOT

fertilizer mount, Serial Range: -CBJ0018244

2шт.

9

87421636

PIVOT

fertilizer mount, Start Serial: CBJ0018245

2шт.

10

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

8шт.

11

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531" x 1.062" x .095" HTS

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

13

9803187

NUT,1/2"-13, G8

8шт.

14

87414371

TUBE

fertilizer bar - carrier frame with decals, Serial Range: -CBJ0018244

1шт.

Includes decal 413669A1

1шт.

14

87426562

TUBE

fert bar - carrier frame, Start Serial: CBJ0018245

1шт.

Includes decal 413669A1

1шт.

14

413669A1

WARNING DECAL

Cutting Hazard

1шт.

14

87527150

WARNING DECAL

Cutting Hazard French

1шт.

15

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

16

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

17

88182

COTTER PIN,1/4" OD x 2" L

2шт.

18

87414

LUBE NIPPLE,1/4" - 28

2шт.

19

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

2шт.

20

413669A1

WARNING DECAL

Cutting Hazard

2шт.

Part of Tube P/N 87414371

1шт.

20

87527150

WARNING DECAL

Cutting Hazard French

2шт.

21

429836A1

HYDRAULIC CYLINDER

HTI 2 1/2" x 8", Serial Range: -CBJ0018183

1шт.

21

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins, Start Serial: CBJ0018184

1шт.

22

86632568

HEADED PIN,1" x 3 1/2", G5

1шт.

23

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

3шт.

24

80752

COTTER PIN,1/4" x 2 1/2"

2шт.

25

86632567

HEADED PIN,30.14mm OD x 66.55mm L

, Serial Range: -CBJ0001410

1шт.

25

87023161

HEADED PIN,1" x 3"

, Start Serial: CBJ0001411

1шт.

27

435795A1

SUPPORT

assembly, hose holder, Serial Range: -CBJ022251

1шт.

16 row, 12/23 row and 16/31 row planters

1шт.

29

817740C1

U-BOLT

us 5/8"-11 5"w 4 7/32"d G5 1 1/2" thread

6шт.

12/23 row and 16/31 row planters

1шт.
