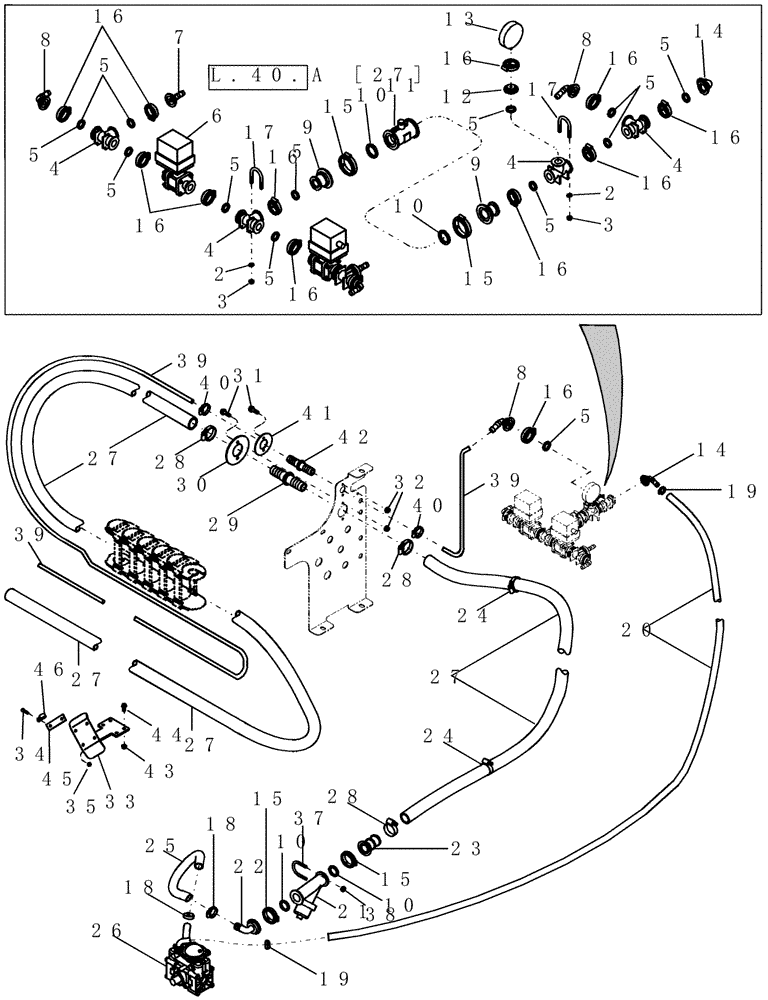

Запчасти Case IH 1200PT (L.40.A[09]) - LIQUID FERT SYSTEM W/TRACTOR MOUNTED TANKS - FITTINGS & VALVES (BSN CBJ022251) L - Field Processing

1

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

2

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

3

9628503

NUT,3/8"-16, G5

2шт.

4

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

5шт.

5

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

14шт.

6

406039A1

SOLENOID VALVE,1" Electric Valve

control 2 section fertilizer

2шт.

Refer to Figure L.40.A [27] for details

1шт.

7

408351A1

FITTING,1" Flange x 3/4" Hose Barb

poly 1" manifold x 3/4" hb

2шт.

8

405785A1

ELBOW

poly 90º 1" flange x 3/4" hb

3шт.

9

408349A1

REDUCER,2" Port x 1" Reducer Flange

poly str 2 flange 1" flange

2шт.

10

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

4шт.

11

406037A2

METER

flow liquid fertilizer

1шт.

12

405793A1

PLUG,1" Flange Plug with 1/4" FPT

poly 1 manifold x 1/4" fp

1шт.

13

434048A1

GAUGE

pressure 0-60 PSI SSTL ammonia

1шт.

14

435587A1

FITTING,1" Flange x 1" 90 Degree Hose Barb Elbow

90º 1" manifold 1" hb

1шт.

15

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

4шт.

16

406041A1

CLAMP,58.51mm

1" flange banjo #fc100

14шт.

17

409729A1

U-BOLT

BOLT "U" ur 3/8"-16 11/16" w assembly 2 3/4" d, with 1 5/16" thread

2шт.

18

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

19

86536660

HOSE CLAMP,25mm - 44mm

2шт.

20

408355A1

HOSE,1.00" ID x 10.00"

Rubber

1шт.

21

405798A1

STRAINER ELEMENT,AAH

fitting poly y 2" line 80 mesh

1шт.

21

87413266

SCREEN,80 Mesh Screen

Strainer 80 Mesh, Banjo Part# LS280, Blue

1шт.

21

87413267

GASKET,2" EPDM Gasket

strainer

1шт.

22

405783A1

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

poly 90º 2" flange x 1 1/4" hose barb

1шт.

23

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1 1/2" hb Poly, Banjo

1шт.

24

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

25

86984447

HOSE,1.25" ID BULK x 100.00'

1шт.

26

403008A1

PUMP

diaphram low pressure

1шт.

26

87462811

SEAL KIT

pump o-ring complete 9910-KIT2365

1шт.

27

1264065C1

HOSE

pvc 1 1/2" id x 1 3/4" od x 1'

1шт.

28

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

3шт.

29

412686A1

FITTING,1-1/2" x 1-1/2" Hose Barb

poly str 1 1/2" hb x 1 1/2" hb

1шт.

30

427977A1

DISC

retaining plate 1 1/2 barb

1шт.

31

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

4шт.

32

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

33

435795A1

SUPPORT

assembly, hose holder

1шт.

34

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

4шт.

35

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

36

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

37

86984219

U-BOLT

ur 3/8" 2 11/16"w 3 3/8"d SS, 1 1/16" thread, Years: -01-AUG-07

2шт.

37

87413269

U-BOLT

ur 3/8"-16 x 2 1/2" wide x 4" deep ss with 1 3/4" thread, Start Year: 01-AUG-07

1шт.

38

86985855

LOCK NUT

3/8"-16 ss 1-way, nylon insert

4шт.

39

86987971

HOSE,0.75" ID x 444.00"

1шт.

Cut from bulk roll 86993466

1шт.

39

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

40

9706921

HOSE CLAMP,12.7mm - 35mm

2шт.

41

427979A1

DISC

retaining plate 1 1/2 barb

1шт.

42

412685A1

FITTING,3/4" x 3/4" Hose Barb

poly str 3/4"hb 3/4"hb

1шт.

43

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

44

84209

BOLT,Hex Serr Flg, 1/2" x 1 1/4"

4шт.

45

436047A1

BRACKET

hose holder

2шт.

46

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

4шт.
