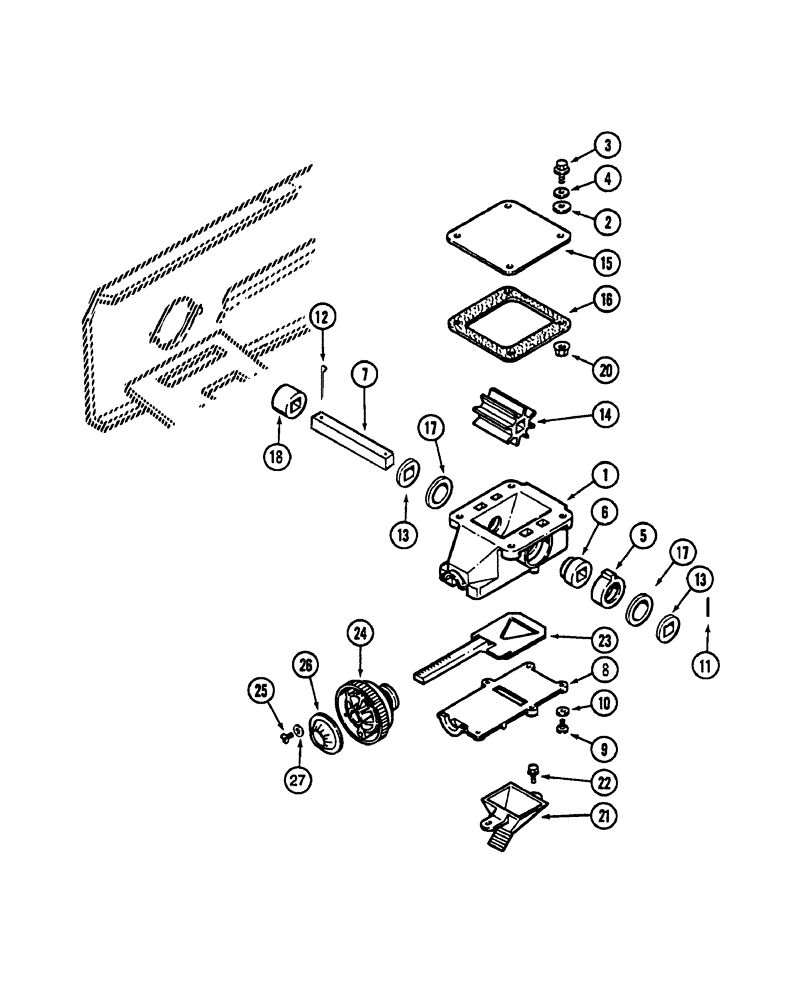

Запчасти Case IH 1200PT (L.40.A[03]) - GRANULAR CHEMICAL ATTACHMENT, RATE CONTROL (BSN CBJ0018120) L - Field Processing

1

137043C1

HOUSING

upper

1шт.

2

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper

4шт.

3

86624115

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

4шт.

4

86624137

WASHER,0.27" ID x 0.5" OD x 0.06" Thk

4шт.

5

134293C1

HOUSING

bushing

2шт.

6

134297C1

BUSHING

bearing

2шт.

7

134254C2

BAR

1шт.

8

137055C1

RETAINER

gauge control

1шт.

9

86624118

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

6шт.

10

86624136

WASHER,0.2" ID x 0.47" OD x 0.05" Thk

6шт.

11

86624058

LOCK PIN,5/32" x 1", Slotted

1шт.

12

80755

COTTER PIN,1/8" OD x 1" L

1шт.

13

134253C1

SQ HOLE WASHER

square hole, 19/32 x 1 1/4 x 1/16

2шт.

14

134296C1

ROLL

feeding

1шт.

15

137186C1

COVER

plate gc

1шт.

16

134298C1

GASKET

hopper

1шт.

17

86624164

WASHER,0.89" ID x 1.25" OD x 0.04" Thk

2шт.

18

134290C1

SPACER

coupling

1шт.

20

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

21

137044C1

NECK FILLER

funnelok

1шт.

22

86624119

SELF-TAP SCREW,Hex Wash Hd, #12 x 3/8"

2шт.

23

134286C1

GAUGE

rate control

1шт.

24

134287C1

KNOB

gauge

1шт.

25

86624116

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

2шт.

26

134294C1

DIAL

decal handle disc

1шт.

27

86624136

WASHER,0.2" ID x 0.47" OD x 0.05" Thk

2шт.
