Запчасти Case IH 1200PT (L.40.A[01]) - GRANULAR CHEMICAL ATTACHMENT, HOPPER AND SUPPORT (BSN CBJ0018120) L - Field Processing

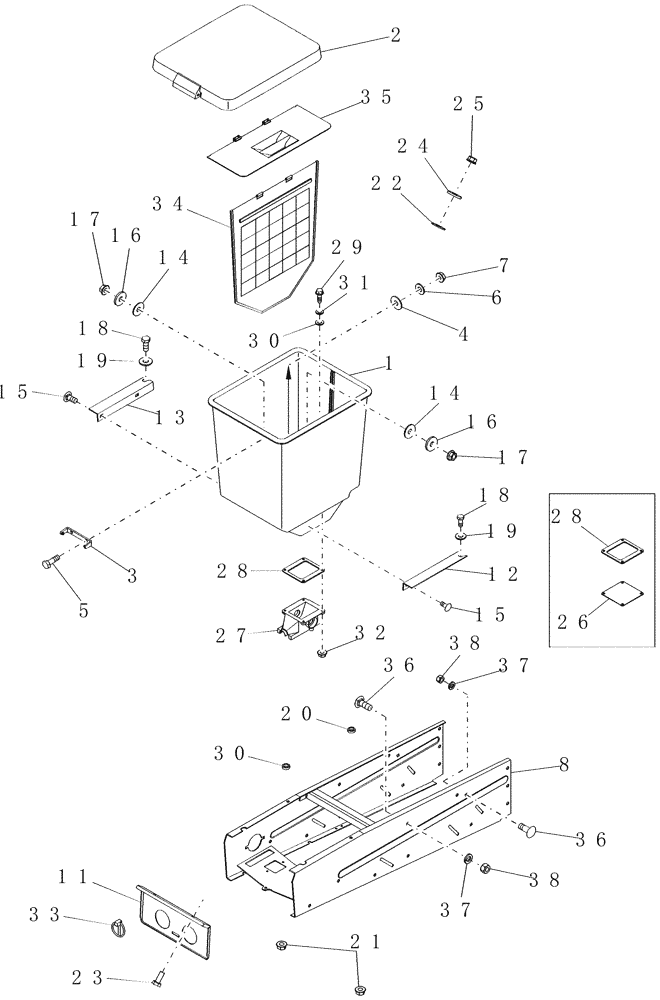

![Схема запчастей Case IH 1200PT - (L.40.A[01]) - GRANULAR CHEMICAL ATTACHMENT, HOPPER AND SUPPORT (BSN CBJ0018120) L - Field Processing](https://partsell.ru/storage/images/caseih/1314294.png)
№
Артикул
Название
Примечание
Количество
1
323736A2
HOPPER
granular chemical
1шт.
2
409683A1
COVER
hopper, granular chemical
1шт.
3
333790A1
BRACKET
lid mounting
1шт.
4
134291C1
WASHER,7.1mm ID x 14mm OD x 1.52mm Thk
hopper
2шт.
5
80043233
SCREW
Hex, M8 x 20, 10.9
2шт.
6
86624184
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
8
87413585
FRAME
kit, granular chemical, 1200 Series
1шт.
11
134353C1
SUPPORT
hopper, Years: -01-SEP-08
1шт.
12
134327C2
ANGLE
support, hopper RH
1шт.
11
84149122
SUPPORT
hopper with tab, Start Year: 01-SEP-08
1шт.
13
134326C2
ANGLE
support, hopper LH
1шт.
14
134289C1
RUBBER WASHER
rubber
4шт.
15
280497
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd
4шт.
16
86624143
WASHER,0.34" ID x 1" OD x 0.12" Thk
4шт.
17
145458
SERRATED NUT,5/16"-18 GR 5 ZND
4шт.
20
87417490
WASHER,8.48mm ID x 12.7mm OD x 4mm Thk
.334" x .5" x .157"
2шт.
21
145458
SERRATED NUT,5/16"-18 GR 5 ZND
2шт.
22
134289C1
RUBBER WASHER
rubber
2шт.
24
86624143
WASHER,0.34" ID x 1" OD x 0.12" Thk
2шт.
25
145458
SERRATED NUT,5/16"-18 GR 5 ZND
2шт.
26
137186C1
COVER
plate gc
1шт.
27
137043C1
HOUSING
upper
1шт.
28
134298C1
GASKET
hopper
2шт.
29
86624115
SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"
8шт.
30
134291C1
WASHER,7.1mm ID x 14mm OD x 1.52mm Thk
hopper
8шт.
31
86624137
WASHER,0.27" ID x 0.5" OD x 0.06" Thk
8шт.
32
523282
SERRATED NUT,Flg, USR, 1/4"-20
4шт.
33
A33497
LINCH PIN,4.76mm OD Pin
Klik
1шт.
34
322859A3
DIVIDER
hopper
1шт.
35
333789A1
COVER
hopper divider
1шт.
36
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
6шт.
37
80680
LOCK WASHER,3/8 0.381 CST ZND
6шт.
38
247780
SERRATED NUT,Flg, USR, 3/8"-16
6шт.
Выбрано товаров: 37
