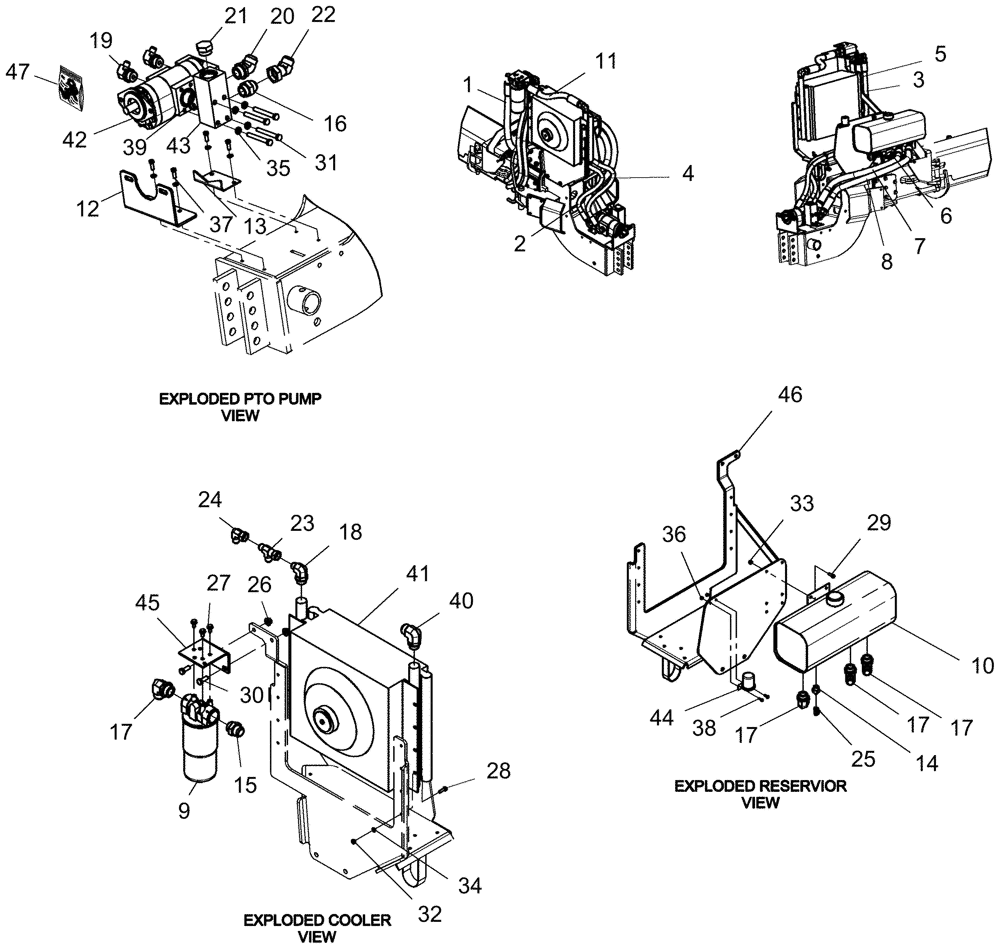

Запчасти Case IH 1200PT (L.20.C[04]) - 36 GPM PUMP LAYOUT (ASN CBJ025654) L - Field Processing

1

87438126

HYDRAULIC HOSE,31.50 mm ID x 1350.00 mm, SAE 100R4 Class 4

1 1/4" x 53" fl

1шт.

2

87448895

HYDRAULIC HOSE,16mm ID x 13470mm L, SAE 100R17

5/8" x 530" fl

1шт.

Bulk fill - supply

1шт.

16 row, 16/31 row and 24 row planters

1шт.

2

87457426

HYDRAULIC HOSE

5/8" x 484" fl

1шт.

12 row and 12/23 row planters

1шт.

Bulk fill - supply

1шт.

3

87448898

HYDRAULIC HOSE,19mm ID x 12580mm L, SAE 100R17

3/4" x 495" fl

1шт.

Bulk fill - return

1шт.

16 row, 16/31 row and 24 row planters

1шт.

3

87454628

HYDRAULIC HOSE

3/4" x 452" fl

1шт.

12 row and 12/23 row planters

1шт.

Bulk fill - return

1шт.

4

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

LH multivalve - supply

1шт.

16 row, 12/23 row and 16/31 row planters

1шт.

4

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

12 row and 12/23 row planters

1шт.

5

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

LH multivalve - return

1шт.

16 row, 16/31 row and 24 row planters

1шт.

5

87454636

HYDRAULIC HOSE

3/4" x 188" fl

1шт.

LH multivalve - return

1шт.

12 row and 12/23 row planters

1шт.

6

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

LH fan - case drain

1шт.

16 row, 16/31 row and 24 row planters

1шт.

6

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

12 row and 12/23 row planters

1шт.

LH fan - case drain

1шт.

7

426727A1

HYDRAULIC HOSE,31.5mm ID x 1880mm L, SAE 100R4

1 1/4" x 74" fl

1шт.

8

426727A1

HYDRAULIC HOSE,31.5mm ID x 1880mm L, SAE 100R4

1 1/4" x 74" fl

1шт.

9

87432158

FILTER ASSY

filter and head

1шт.

10

87432193

RESERVOIR

6.5 gallon

1шт.

11

294178A1

HYDRAULIC HOSE

1 1/4" x 25.8" fl

1шт.

12

87462892

BRACKET

PTO pump storage

1шт.

13

87462894

BRACKET

saddle PTO pump storage

1шт.

14

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

1шт.

15

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

1шт.

16

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

1шт.

17

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

4шт.

18

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

19

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

2шт.

20

218-5141

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

1шт.

21

86624101

PLUG,Hex Hd, 1 5/8"-12 ORB

1шт.

22

218-5177

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Female JIC

1шт.

23

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

24

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

25

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

26

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

27

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

3шт.

28

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

29

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

30

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

31

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

32

9635082

NUT,5/16" - 18, Gr 5

8шт.

33

9628503

NUT,3/8"-16, G5

4шт.

34

80681

LOCK WASHER,5/16"

8шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

36

280129

NUT,1/4"-20

2шт.

37

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

38

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

39

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

40

87010672

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/16"-12, O-Ring

1шт.

41

87432160

OIL COOLER

PTO

1шт.

42

87432748

PUMP

2 section

1шт.

87432748R

REMAN-HYD PUMP

1200PT Pivot Transport ASM, ASN CBJ025654,

1шт.

87432748C

CORE-HYDRAULIC PUMP

Return Number

1шт.

43

303848A1

MANIFOLD

pump inlet

1шт.

44

382110A1

CONTACT HOUSING

cap, Cole Hersee seven pin

1шт.

45

127715A5

SUPPORT

filter assembly

1шт.

46

87462890

BRACKET

mount, 36 gpm cooler/reservoir

1шт.

47

310572A1

SEAL KIT

Pump Seal

1шт.
