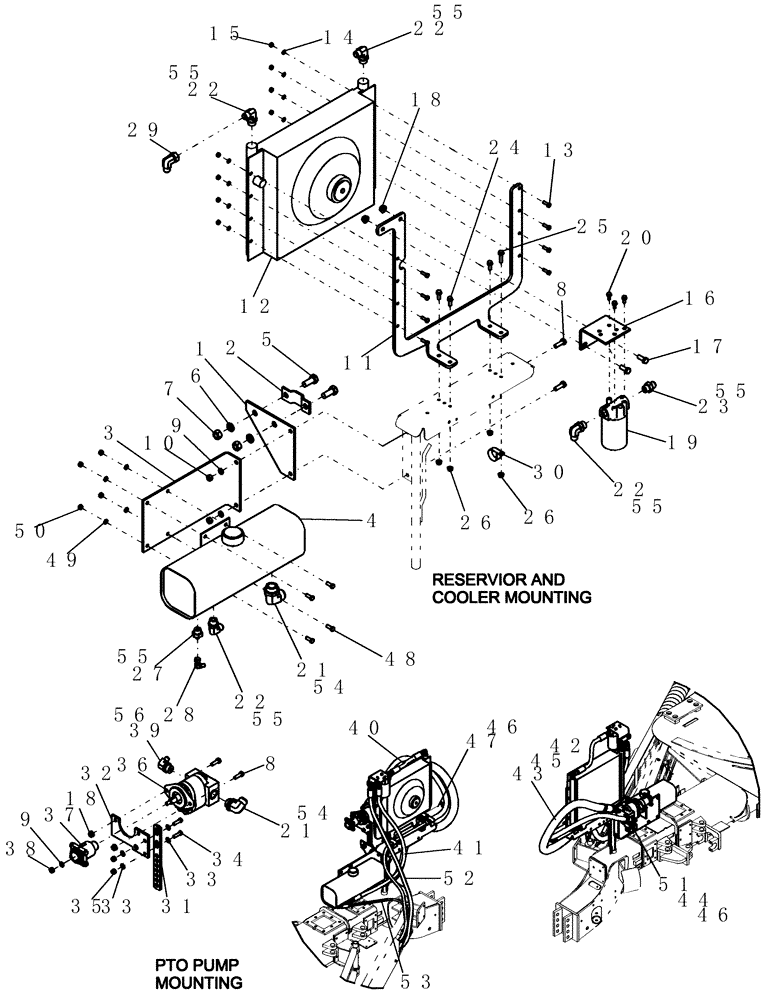

Запчасти Case IH 1200PT (L.20.C[02]) - PTO PUMP MOUNTING (ASN CBJ022057) L - Field Processing

1

86991597

MOUNTING PLATE

PTO

1шт.

2

137098C1

SUPPORT

bracket, pump mounting

1шт.

3

441103A1

SUPPORT

reservoir & filter

1шт.

4

87439695

RESERVOIR, HYDRAULIC

4.5 us gal

1шт.

4

129575A1

CAP

breather with dipstick

1шт.

Not Shown

1шт.

4

87435908

SCREEN

reservoir

1шт.

Not Shown

1шт.

5

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

6

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

7

280954

NUT,3/4"-10, G5

2шт.

8

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

10

280431

NUT,1/2"-13, G5

2шт.

11

441107A1

BRACKET

PTO cooler mounted

1шт.

12

400901A1

COOLER ASSY.

hydraulic oil, Years: -01-JUL-07

1шт.

12

87618983

COOLER ASSY.

pusher, Start Year: 01-AUG-07

1шт.

13

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

14

80681

LOCK WASHER,5/16"

8шт.

15

9635082

NUT,5/16" - 18, Gr 5

8шт.

16

127715A5

SUPPORT

filter assembly

1шт.

17

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

18

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

19

87404510

FILTER

spin on element

1шт.

20

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

21

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

2шт.

Includes O-Ring

1шт.

22

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

4шт.

Includes O-Ring

1шт.

23

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

Includes O-Ring

1шт.

24

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

3шт.

25

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

1шт.

26

87019671

SERRATED NUT,Flg, USR, 3/8"-16, G8

6шт.

27

86624009

HYD CONNECTOR,9/16"-18, 37 Degree x 1 1/16"-12, O-Ring

1шт.

Includes O-Ring

1шт.

28

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

29

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

30

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

31

437631A1

BRACKET

adjusting

1шт.

32

437630A1

PLATE

pump mounting

1шт.

33

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

4шт.

34

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

35

86637736

NUT,7/16"-14, GB

2шт.

36

293243A1

PUMP

PTO 5.84 in3/rev

1шт.

36

293243A1R

REMAN-HYD PUMP

Remanufactured Hydraulic PTO Pump

1шт.

36

293243A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87619629R

REMAN-HYD PUMP

1200PT ASN CBJ022057 (11/01-7/08), Reman For New P/N 293243A1

1шт.

87619629C

CORE-HYDRAULIC PUMP

Return Number

1шт.

37

1958268C1

COUPLING

1 3/4"

1шт.

38

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

39

87024324

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 5/16"-12, O-Ring

1шт.

Includes O-Ring

1шт.

40

86985197

HYDRAULIC HOSE

3/4" x 21" fl

1шт.

41

86985198

HYDRAULIC HOSE

3/4" x 57" fl

1шт.

42

426727A1

HYDRAULIC HOSE,31.5mm ID x 1880mm L, SAE 100R4

1 1/4" x 74" fl

1шт.

12 row, 16 row, 12/23 row, 16/31 row and 24 row planters

1шт.

43

87438317

HOSE PROTECTION,2.50" ID x 44.00"

Sleeve, Years: -01-JUN-06

1шт.

43

87458128

PROTECTIVE SLEEVE,64.5mm ID x 1117.6mm L

sleeve, hyd protective 2 1/2" x 44", Start Year: 01-JUL-06

1шт.

44

87438316

HOSE PROTECTION,1.50" ID x 44.00"

Sleeve, Years: -01-JUN-06

1шт.

44

87458127

SLEEVE

sleeve, hyd protective 1 1/2" x 44", Start Year: 01-JUL-06

1шт.

45

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

46

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

47

87438315

HOSE PROTECTION,1.50" ID x 18.00"

Sleeve, Years: -01-JUN-06

2шт.

47

87458126

HOSE

sleeve, hyd protective 1 1/2" x 18", Start Year: 01-JUL-06

2шт.

48

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

49

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

50

9628503

NUT,3/8"-16, G5

4шт.

51

87454625

HYDRAULIC HOSE

5/8" x 409" fl

1шт.

12 row and 12/23 row planters

1шт.

51

87454228

HYDRAULIC HOSE,16mm ID x 11950mm L, SAE 100R17

5/8" x 470" fl

1шт.

16 row, 16/31 row and 24 row planters

1шт.

52

87454626

HYDRAULIC HOSE

3/4" x 375" fl

1шт.

12 row and 12/23 row planters

1шт.

52

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

3/4" x 442" fl

1шт.

16 row, 16/31 row and 24 row planters

1шт.

53

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

1шт.

12 row and 12/23 row planters

1шт.

53

1284300C1

HYDRAULIC HOSE

3/8" x 380" fl

1шт.

16 row, 16/31 row and 24 row planters

1шт.

54

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

55

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

56

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
