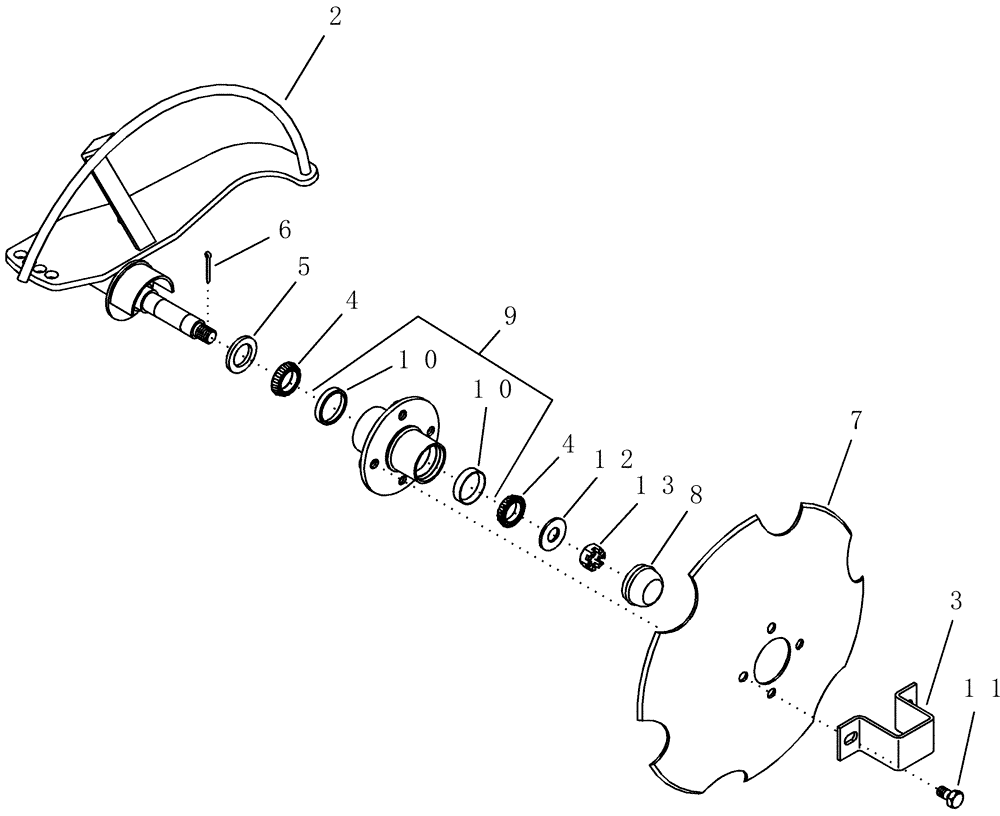

Запчасти Case IH 1200PT (L.10.J[02]) - DISC ASSEMBLY, ROW MARKER L - Field Processing

2

87410959

GUARD

disc endmarker RH

1шт.

Includes ref #12, 13

1шт.

2

87410958

GUARD

disc endmarker LH

1шт.

Includes ref #12, 13

1шт.

3

87410960

GUARD

dust cap, endmarker

1шт.

4

132710

BEARING CONE,25.4mm ID x 14.73mm W

TM#L44643

2шт.

5

432625A1

OIL SEAL

SE10

1шт.

6

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

7

432620A1

DISC

notched 16" concave

1шт.

8

9702386

DUST CAP

hub H211

1шт.

9

87412999

HUB

H211 assembly with cups and bolts

1шт.

Includes four 1013597 and two 572564R1

1шт.

10

132709

BEARING CUP,50.29mm OD x 10.67mm W

#L44610

2шт.

Part of Hub Assembly P/N 87412999

1шт.

11

1013597

WHEEL BOLT

wheel 1/2" -20 G5

4шт.

Part of Hub Assembly P/N 87412999

1шт.

12

86012106

WASHER

spindle wa10 .75 id

1шт.

Part of Guard P/N 87410959 and P/N 87410958

1шт.

13

88886

SLOTTED NUT,3/4"-16

1шт.

Part of Guard P/N 87410959 and P/N 87410958

1шт.
