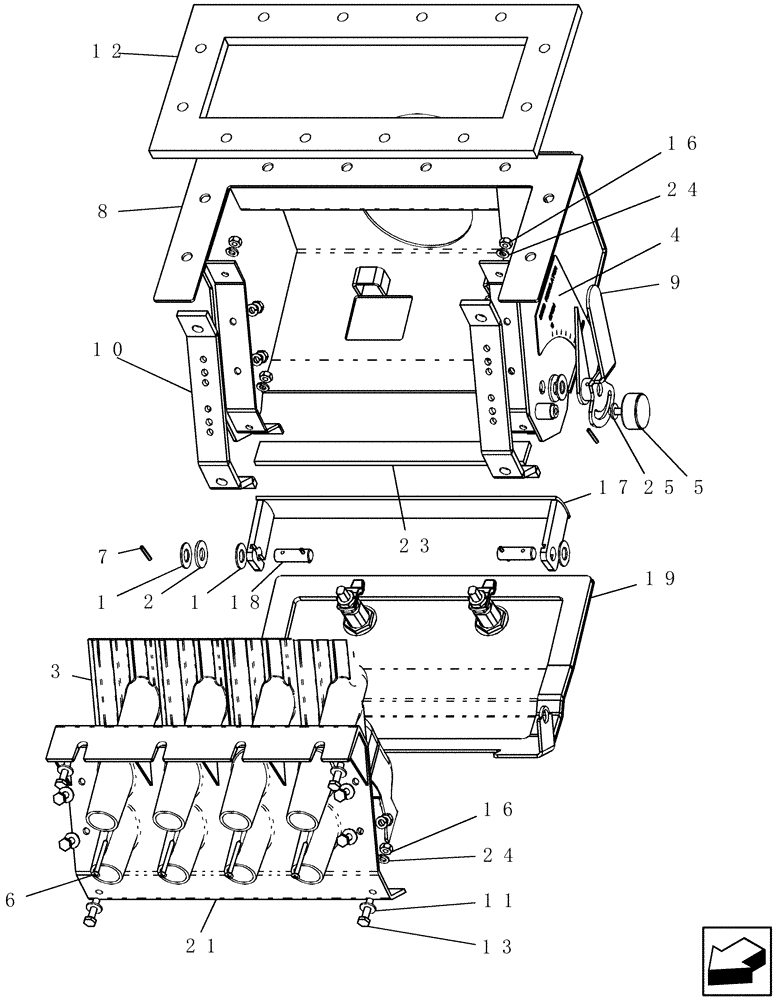

Запчасти Case IH 1200PT (L.10.G[05]) - BULK FILL - SEED BOX (BSN CBJ022251) L - Field Processing

1

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

4шт.

2

22569

RUBBER WASHER

31/64" id 1 1/16"

2шт.

3

87409514

MANIFOLD

nurse inductor, segmented

4шт.

4

86983408

DECAL

bulk fill seed regulator

1шт.

5

86991202

KNOB

bulk fill seed box

1шт.

6

87017483

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

4шт.

7

86637813

PIN,3.17mm OD x 25mm L, Coiled

4шт.

8

443466A1

DISTRIBUTOR

bulk fill

1шт.

9

444472A1

INDICATOR

bulk fill seed

1шт.

10

407094A1

GASKET

neoprene front black 1 1/4" w x 9 5/8" l x 1/4"

2шт.

11

407098A1

SEALING WASHER

seal 1/4"id 5/8"od 15GA

8шт.

12

407099A1

GASKET

neoprene top black rect 7 3/8" x 16 1/2" 1 21/32"ed

1шт.

13

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

14

417519A1

LATCH

compression Southco part E3-17-25

2шт.

15

417521A1

GASKET

latch compression

2шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

17

444464A1

REGULATING SYSTEM

seed assembly

1шт.

18

435153A1

SHAFT

pin seed regulator 1/2" od

2шт.

19

NSS

NOT SOLD SEPARAT

COVER, DISTRIBUTOR BOTTOM

1шт.

20

444560A1

PLATE

bottom cover

1шт.

21

443185A1

COVER

distributor front

1шт.

22

443188A1

GASKET

neoprene bottom cover black rect 13 1/2" x 9" edge width 1"

1шт.

23

444460A1

GASKET

neoprene bottom black strip 1" x 11.6" thickness

1шт.

24

80682

LOCK WASHER,1/4"

8шт.

25

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.
