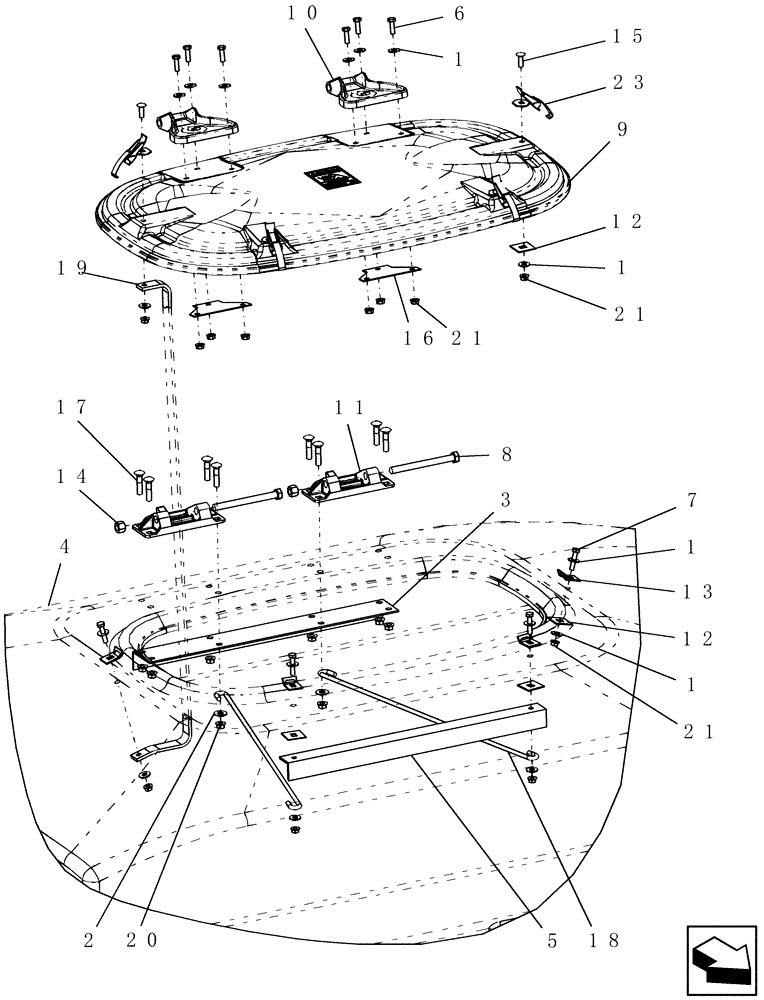

Запчасти Case IH 1200PT (L.10.G[01]) - BULK FILL - TANKS (BSN CBJ022251) L - Field Processing

1

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

18шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

3

448596A1

BRACKET

tank back

1шт.

4

405273A1

TANK

bulk, 30BU seed left, for 12R, 16R

1шт.

Shown

1шт.

4

405270A1

TANK

bulk, 30BU seed right, for 12R, 16R

1шт.

Not Shown

1шт.

4

449657A1

TANK

bulk fill 40BU LH, for 12/23, 16/31, and 24R

1шт.

Not Shown

1шт.

4

449656A1

TANK

bulk fill 40BU RH, for 12/23, 16/31, and 24R

1шт.

Not Shown

1шт.

5

448595A1

BRACKET

angle front tank

1шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

6шт.

7

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

8

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

2шт.

9

452021A1

LID

seed tank

1шт.

Complete With Seal and Decal

1шт.

9

416614A1

WARNING DECAL

Chemical Burn

1шт.

10

140859C1

HINGE

hopper lid

2шт.

11

140537C1

PIVOT

lid

2шт.

12

1254517C1

STRIP

lid latch pad

6шт.

13

548622R1

CLIP

locking

4шт.

14

86992215

LOCK NUT,1/2"-13, GC

2шт.

15

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

16

87422282

BAR

strip reinforcing

2шт.

17

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

8шт.

18

149297C1

BAR

rod 5/16" od bent safety

2шт.

19

86990409

SECURING STRAP

seed tank lid, Serial Range: -CBJ022195

1шт.

Install on opposite side for right hand tank assembly

1шт.

19

1254517C1

STRIP

lid latch pad, Start Serial: CBJ022196

1шт.

20

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

21

145458

SERRATED NUT,5/16"-18 GR 5 ZND

14шт.

23

140861C1

LATCH

lid

4шт.
