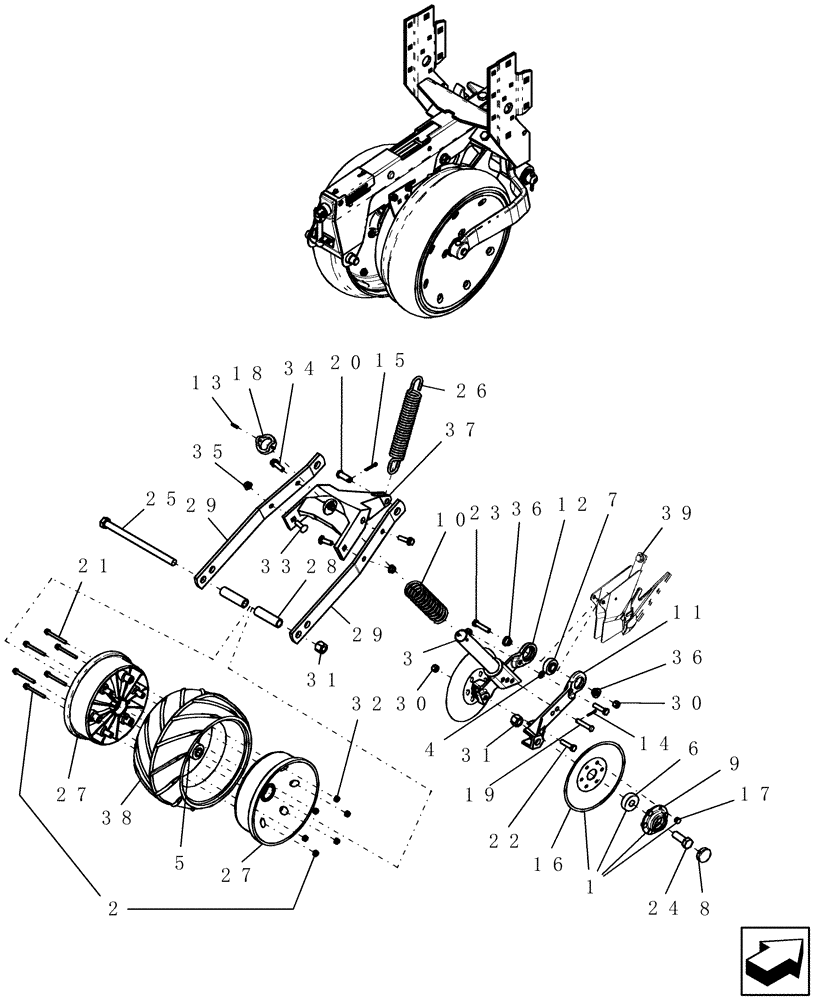

Запчасти Case IH 1200PT (L.10.F[33]) - PRESS WHEEL & COVERING DISC, WITH RH LEADING DISC OPENER (LH SIDE OF PLANTER, BTW CBJ0001597 AND MARCH 2007) L - Field Processing

1

1277891C91

DISC

assy covering

2шт.

2

87610678

WHEEL,304.8mm OD x 165.1mm W

6.5 x 12 press nylon

1шт.

3

436732A1

GUIDE

tube assembly spring

1шт.

4

86624145

WASHER,0.47" ID x 0.75" OD x 0.03" Thk

1шт.

5

324461A1

BALL BEARING

16 mm bore x 40 mm wide

1шт.

6

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id, Years: -01-AUG-07

4шт.

6

1268017C91GV

BEARING

Value, Ball Bearing

4шт.

6

87668158

BALL BEARING,16.05mm ID x 45.23mm OD x 18.67mm W

1.78 x .73 x .62 id, Start Year: 01-SEP-07

4шт.

7

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

#BB203RR2 Torrington

1шт.

8

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

4шт.

9

149170C2

FLANGED BEARING

bearing

2шт.

10

436733A1

COIL SPRING

.207" wire x 1.88" od x 6.3" long

1шт.

11

436720A1

ARM

Pivot, Long

1шт.

12

436722A1

ARM

short closing disc

1шт.

13

88042

PIN,4.76mm OD x 19.05mm L

, Years: -01-MAR-06

2шт.

13

87019

COTTER PIN,3/16" x 3/4"

, Start Year: 01-APR-06

2шт.

14

80756

COTTER PIN,1/8" x 3/4"

1шт.

15

394818

COTTER PIN,M5 x 25

3шт.

16

1263938C1

DISC

200.7 mm x 2 mm 6-hole marker/covering

2шт.

17

86624111

RIVET,6.35mm OD x 14.29mm L

24шт.

18

436735A1

COLLAR

guide

1шт.

19

86624080

HEADED PIN,9.53mm OD x 50.8mm L

1шт.

20

86624070

HEADED PIN,12.7mm OD x 38.1mm L

1шт.

21

87023128

BOLT,Hex Flg, 1/4" - 20 x 2 1/2", Gr 5

6шт.

22

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

23

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

24

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

25

413-10152

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 5

1шт.

26

436715A1

SPRING

E .244" wire x 1.48" od x 9.8" long

1шт.

27

87606710

WHEEL

6.5 x 12 press nylon

2шт.

28

428858A1

SPACER

.875" od x 3.091" long

2шт.

29

86983614

ARM

bar, press wheel

2шт.

30

88902

NUT,3/8"-16

3шт.

31

85700693

NUT,5/8" - 11, Gr C

3шт.

32

9626558

FLANGE NUT,Flg, 1/4"-20

6шт.

33

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

2шт.

34

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

2шт.

35

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

36

1279478C1

BUSHING,9.65mm ID x 24mm OD x 13mm L

sintered.38 bore

2шт.

37

436718A1

SUPPORT

Spring Anchor

1шт.

38

417630A1

TYRE/TIRE

press wheel, Years: -01-SEP-06

1шт.

38

87603057

TYRE/TIRE

6 1/2" x 12" press, Start Year: 01-OCT-06

1шт.

39

84243285

SHOE

Assembly, Seed With In Furrow Fertilizer Slot

1шт.
