Запчасти Case IH 1200PT (L.10.F[28]) - DISC OPENER & GAUGE WHEEL, WITH RH LEADING DISC OPENER (LH SIDE OF PLANTER, AFTER APRIL 2007) L - Field Processing

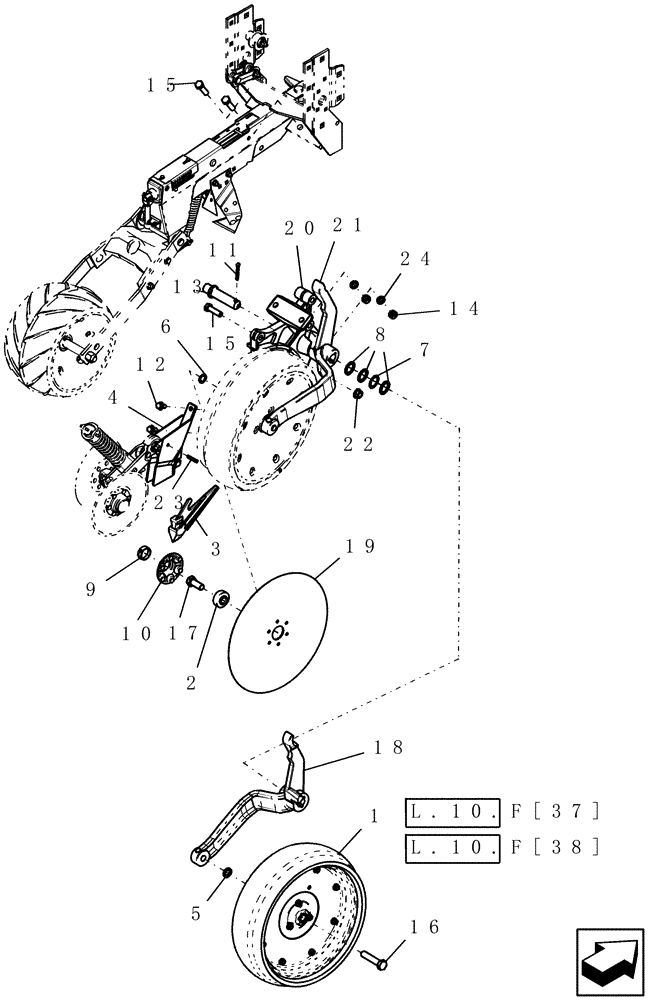

Схема запчастей Case IH 1200PT - (L.10.F[28]) - DISC OPENER & GAUGE WHEEL, WITH RH LEADING DISC OPENER (LH SIDE OF PLANTER, AFTER APRIL 2007) L - Field Processing
18
2
16
9
13
4
23
3
8
7
24
12
6
15
22
21
5
11
14
20
1
10
15
19
17

Артикул

Название

Примечание

Количество

1

87604747

WHEEL ASSY

4.5 X 16 gauge nylon

2шт.

1

87604837

WHEEL

2.75 x 16 gauge steel

2шт.

2

87668158

BALL BEARING,16.05mm ID x 45.23mm OD x 18.67mm W

1.78 x .73 x .62 id

4шт.

3

436702A1

POINT

cast furrow point, complete

1шт.

4

84243285

SHOE

Assembly, Seed With In Furrow Fertilizer Slot

1шт.

5

87023159

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

41/64" x 1.047" x .134", HDN

2шт.

6

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

4шт.

7

86624173

WASHER,1.09" ID x 1.5" OD x 0.06" Thk

2шт.

8

86624174

WASHER,1.09" ID x 1.5" OD x 0.12" Thk

9шт.

9

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

4шт.

10

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

2шт.

11

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

12

1263977C1

BOLT

lk 3/8"-16 x 3/4", G8 with chemical lock

2шт.

13

175598A1

PIN,25.4mm OD x 120mm L

flanged 1" od hardened with 1"-12 threaded end

2шт.

14

280431

NUT,1/2"-13, G5

2шт.

15

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

3шт.

16

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

17

113-2670

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8, LH Thd

1шт.

18

86983484

ARM

cast gauge wheel LH

1шт.

19

1337971C1

DISC

355.6 mm x 3.5 mm 6-hole opener/square

2шт.

20

436708A1

SUPPORT

cast disc LH

1шт.

21

86983485

ARM

cast gauge wheel RH

1шт.

22

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

23

87524

LOCK PIN,6.35mm OD x 34.92mm L, Slotted

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

Выбрано товаров: 25
