Запчасти Case IH 1200PT (L.10.F[26]) - DISC OPENER & GAUGE WHEEL, WITH RH LEADING DISC OPENER (LH SIDE OF PLANTER, BSN CBJ0001596) L - Field Processing

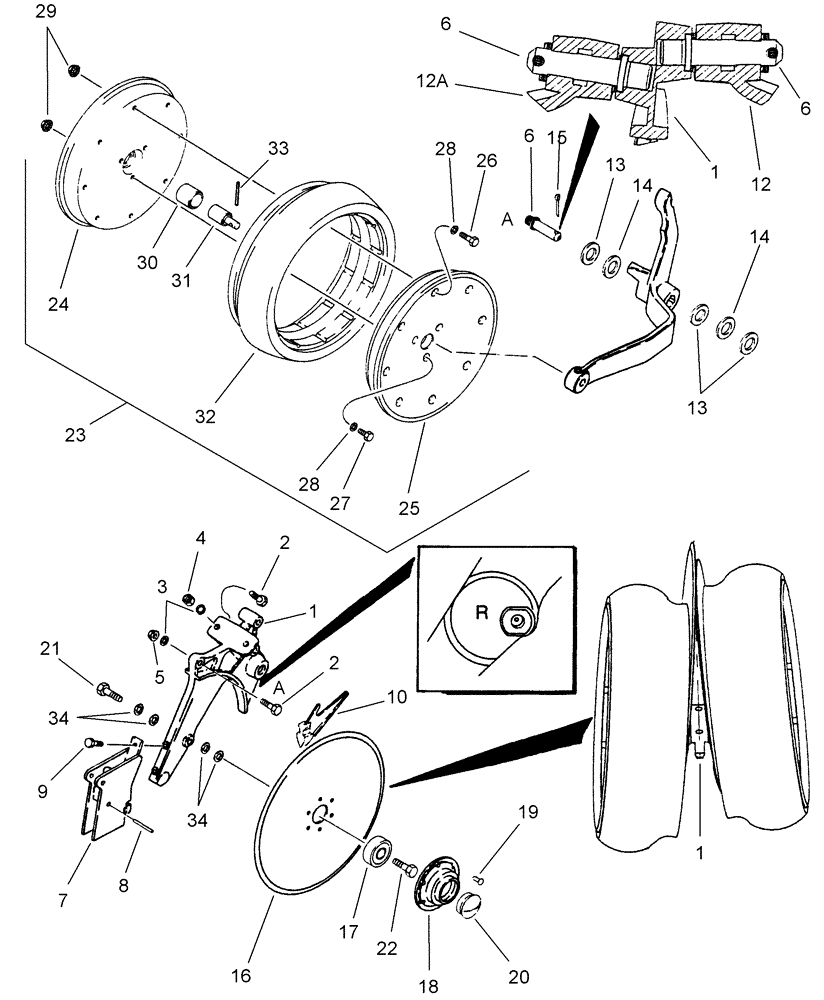

Схема запчастей Case IH 1200PT - (L.10.F[26]) - DISC OPENER & GAUGE WHEEL, WITH RH LEADING DISC OPENER (LH SIDE OF PLANTER, BSN CBJ0001596) L - Field Processing
15
22
6
5
17
6
33
31
14
20
8
10
13
2
4
26
28
9
2
7
21
30
1
1
1
13
23
29
34
3
19
28
24
25
32
6
27
14
18
34
12a
16
12

Артикул

Название

Примечание

Количество

1

436709A1

SUPPORT

cast disc RH

1шт.

2

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

280431

NUT,1/2"-13, G5

2шт.

5

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

6

175598A1

PIN,25.4mm OD x 120mm L

flanged 1" od hardened with 1"-12 threaded end

2шт.

7

84243285

SHOE

Assembly, Seed With In Furrow Fertilizer Slot

1шт.

8

87524

LOCK PIN,6.35mm OD x 34.92mm L, Slotted

1шт.

9

1263977C1

BOLT

lk 3/8"-16 x 3/4", G8 with chemical lock

2шт.

10

436702A1

POINT

cast furrow point, complete

1шт.

12

436711A1

ARM

cast gauge wheel RH

1шт.

12a

436710A1

ARM

gauge wheel LH

1шт.

13

86624173

WASHER,1.09" ID x 1.5" OD x 0.06" Thk

4шт.

14

86624174

WASHER,1.09" ID x 1.5" OD x 0.12" Thk

6шт.

15

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

16

90851C92

DISC

OPENER ASSY, 14" STD TRAILING - Includes disc, bearing and rivets

1шт.

Includes ref #16, 17, 18, 19 and 22

1шт.

1

90850C92

DISC

OPENER ASSY, 14" STD LEADING, Includes disc, bearing and rivets

1шт.

Includes ref #16, 17, 18, 19 and 21

1шт.

16

1337971C1

DISC

355.6 mm x 3.5 mm 6-hole opener/square

1шт.

Part of Disc Assembly P/N 90851C92 and P/N 90850C92

1шт.

17

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id

1шт.

Part of Disc Assembly P/N 90851C92 and P/N 90850C92

1шт.

17

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

18

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

1шт.

Part of Disc Assembly P/N 90851C92 and P/N 90850C92

1шт.

19

86624111

RIVET,6.35mm OD x 14.29mm L

6шт.

Part of Disc Assembly P/N 90851C92 and P/N 90850C92

1шт.

20

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

2шт.

21

88685

BOLT,Hex, 5/8" x 1 1/2", Gr 8, Full Thd

1шт.

Part of Disc Assembly P/N 90850C92

1шт.

22

86622982

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

Hex, 5/8"-11 x 1 3/4", G8, LH, Full Thd

1шт.

Part of Disc Assembly P/N 90851C92

1шт.

23

225349A1

WHEEL ASSY

press 4" x 16" with tire nylon/steel gauge

2шт.

Includes ref #24 - 32

1шт.

24

249935A1

WHEEL

nylon gauge, Years: -01-SEP-06

1шт.

Part of Wheel Press Assembly P/N 225349A1

1шт.

25

246676A1

RIM

WHEEL wheel, nylon, Years: -01-SEP-06

1шт.

Part of Wheel Press Assembly P/N 225349A1

1шт.

26

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

8шт.

Part of Wheel Press Assembly P/N 225349A1

1шт.

27

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

Part of Wheel Press Assembly P/N 225349A1

1шт.

28

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

11шт.

Part of Wheel Press Assembly P/N 225349A1

1шт.

29

145458

SERRATED NUT,5/16"-18 GR 5 ZND

11шт.

Part of Wheel Press Assembly P/N 225349A1

1шт.

30

133966C1

BUSHING,29.94mm ID x 39.95mm OD x 39mm L

sleeve

1шт.

Part of Wheel Press Assembly P/N 225349A1

1шт.

31

128558C91

BALL BEARING,30mm OD x 75mm L

gauge wheel

1шт.

Part of Wheel Press Assembly P/N 225349A1

1шт.

32

128633C1

TYRE/TIRE

disc opener gauge wheel, Years: -01-SEP-06

1шт.

Part of Wheel Press Assembly P/N 225349A1

1шт.

33

86624088

PIN,6.35mm OD x 50.8mm L

2шт.

34

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

1шт.
