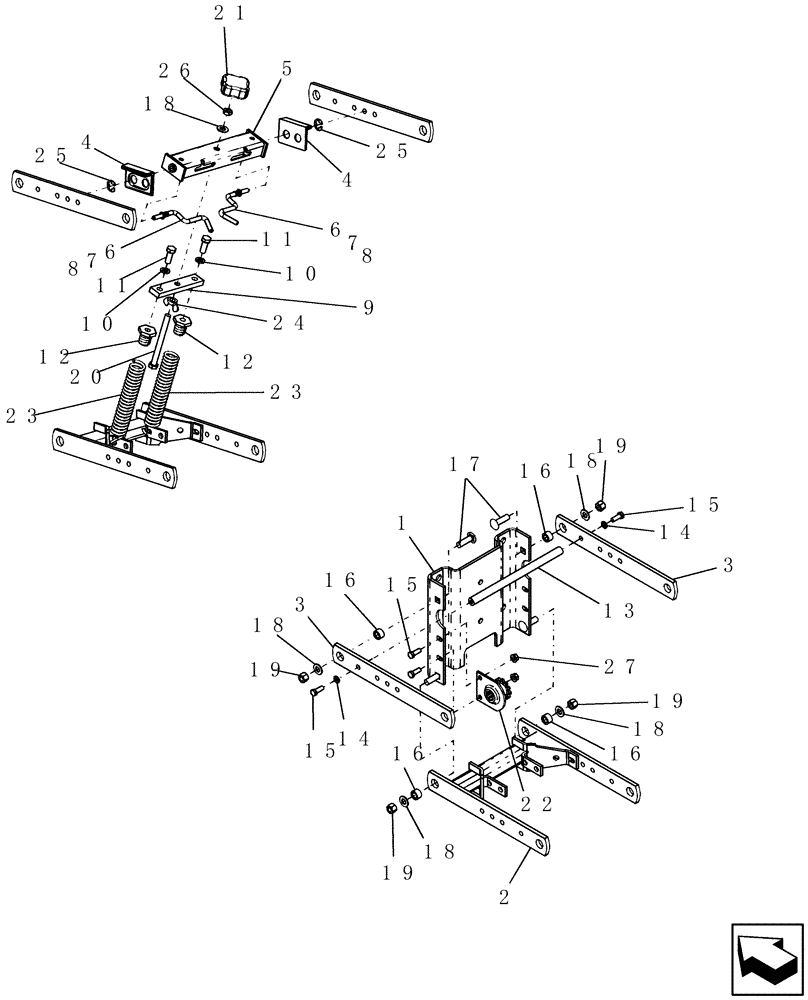

Запчасти Case IH 1200PT (L.10.F[20]) - ROW UNIT LINKAGE L - Field Processing

1

141728C4

CHANNEL

bracket head

1шт.

2

436741A1

SUPPORT

linkage lower regular (The distance from mount hole to back of crosstube is 72 mm)

1шт.

The distance from mount hole to back of crosstube is 72 mm

1шт.

3

436740A1

BAR

link, regular upper

2шт.

4

436746A1

BRACKET

spring pressure adjuster

2шт.

5

436745A1

CHANNEL

support, spring mount

1шт.

6

141154A1

LEVER

3/8" od bent, quick adjust

2шт.

7

86624102

SNAP RING,#37, .300" Dia, E-Type

2шт.

8

376768R1

SPRING

C .048" wire x .5" od x 1.52" long

2шт.

9

141156A1

PLATE

spring adjustment

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

12

436747A1

PLUG

spring 1/2"-13

2шт.

13

183502A1

SPACER

shaft 3/4" od x 11.85" long

1шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

link pivot

4шт.

17

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

4шт.

18

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

5шт.

19

86992215

LOCK NUT,1/2"-13, GC

4шт.

20

86624004

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5, Full Thd

1шт.

21

329636A1

KNOB

1/2"-13, G2B

1шт.

22

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.

23

436748A1

SPRING

E .244" wire x 1.5" od x 6.64" long

2шт.

24

129-400

WING NUT,1/2"-13

1шт.

25

505026

SNAP RING,#75, .574" Dia, E-Type

2шт.

26

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

27

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.
