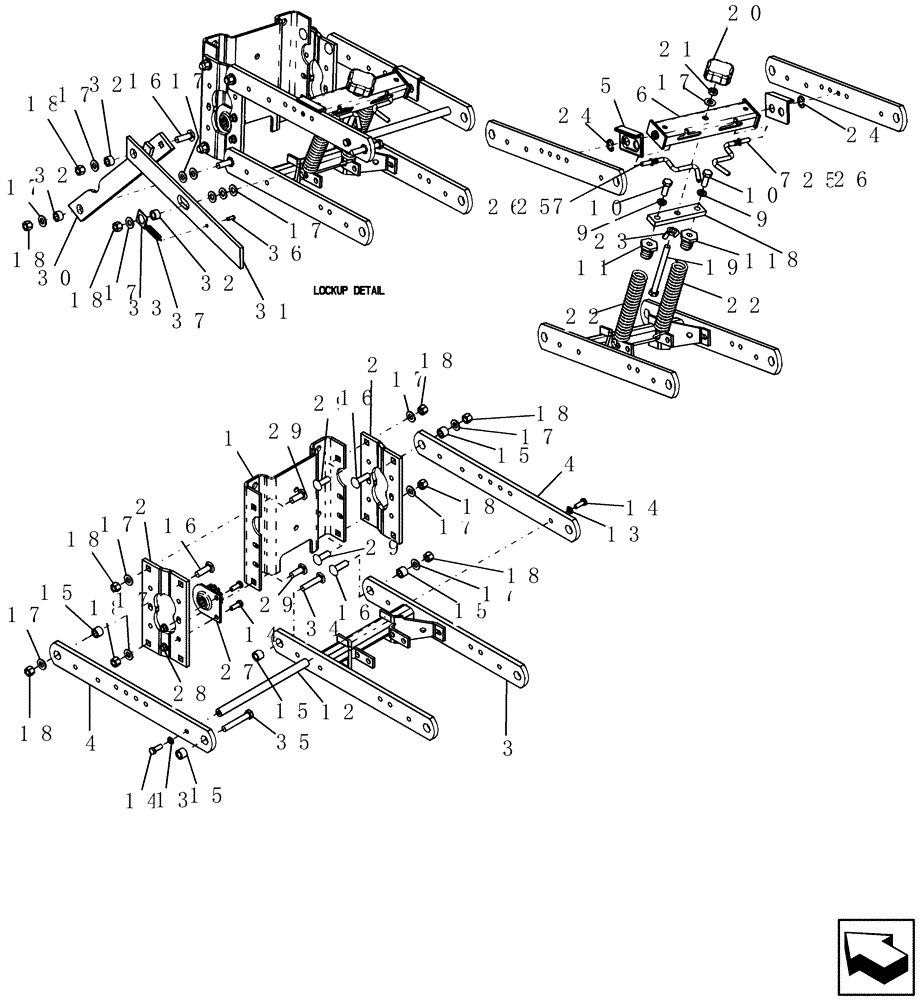

Запчасти Case IH 1200PT (L.10.F[18]) - ROW UNIT EXTENDED LINKAGE AND HEADBRACKET EXTENSION L - Field Processing
№
Артикул
Название
Примечание
Количество
1
141728C4
CHANNEL
bracket head
1шт.
2
444562A1
EXTENSION
head bracket
2шт.
3
436744A2
LINK
lower support (The distance from mount hole to back of crosstube is 150 mm)
1шт.
4
436743A1
LINK
extension, upper bar
2шт.
5
436746A1
BRACKET
spring pressure adjuster
2шт.
6
436745A1
CHANNEL
support, spring mount
1шт.
7
141154A1
LEVER
3/8" od bent, quick adjust
2шт.
8
141156A1
PLATE
spring adjustment
1шт.
9
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
10
87670
BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5
2шт.
11
436747A1
PLUG
spring 1/2"-13
2шт.
12
183502A1
SPACER
shaft 3/4" od x 11.85" long
1шт.
13
80680
LOCK WASHER,3/8 0.381 CST ZND
2шт.
14
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
15
1254302C1
BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L
link pivot
5шт.
16
88530
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
4шт.
17
87364
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
16шт.
19
86624004
BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5, Full Thd
1шт.
20
329636A1
KNOB
1/2"-13, G2B
1шт.
21
86632558
JAM NUT,Jam, 1/2"-13, G5
1шт.
22
436748A1
SPRING
E .244" wire x 1.5" od x 6.64" long
2шт.
23
129-400
WING NUT,1/2"-13
1шт.
25
86624102
SNAP RING,#37, .300" Dia, E-Type
2шт.
26
376768R1
SPRING
C .048" wire x .5" od x 1.52" long
2шт.
27
413712A1
BEARING ASSY,1.90625" OD x 1.875"
12 tooth with bearing
1шт.
28
247780
SERRATED NUT,Flg, USR, 3/8"-16
2шт.
29
280420
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd
4шт.
30
87422614
ARM
row unit lockup
1шт.
31
87422615
BAR
secondary lockup
1шт.
32
137512C3
BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L
link pivot
3шт.
33
87428709
LOCKING TAB
spring
1шт.
34
280435
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5
1шт.
35
88043
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
1шт.
36
439-1412
HEADED PIN,1/4" x 3/4"
1шт.
37
87426449
COIL SPRING
E 1/16" wr 1/2" d 2" lg
1шт.
Выбрано товаров: 37
