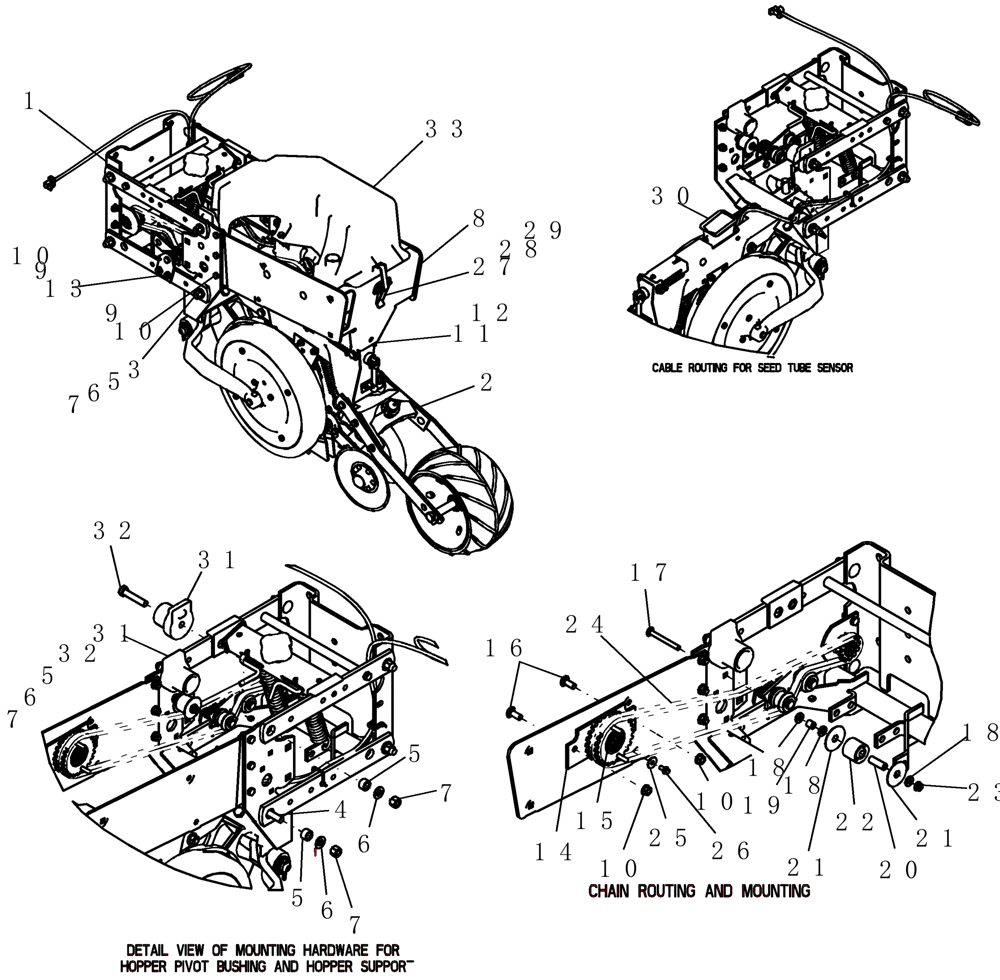

Запчасти Case IH 1200PT (L.10.F[17]) - ROW UNIT FRAME WITH MINI HOPPER (ASN CBJ022252) L - Field Processing

1

REF

INSTRUCTION

LAYOUT STANDARD LINKAGE NARR

1шт.

2

REF

INSTRUCTION

LAYOUT RH ROW UNIT(RH D LEAD)

1шт.

3

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

4

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1шт.

5

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

link pivot

4шт.

6

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

7

86992215

LOCK NUT,1/2"-13, GC

4шт.

8

197332A3

SUPPORT

assy hopper

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

10шт.

11

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

12

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

13

REF

INSTRUCTION

IDLER/A, ALT SEED METER

1шт.

14

303068A1

BRACKET

bearing spindle mount assembly

1шт.

15

87407490

SPROCKET

and bearing assembly

1шт.

16

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

17

281006

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

1шт.

18

86624142

WASHER,0.34" ID x 0.75" OD x 0.12" Thk

3шт.

19

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

1шт.

20

134288C1

SPACER

roller

1шт.

21

86624150

WASHER,0.53" ID x 2" OD x 0.06" Thk

2шт.

22

57796C1

ROLLER

1шт.

23

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

24

237999A1

CHAIN (AG)

seed meter drive

1шт.

Use 119 Links From 475879R91 Bulk Chain, Plus (1) 241-2314 Connecting Link

1шт.

24

475879R91

CHAIN (AG)

#41 - 10' s/p roller

1шт.

24

44428

CONNECTING LINK

#41 single pitch connecting

1шт.

25

86624140

WASHER,0.28" ID x 0.88" OD x 0.06" Thk

1шт.

26

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

27

230311A1

CLAMP

hopper assembly

1шт.

28

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

29

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

30

383337A2

PLASTIC-RUBBER TUBE

ASM seed tube & sensor

1шт.

31

303377A1

BUSHING

hopper pivot, Years: -31-JUL-05

2шт.

31

87461593

BUSHING

hopper pivot, Start Year: 01-AUG-05

2шт.

32

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

, Years: -31-JUL-05

2шт.

32

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

, Years: 01-AUG-05-01-JAN-08

2шт.

32

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

, Start Year: 01-JAN-08

2шт.

33

REF

INSTRUCTION

LAYOUT SEED METER ASSY W/MHOP

1шт.

33

411435A1

MANIFOLD

hopper bulk fill mini

1шт.
