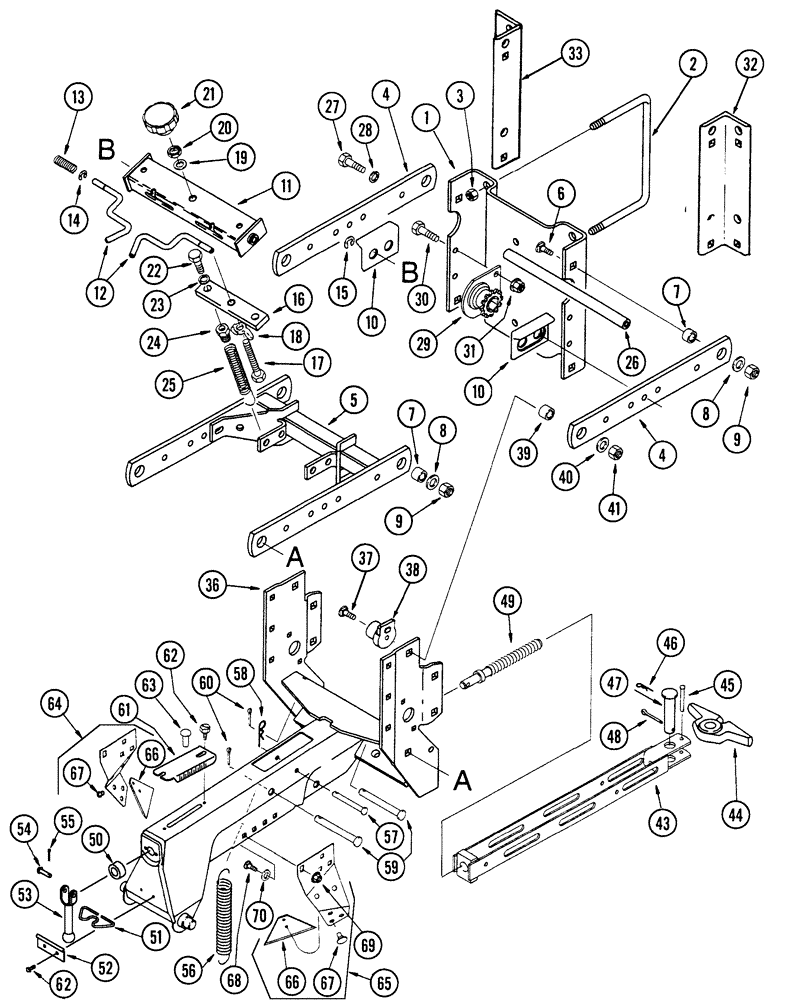

Запчасти Case IH 1200PT (L.10.F[15]) - ROW UNIT FRAME WITH STANDARD LINKAGE & HOPPER L - Field Processing

1

141728C4

CHANNEL

bracket head

1шт.

2

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

4

436740A1

BAR

link, regular upper

2шт.

5

436741A1

SUPPORT

linkage lower regular (The distance from mount hole to back of crosstube is 72 mm)

1шт.

The distance from mount hole to back of crosstube is 72 mm

1шт.

6

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

6

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

4шт.

6

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1шт.

7

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

link pivot

4шт.

8

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

9

86992215

LOCK NUT,1/2"-13, GC

4шт.

10

436746A1

BRACKET

spring pressure adjuster

2шт.

11

436745A1

CHANNEL

support, spring mount

1шт.

12

141154A1

LEVER

3/8" od bent, quick adjust

2шт.

13

376768R1

SPRING

C .048" wire x .5" od x 1.52" long

2шт.

14

86624102

SNAP RING,#37, .300" Dia, E-Type

2шт.

15

505026

SNAP RING,#75, .574" Dia, E-Type

2шт.

16

141156A1

PLATE

spring adjustment

1шт.

17

86624004

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5, Full Thd

1шт.

18

129-400

WING NUT,1/2"-13

1шт.

19

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

20

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

21

329636A1

KNOB

1/2"-13, G2B

1шт.

22

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

24

436747A1

PLUG

spring 1/2"-13

2шт.

25

436748A1

SPRING

E .244" wire x 1.5" od x 6.64" long

2шт.

26

183502A1

SPACER

shaft 3/4" od x 11.85" long

1шт.

27

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

28

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

29

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.

30

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

31

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

32

127475A2

ANGLE

row unit mounting extension

1шт.

33

275124A2

ANGLE

row extension, yield, LH

1шт.

36

84138178

FRAME

row unit

1шт.

37

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

, Years: -31-JUL-05

2шт.

37

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

, Start Year: 01-AUG-05

2шт.

38

303377A1

BUSHING

hopper pivot, Years: -31-JUL-05

2шт.

38

87461593

BUSHING

hopper pivot, Start Year: 01-AUG-05

2шт.

39

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

link pivot

2шт.

40

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

41

86992215

LOCK NUT,1/2"-13, GC

2шт.

43

432749A1

BAR

assembly, tension

1шт.

44

436712A1

BRACKET

wobble

1шт.

45

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

pointed, 1/4" x 2 3/4"

1шт.

46

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.

47

86624066

CLEVIS PIN,19.05mm OD x 45.62mm L

1шт.

48

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

49

1279684C1

ROD

depth adjusting

1шт.

50

430871A1

BUSHING,17.5mm ID x 31.8mm OD x 16mm L

spacer

1шт.

51

430869A1

SPRING CLIP

1шт.

52

434143A1

CLAMP

, Years: -01-MAR-05

1шт.

52

430872A1

GAUGE

clamp plate, Start Year: 01-APR-05

2шт.

53

430868A1

HANDLE

depth adjustment

1шт.

54

86624076

HEADED PIN,1/4" x 1 1/4", G5

1шт.

55

87394

COTTER PIN,1/8" x 1/2"

1шт.

56

436715A1

SPRING

E .244" wire x 1.48" od x 9.8" long

1шт.

57

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

pointed, 1/4" x 2 3/4"

1шт.

58

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.

59

86624072

HEADED PIN,12.7mm OD x 69.85mm L

2шт.

60

394818

COTTER PIN,M5 x 25

2шт.

61

430873A1

GAUGE

depth

1шт.

62

86624112

SELF-TAP SCREW,HWH, #10 - 24 x 1/2"

4шт.

63

1277597C1

STUD

barbed #12 x 3/4" RH

2шт.

64

413684A1

SCRAPER

blade LH

1шт.

65

413687A1

SCRAPER

blade RH

1шт.

66

436705A1

BLADE

scraper

2шт.

67

147274C1

RIVET,4.78mm OD x 10mm L

fh 3/16" x 3/8" special

4шт.

68

280647

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5, Full Thd

, Years: -01-JUL-05, Serial Range: -CBJ025653

4шт.

68

51200045

CARRIAGE BOLT

5/16"-18 x 3/4", G5, Start Year: 01-AUG-05, Start Serial: CBJ025654

4шт.

69

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

70

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

1шт.
