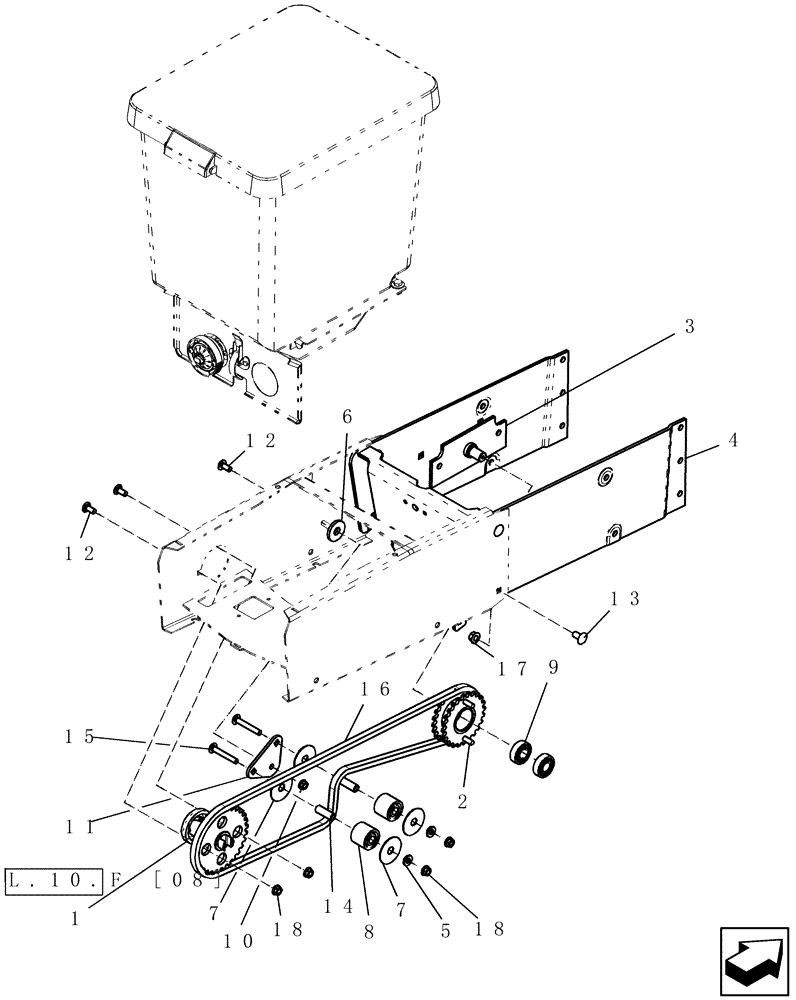

Запчасти Case IH 1200PT (L.10.F[07]) - GRANULAR CHEMICAL DRIVE (ASN CBJ0018120) L - Field Processing

1

86991726

BEARING ASSY

drive with sprocket and bearing, Start Year: 01-NOV-02, Start Serial: CBJ0001691

1шт.

Refer to Figure L.10.F[08]

1шт.

2

87407490

SPROCKET

and bearing assembly

1шт.

3

303068A1

BRACKET

bearing spindle mount assembly

1шт.

4

197332A3

SUPPORT

assy hopper

1шт.

5

86624142

WASHER,0.34" ID x 0.75" OD x 0.12" Thk

2шт.

6

86624149

WASHER,0.53" ID x 1.5" OD x 0.19" Thk

17/32" x 1 1/2" x 3/16"

1шт.

7

86624150

WASHER,0.53" ID x 2" OD x 0.06" Thk

4шт.

8

57796C1

ROLLER

2шт.

9

303247A1

BALL BEARING

vacuum seed meter

2шт.

10

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

11

339572A1

PLATE

idler support

1шт.

12

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

13

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

4шт.

14

134288C1

SPACER

roller

2шт.

15

280631

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

2шт.

16

237999A1

CHAIN (AG)

seed meter drive

1шт.

Use 119 Links From 475879R91 Bulk Chain, Plus (1) 241-2314 Connecting Link

1шт.

16

475879R91

CHAIN (AG)

#41 - 10' s/p roller

1шт.

16

44428

CONNECTING LINK

#41 single pitch connecting

1шт.

17

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

18

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.
