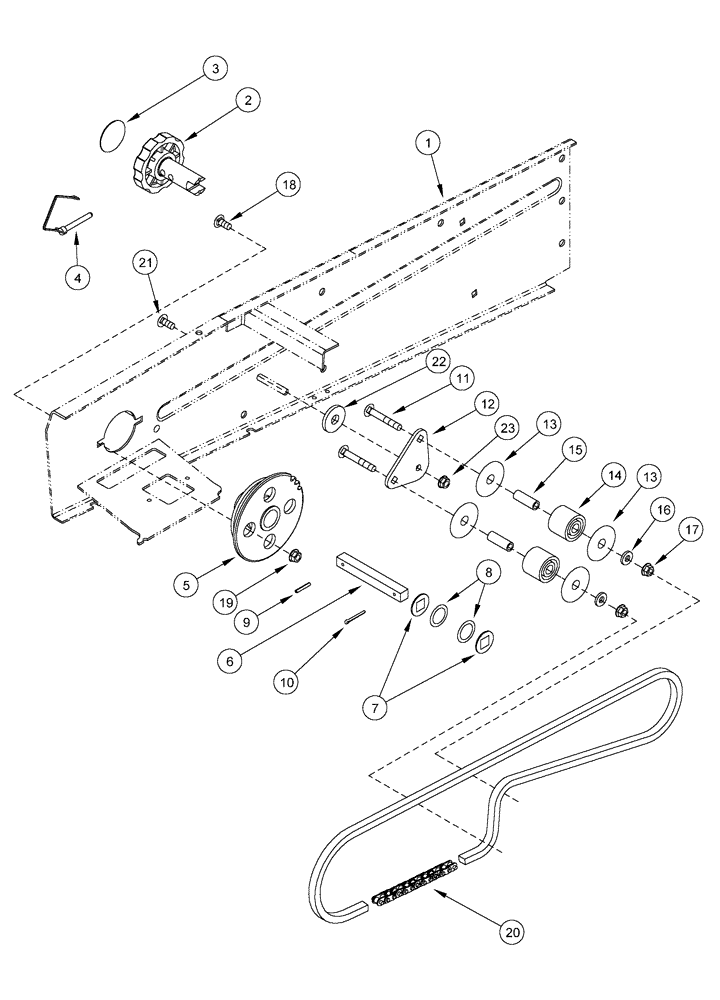

Запчасти Case IH 1200PT (L.10.F[06]) - GRANULAR CHEMICAL DRIVE (BSN CBJ0018119) L - Field Processing

1

87413585

FRAME

kit, granular chemical, 1200 Series, Serial Range: -CBJ0001690

1шт.

1

86990636

FRAME

granular hopper support, Start Serial: CBJ0001691

1шт.

2

145153C2

KNOB

drive, Serial Range: -CBJ0001690

1шт.

3

95769C1

DECAL

knob insert, Serial Range: -CBJ0001690

1шт.

4

140933C2

PIN

quick release, Serial Range: -CBJ0001690

1шт.

5

410381A1

SPROCKET

and bearing, Serial Range: -CBJ0001690

1шт.

5

86991726

BEARING ASSY

drive with sprocket and bearing, Start Serial: CBJ0001691

1шт.

6

134254C2

BAR

1шт.

7

134253C1

SQ HOLE WASHER

square hole, 19/32 x 1 1/4 x 1/16

2шт.

8

86624164

WASHER,0.89" ID x 1.25" OD x 0.04" Thk

2шт.

9

86624058

LOCK PIN,5/32" x 1", Slotted

1шт.

10

80755

COTTER PIN,1/8" OD x 1" L

1шт.

11

280631

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

2шт.

12

339572A1

PLATE

idler support

1шт.

13

86624150

WASHER,0.53" ID x 2" OD x 0.06" Thk

4шт.

14

57796C1

ROLLER

2шт.

15

134288C1

SPACER

roller

2шт.

16

86624142

WASHER,0.34" ID x 0.75" OD x 0.12" Thk

2шт.

17

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

18

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

19

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

20

237999A1

CHAIN (AG)

seed meter drive

1шт.

Use 119 Links From 475879R91 Bulk Chain, Plus (1) 241-2314 Connecting Link

1шт.

20

475879R91

CHAIN (AG)

#41 - 10' s/p roller

1шт.

20

44428

CONNECTING LINK

#41 single pitch connecting

1шт.

21

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

22

86624149

WASHER,0.53" ID x 1.5" OD x 0.19" Thk

17/32" x 1 1/2" x 3/16"

1шт.

23

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.
