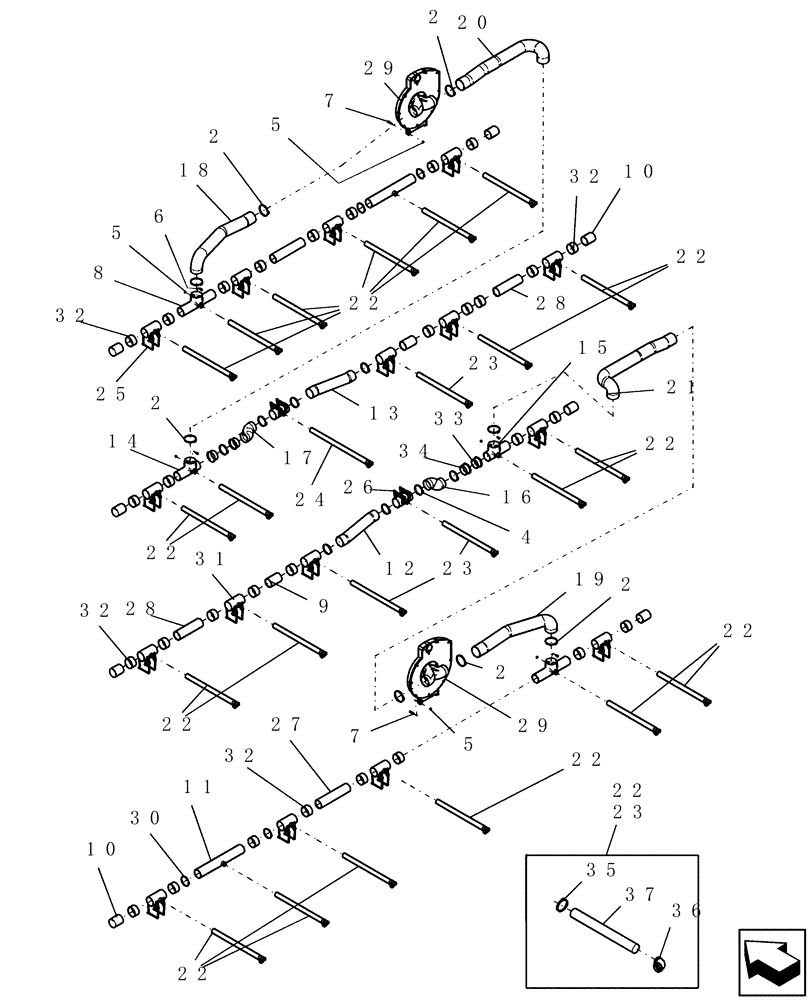

Запчасти Case IH 1200PT (L.10.E[17]) - VACUUM AIR SYSTEM - 24 ROW L - Field Processing

2

214-14104

HOSE CLAMP,155.45mm - 177.8mm

8шт.

4

214-1488

HOSE CLAMP,130.05mm - 152.4mm

8шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

16шт.

6

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

8шт.

7

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

8шт.

8

86988117

TEE

4-way

2шт.

9

87416985

TUBE,116.88 mm ID x 125 mm OD x 200 mm L

vacuum 5" x 7 7/8" long

2шт.

10

87417934

PLUG

vacuum manifold

8шт.

11

87417935

TEE

vacuum manifold, long

2шт.

12

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

13

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

14

87451934

TEE

manifold 4-way LH

1шт.

15

87451935

TEE

manifold 4-way RH

1шт.

16

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

17

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

18

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

19

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

20

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

21

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

22

377590A1

HOSE,50.95 mm ID, 52.00 mm ID x 960.00 mm

, Serial Range: -CBJ022977

20шт.

22

87501732

HOSE

vacuum with elbow - 960, Start Serial: CBJ022978

20шт.

Includes ref #38 and 39

1шт.

23

87445587

HOSE

51 mm x 1000 mm flexible, Serial Range: -CBJ022977

3шт.

24

442135A1

HOSE

molded flex 51 mm x 1140 mm, Serial Range: -CBJ022977

1шт.

24

87501734

HOSE

vacuum with elbow - 1140, Start Serial: CBJ022978

1шт.

Includes ref #38 and 39

1шт.

25

112620A1

CABLE TIE

CABLE STRAP 34"

32шт.

26

112620A1

CABLE TIE

CABLE STRAP 34"

4шт.

27

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

2шт.

28

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

vacuum 5" x 444 mm long

2шт.

29

REF

INSTRUCTION

FAN, ASM VACUUM, 6" INLET

2шт.

30

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

4шт.

31

446603A2

TEE

Vacuum Manifold

18шт.

32

447175A3

SLEEVE

manifold seal

30шт.

33

447175A3

SLEEVE

manifold seal

2шт.

34

447175A3

SLEEVE

manifold seal

2шт.

35

82012728

COLLAR,50mm - 65mm, Worm Gear

, Serial Range: CBJ022978-CBJ025263

24шт.

36

66000962

ELBOW

90º 50 mm - Brazil vacuum hose, Serial Range: CBJ022978-CBJ025263

24шт.

36

87500119

TUBE

90º 50 mm - vacuum, Start Serial: CBJ025264

24шт.

37

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

20шт.

37

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

3шт.

37

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

1шт.
