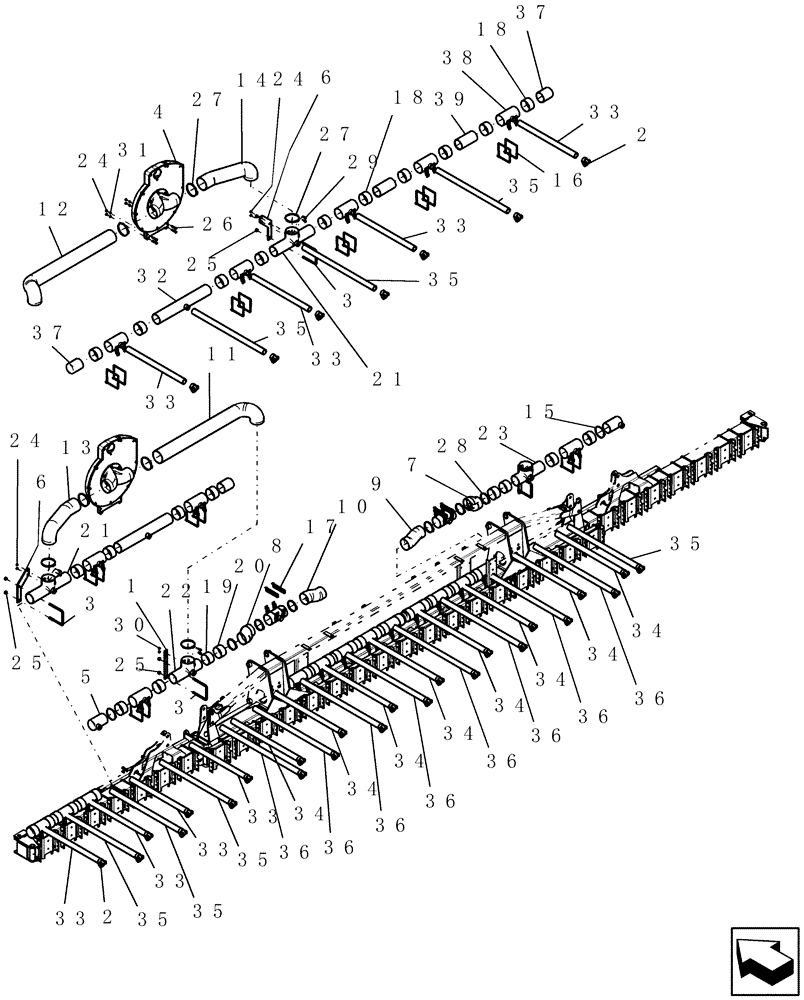

Запчасти Case IH 1200PT (L.10.E[16]) - VACUUM AIR SYSTEM - 16/31 ROW (ASN CBJ026003) L - Field Processing

1

86991575

BRACKET

4-way tee mounting

2шт.

2

87500119

TUBE

90º 50 mm - vacuum

31шт.

3

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

28шт.

4

REF

INSTRUCTION

FAN ASM VACUUM 6IN INLET

2шт.

5

446492A1

CAP

2" tee

2шт.

6

87424272

BRACKET

4-way tee, offset

2шт.

7

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

8

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

9

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

10

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

7-10

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

11

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

12

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

13

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

14

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

11-14

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

15

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

2шт.

16

112620A1

CABLE TIE

CABLE STRAP 34"

42шт.

17

112620A1

CABLE TIE

CABLE STRAP 34"

4шт.

18

447175A3

SLEEVE

manifold seal

40шт.

19

447175A3

SLEEVE

manifold seal

2шт.

20

447175A3

SLEEVE

manifold seal

2шт.

21

86988117

TEE

4-way

2шт.

22

87451934

TEE

manifold 4-way LH

1шт.

23

87451935

TEE

manifold 4-way RH

1шт.

24

9628503

NUT,3/8"-16, G5

23шт.

25

280374

NUT,Hex, 5/8" - 11, Gr 5

124шт.

26

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

8шт.

27

214-14104

HOSE CLAMP,155.45mm - 177.8mm

8шт.

28

214-1488

HOSE CLAMP,130.05mm - 152.4mm

8шт.

29

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

8шт.

30

247780

SERRATED NUT,Flg, USR, 3/8"-16

20шт.

31

80680

LOCK WASHER,3/8 0.381 CST ZND

26шт.

32

87417935

TEE

vacuum manifold, long

2шт.

33

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut 927 mm length from bulk hose

1шт.

34

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut 1107 mm length from bulk hose

1шт.

35

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut 1157 mm length from bulk hose

1шт.

36

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut 1307 mm length from bulk hose

1шт.

37

87417934

PLUG

vacuum manifold

6шт.

38

446603A2

TEE

Vacuum Manifold

23шт.

39

86988928

TUBE,116.88 mm ID x 125 mm OD x 250 mm L

5" rigid x 250 mm

11шт.

39

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.
