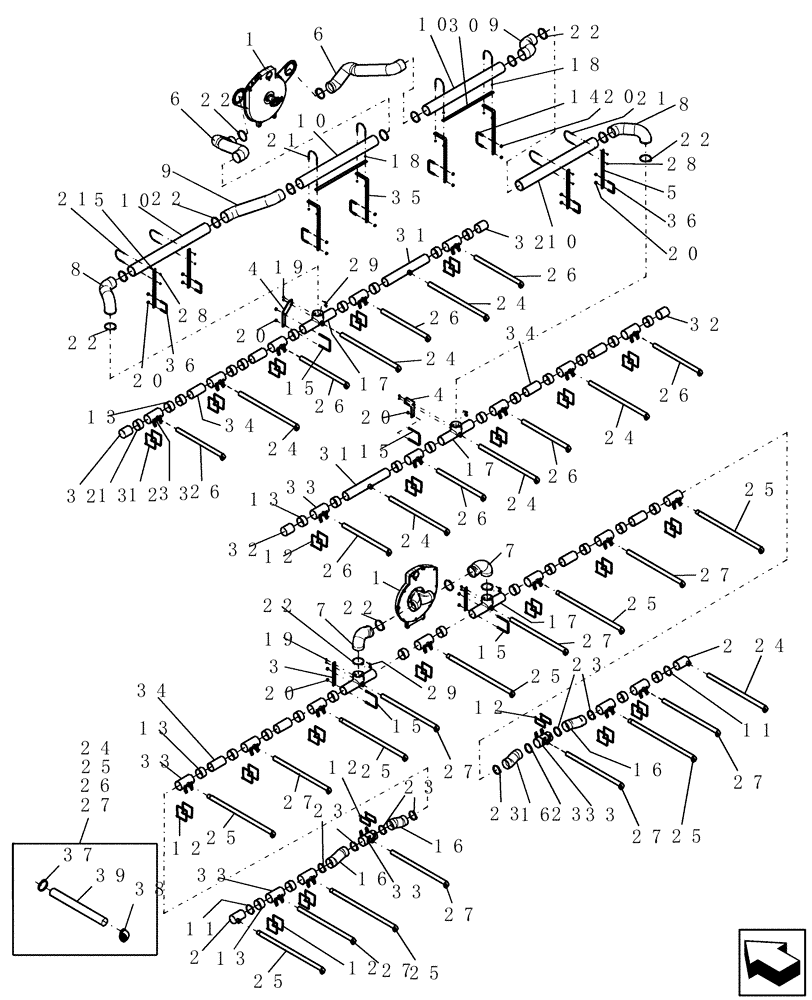

Запчасти Case IH 1200PT (L.10.E[15]) - VACUUM AIR SYSTEM - 16/31 ROW (BSN CBJ026002) L - Field Processing

1

REF

INSTRUCTION

FAN, ASM VACUUM, 6" INLET

1шт.

2

446492A1

CAP

2" tee

2шт.

3

86991575

BRACKET

4-way tee mounting

2шт.

4

87424272

BRACKET

4-way tee, offset

2шт.

5

87424162

BRACKET

6" hose

4шт.

6

NSS

NOT SOLD SEPARAT

6" FLEX 1336MM

1шт.

Cut from bulk hose 86988929

1шт.

7

NSS

NOT SOLD SEPARAT

6" FLEX HOSE, 392MM

1шт.

Cut from bulk hose 86988929

1шт.

8

NSS

NOT SOLD SEPARAT

6" FLEX HOSE, 610MM

1шт.

Cut from bulk hose 86988929

1шт.

9

NSS

NOT SOLD SEPARAT

6" FLEX HOSE, 915MM

1шт.

Cut from bulk hose 86988929

1шт.

6-9

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

Not Shown

1шт.

Must be sold in multiples of 25'

1шт.

10

451530A2

TUBE

6" od x 60"

4шт.

11

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

2шт.

12

112620A1

CABLE TIE

CABLE STRAP 34"

42шт.

13

447175A3

SLEEVE

manifold seal

36шт.

14

142583A1

U-BOLT

us 5/8"-11 7"w 4 7/32"d G5 2" thread

34шт.

15

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

30шт.

16

NSS

NOT SOLD SEPARAT

FLEX HOSE, 5.5IN ID X 350MM

1шт.

Cut from bulk hose 86991569

1шт.

16

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Must be sold in multiples of 25'

1шт.

17

86988117

TEE

4-way

4шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

19

9628503

NUT,3/8"-16, G5

26шт.

20

280374

NUT,Hex, 5/8" - 11, Gr 5

136шт.

21

87427116

U-BOLT

ur 1/4" 6 17/32"w 6 25/32"d yzd with 1 1/2" thread

8шт.

22

214-14104

HOSE CLAMP,155.45mm - 177.8mm

16шт.

23

214-1488

HOSE CLAMP,130.05mm - 152.4mm

8шт.

24

87424203

HOSE

51 mm x 1190 mm flexible, Serial Range: -CBJ022977

7шт.

24

87501735

HOSE

vacuum with elbow - 1190, Start Serial: CBJ022978

7шт.

Includes ref #38 and 39

1шт.

25

377589A1

HOSE,50.95 mm ID, 52.00 mm ID x 1190.00 mm

, Serial Range: -CBJ022977

8шт.

25

87501736

HOSE

vacuum with elbow - 1340, Start Serial: CBJ022978

8шт.

Includes ref #38 and 39

1шт.

26

377590A1

HOSE,50.95 mm ID, 52.00 mm ID x 960.00 mm

, Serial Range: -CBJ022977

8шт.

26

87501732

HOSE

vacuum with elbow - 960, Start Serial: CBJ022978

8шт.

Includes ref #38 and 39

1шт.

27

442135A1

HOSE

molded flex 51 mm x 1140 mm, Serial Range: -CBJ022977

8шт.

27

87501734

HOSE

vacuum with elbow - 1140, Start Serial: CBJ022978

8шт.

Includes ref #38 and 39

1шт.

28

86625061

NUT,1/4"-20, GB

16шт.

29

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

8шт.

30

444190A1

SUPPORT TUBE

tube support

2шт.

31

87417935

TEE

vacuum manifold, long

2шт.

32

87417934

PLUG

vacuum manifold

4шт.

33

446603A2

TEE

Vacuum Manifold

23шт.

34

86988928

TUBE,116.88 mm ID x 125 mm OD x 250 mm L

5" rigid x 250 mm

8шт.

35

427745A2

BAR

vacuum support

4шт.

36

817740C1

U-BOLT

us 5/8"-11 5"w 4 7/32"d G5 1 1/2" thread

4шт.

37

82012728

COLLAR,50mm - 65mm, Worm Gear

, Serial Range: CBJ022978-CBJ025263

31шт.

38

66000962

ELBOW

90º 50 mm - Brazil vacuum hose, Serial Range: CBJ022978-CBJ025263

31шт.

38

87500119

TUBE

90º 50 mm - vacuum, Start Serial: CBJ025264

31шт.

39

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

7шт.

39

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

8шт.

39

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

8шт.

39

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

8шт.

100

446682A1

CAP

vacuum hose

1шт.

Not Shown

1шт.

This cap is used to cap the vacuum manifold to individual split rows when planting corn.

1шт.
