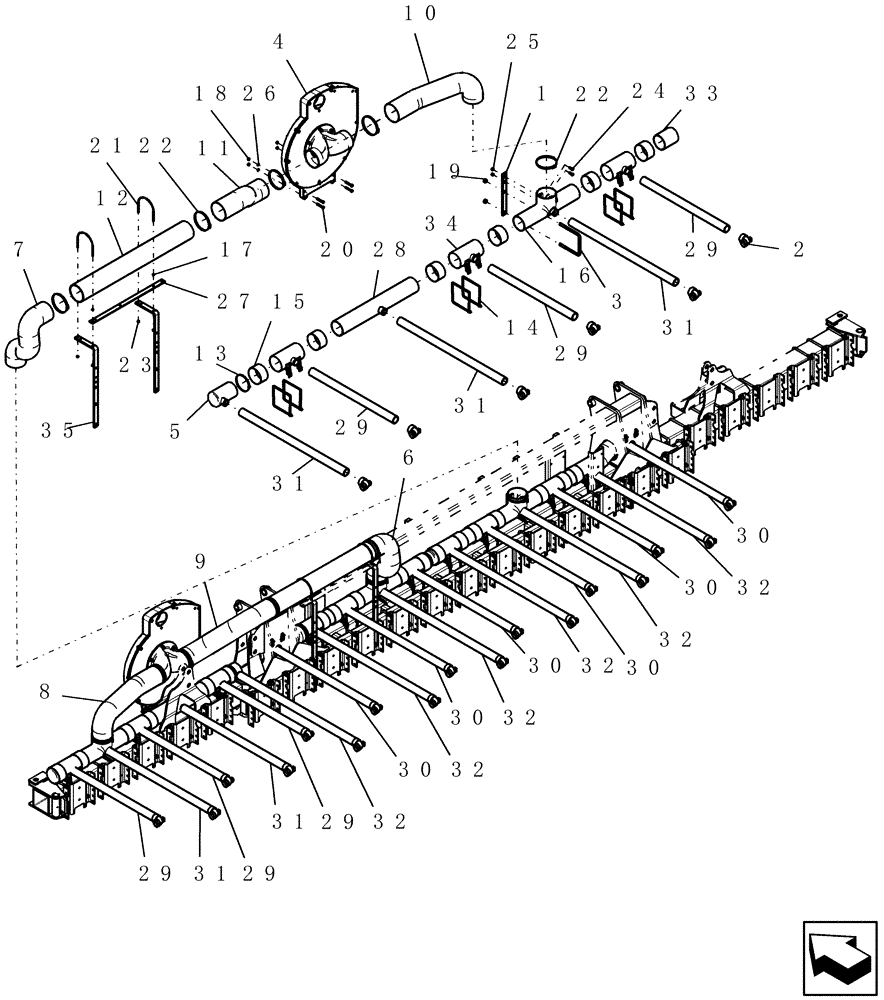

Запчасти Case IH 1200PT (L.10.E[14]) - VACUUM AIR SYSTEM - 12/23 ROW (ASN CBJ026003) L - Field Processing

1

86991575

BRACKET

4-way tee mounting

4шт.

2

87500119

TUBE

90º 50 mm - vacuum

23шт.

3

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

20шт.

4

REF

INSTRUCTION

FAN ASM VACUUM 6IN INLET

2шт.

5

446492A1

CAP

2" tee

2шт.

6

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

7

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

8

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

9

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

10

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

11

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

6 - 11

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

12

87502313

TUBE,6 mm OD x 48 mm L

6" od x 48"

2шт.

13

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

2шт.

14

112620A1

CABLE TIE

CABLE STRAP 34"

26шт.

15

447175A3

SLEEVE

manifold seal

26шт.

16

86988117

TEE

4-way

4шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

18

9628503

NUT,3/8"-16, G5

17шт.

19

280374

NUT,Hex, 5/8" - 11, Gr 5

92шт.

20

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

8шт.

21

87427116

U-BOLT

ur 1/4" 6 17/32"w 6 25/32"d yzd with 1 1/2" thread

4шт.

22

214-14104

HOSE CLAMP,155.45mm - 177.8mm

12шт.

23

86625061

NUT,1/4"-20, GB

8шт.

24

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

8шт.

25

247780

SERRATED NUT,Flg, USR, 3/8"-16

24шт.

26

80680

LOCK WASHER,3/8 0.381 CST ZND

26шт.

27

444186A1

SUPPORT TUBE

tube support

2шт.

28

87417935

TEE

vacuum manifold, long

2шт.

29

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut 927 mm length from bulk hose

1шт.

30

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut 1107 mm length from bulk hose

1шт.

31

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut 1157 mm length from bulk hose

1шт.

32

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut 1307 mm length from bulk hose

1шт.

33

87417934

PLUG

vacuum manifold

6шт.

34

446603A2

TEE

Vacuum Manifold

15шт.

35

427745A2

BAR

vacuum support

4шт.
