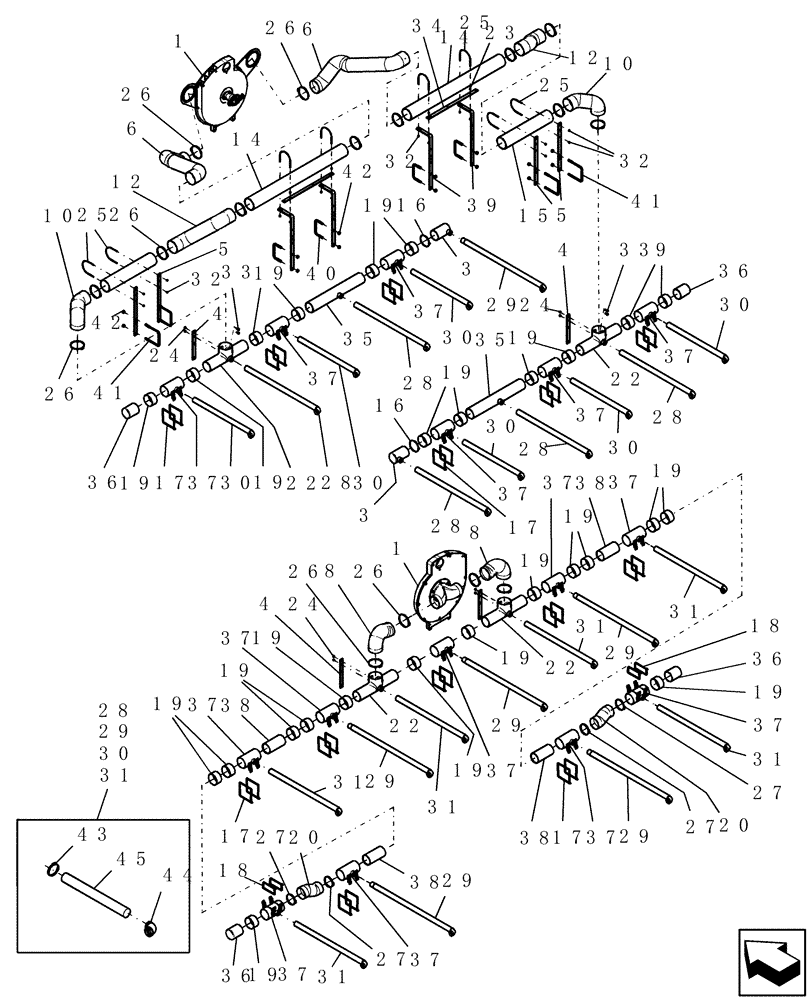

Запчасти Case IH 1200PT (L.10.E[13]) - VACUUM AIR SYSTEM - 12/23 ROW (BSN CBJ026002) L - Field Processing

1

REF

INSTRUCTION

FAN, ASM VACUUM, 6" INLET

2шт.

3

446492A1

CAP

2" tee

2шт.

4

86991575

BRACKET

4-way tee mounting

4шт.

5

87424162

BRACKET

6" hose

4шт.

6

NSS

NOT SOLD SEPARAT

6" FLEX HOSE, 1336MM

2шт.

Cut from bulk hose 86988929

1шт.

8

NSS

NOT SOLD SEPARAT

6" FLEX HOSE, 392MM

2шт.

Cut from bulk hose 86988929

1шт.

10

NSS

NOT SOLD SEPARAT

6" FLEX HOSE, 610MM

2шт.

Cut from bulk hose 86988929

1шт.

12

NSS

NOT SOLD SEPARAT

6" FLEX HOSE, 915MM

2шт.

Cut from bulk hose 86988929

1шт.

6-12

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

Must be sold in multiples of 25'

1шт.

14

451530A2

TUBE

6" od x 60"

2шт.

15

87419563

TUBE,150.4 mm OD x 762 mm L

6" od x 30"

2шт.

Cut from bulk tube 451530A2

1шт.

16

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

2шт.

17

112620A1

CABLE TIE

CABLE STRAP 34"

30шт.

19

447175A3

SLEEVE

manifold seal

26шт.

20

NSS

NOT SOLD SEPARAT

FLEX HOSE, 5.5IN ID X 350MM

2шт.

Cut from bulk hose 86991569

1шт.

20

86991569

INTAKE AIR HOSE

5 1/2" id x 25' roll black

1шт.

Must be sold in multiples of 25'

1шт.

22

86988117

TEE

4-way

4шт.

23

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

24

9628503

NUT,3/8"-16, G5

21шт.

25

87427116

U-BOLT

ur 1/4" 6 17/32"w 6 25/32"d yzd with 1 1/2" thread

8шт.

26

214-14104

HOSE CLAMP,155.45mm - 177.8mm

16шт.

27

214-1488

HOSE CLAMP,130.05mm - 152.4mm

4шт.

28

87424203

HOSE

51 mm x 1190 mm flexible, Serial Range: -CBJ022977

5шт.

28

87501735

HOSE

vacuum with elbow - 1190, Start Serial: CBJ022978

5шт.

Includes ref #44 and 45

1шт.

29

377589A1

HOSE,50.95 mm ID, 52.00 mm ID x 1190.00 mm

, Serial Range: -CBJ022977

6шт.

29

87501736

HOSE

vacuum with elbow - 1340, Start Serial: CBJ022978

6шт.

Includes ref #44 and 45

1шт.

30

377590A1

HOSE,50.95 mm ID, 52.00 mm ID x 960.00 mm

, Serial Range: -CBJ022977

6шт.

30

87501732

HOSE

vacuum with elbow - 960, Start Serial: CBJ022978

6шт.

Includes ref #44 and 45

1шт.

31

442135A1

HOSE

molded flex 51 mm x 1140 mm, Serial Range: -CBJ022977

6шт.

31

87501734

HOSE

vacuum with elbow - 1140, Start Serial: CBJ022978

6шт.

Includes ref #44 and 45

1шт.

32

86625061

NUT,1/4"-20, GB

16шт.

33

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

8шт.

34

444186A1

SUPPORT TUBE

tube support

2шт.

35

87417935

TEE

vacuum manifold, long

2шт.

36

87417934

PLUG

vacuum manifold

4шт.

37

446603A2

TEE

Vacuum Manifold

15шт.

38

86988928

TUBE,116.88 mm ID x 125 mm OD x 250 mm L

5" rigid x 250 mm

4шт.

39

427745A2

BAR

vacuum support

4шт.

40

142583A1

U-BOLT

us 5/8"-11 7"w 4 7/32"d G5 2" thread

26шт.

41

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

26шт.

42

280374

NUT,Hex, 5/8" - 11, Gr 5

104шт.

43

82012728

COLLAR,50mm - 65mm, Worm Gear

, Serial Range: CBJ022978-CBJ025263

23шт.

44

66000962

ELBOW

90º 50 mm - Brazil vacuum hose, Serial Range: CBJ022978-CBJ025263

23шт.

44

87500119

TUBE

90º 50 mm - vacuum, Start Serial: CBJ025264

23шт.

45

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

5шт.

45

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

6шт.

45

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

6шт.

45

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

6шт.

100

446682A1

CAP

vacuum hose

1шт.

Not Shown

1шт.

This cap is used to cap the vacuum manifold to individual split rows when planting corn.

1шт.
