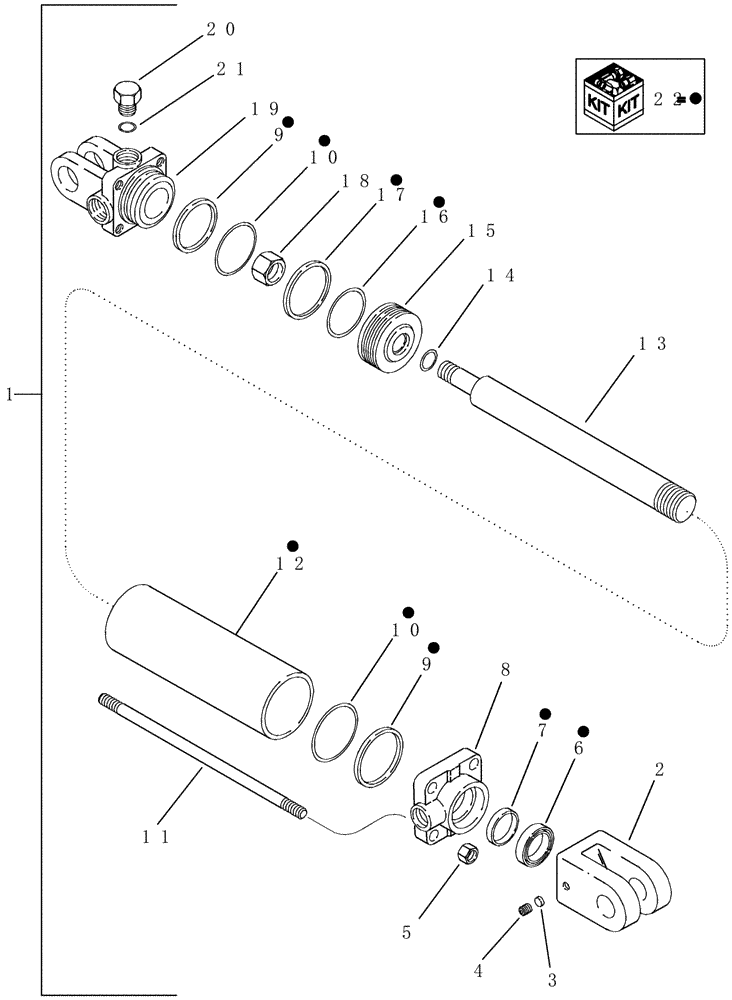

Запчасти Case IH 1200PT (A.10.A[15]) - HYDRAULIC CYLINDER - 429836A1 A - Distribution Systems

1

429836A1

HYDRAULIC CYLINDER

HTI 2 1/2" x 8", Serial Range: -CBJ0018124

1шт.

2

145233C1

CLEVIS,1/4" - 12

end, rod

1шт.

3

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

4

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

5

280717

NUT,7/16"-14, G5

8шт.

6

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 79975C2

1шт.

7

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Included in repair kit 79975C2

1шт.

8

1272767C1

CYLINDER END CAP

head, hyd front

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER BACKUP

2шт.

Included in repair kit 79975C2

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 79975C2

1шт.

11

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

bolt, hyd cylinder tie

4шт.

12

NSS

NOT SOLD SEPARAT

CYLINDER TUBE

1шт.

13

145231C1

PISTON ROD

hyd cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING ROD

1шт.

Included in repair kit 79975C2

1шт.

15

145221C3

PISTON

hyd cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON SEAL EXPANDER

1шт.

Included in repair kit 79975C2

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON SEAL

1шт.

Included in repair kit 79975C2

1шт.

18

281010

LOCK NUT,7/8"-14, GC

1шт.

19

1272766C1

HEAD

hyd cylinder rear

1шт.

20

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

79975C2

SEAL KIT

kit, hyd cylinder service

1шт.
