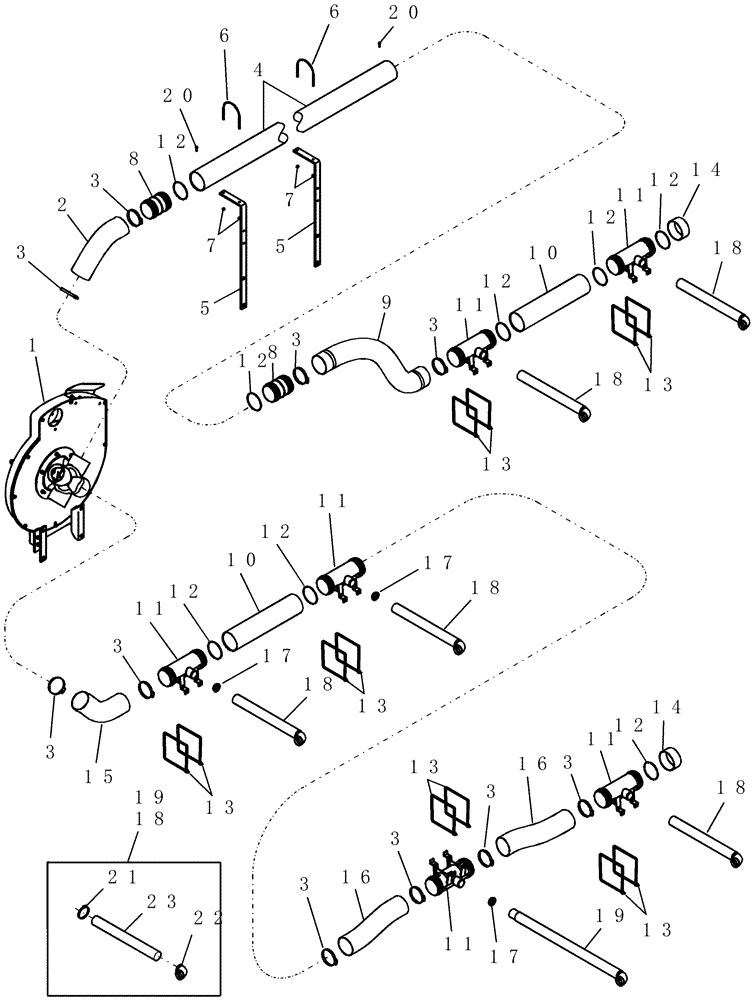

Запчасти Case IH 1200PT (L.10.E[10]) - VACUUM AIR SYSTEM - 12 ROW (BSN CBJ025653) L - Field Processing

1

REF

INSTRUCTION

FAN ASSY.

1шт.

2

393045A1

HOSE,114.30 mm ID x 430.00 mm

Flex

2шт.

Cut from 362013A1

1шт.

3

9706924

HOSE CLAMP,103.1mm - 127mm

20шт.

4

391886A1

TUBE,116.88 mm ID, 125 mm OD

vacuum 5" x 2010 mm long

2шт.

Cut from 362014A1

1шт.

5

427745A2

BAR

vacuum support

4шт.

6

392969A1

U-BOLT

BOLT "U" ur 1/4"-20 5 9/32" w 5 25/32" d 1 25/32" thread, vacuum system

4шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

8

392979A1

FITTING

pvc connector 4"

4шт.

9

409368A1

HOSE

flex 4 1/2" x 1120 mm

2шт.

Cut from 362013A1

1шт.

10

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

4шт.

Cut from 362014A1

1шт.

11

300766A1

TEE

vacuum manifold

12шт.

12

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

16шт.

13

112620A1

CABLE TIE

CABLE STRAP 34"

24шт.

14

300767A1

CAP

vacuum manifold end

4шт.

15

393046A1

HOSE,114.30 mm ID x 370.00 mm

Flex

2шт.

Cut from 362013A1

1шт.

16

393047A1

HOSE,114.30 mm ID x 560.00 mm

Flex

4шт.

Cut from 362013A1

1шт.

17

305519A1

PLUG

vacuum manifold restriction

6шт.

18

377590A1

HOSE,50.95 mm ID, 52.00 mm ID x 960.00 mm

, Serial Range: -CBJ022977

10шт.

18

87501732

HOSE

vacuum with elbow - 960, Start Serial: CBJ022978

10шт.

Includes ref #22 and 23

1шт.

19

87424203

HOSE

51 mm x 1190 mm flexible, Serial Range: -CBJ022977

2шт.

19

87501735

HOSE

vacuum with elbow - 1190, Years: -05-MAY-05, Start Serial: CBJ022978

2шт.

Includes ref #22 and 23

1шт.

19

87501733

HOSE

vacuum with elbow - 1000, Start Year: 06-MAY-05

2шт.

Includes ref #22 and 23

1шт.

20

87023137

SELF-TAP SCREW,Hex Wash Hd, #12 x 1"

4шт.

21

82012728

COLLAR,50mm - 65mm, Worm Gear

, Serial Range: CBJ022978-CBJ025263

12шт.

22

66000962

ELBOW

90º 50 mm - Brazil vacuum hose, Serial Range: CBJ022978-CBJ025263

12шт.

22

87500119

TUBE

90º 50 mm - vacuum, Start Serial: CBJ025264

12шт.

23

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

10шт.

Cut to 927 mm long

1шт.

23

87501726

HOSE

vacuum 2" x 50' bulk, Start Serial: CBJ022978

2шт.

Cut to 1158 mm long

1шт.
