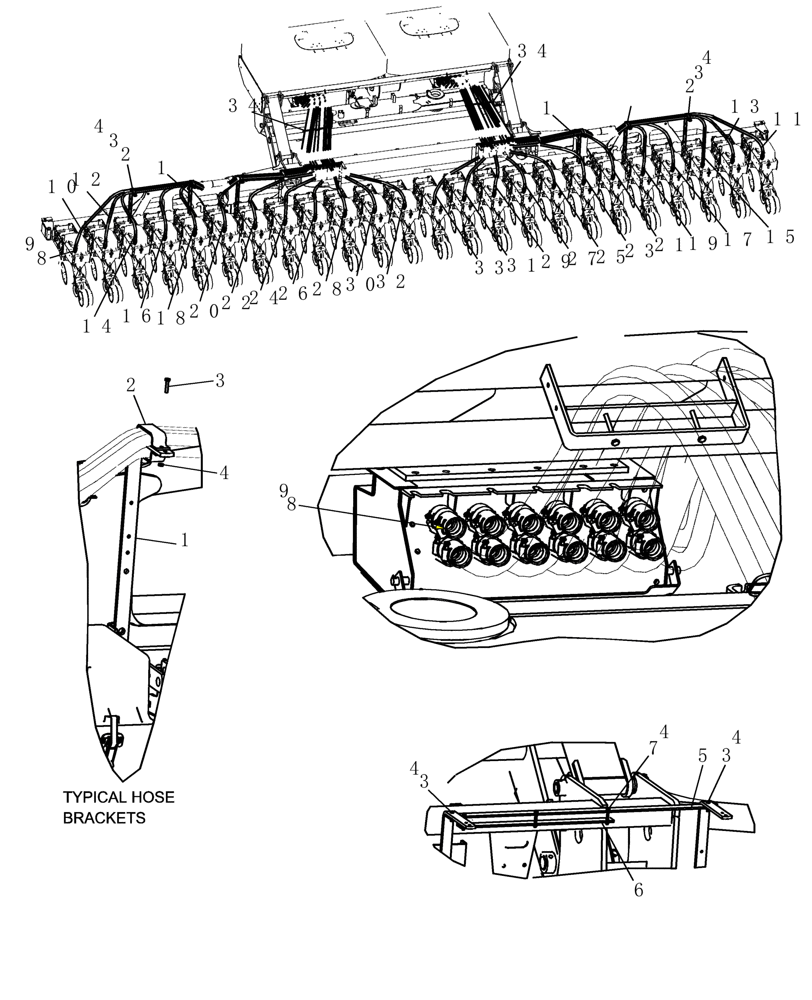

Запчасти Case IH 1200PT (L.10.E[08]) - BULK FILL - LAYOUT, AIR HOSES TO ROW UNITS, 24 ROW (ASN CBJ022252) L - Field Processing

1

427745A2

BAR

vacuum support

6шт.

2

87446019

BRACKET

hose support

10шт.

3

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

16шт.

4

86625061

NUT,1/4"-20, GB

22шт.

5

87446068

BAR

tube support

2шт.

6

87446071

BAR

tube support

2шт.

8

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

48шт.

7

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

6шт.

9

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

96шт.

10

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 7010MM

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 7010MM

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 6700MM

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 6700MM

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 6600MM

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 6600MM

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5715MM

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5715MM

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE,SEED 1.0 ID X 5590MM

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE,SEED 1.0 ID X 5590MM

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 4775MM

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 4775MM

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 4040MM

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3910MM

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3760MM

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3580MM

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3350MM

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3350MM

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3350MM

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3350MM

1шт.

30

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3350MM

1шт.

31

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3580MM

1шт.

32

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3760MM

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 ID X 3760MM

1шт.

10-33

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

34

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.
