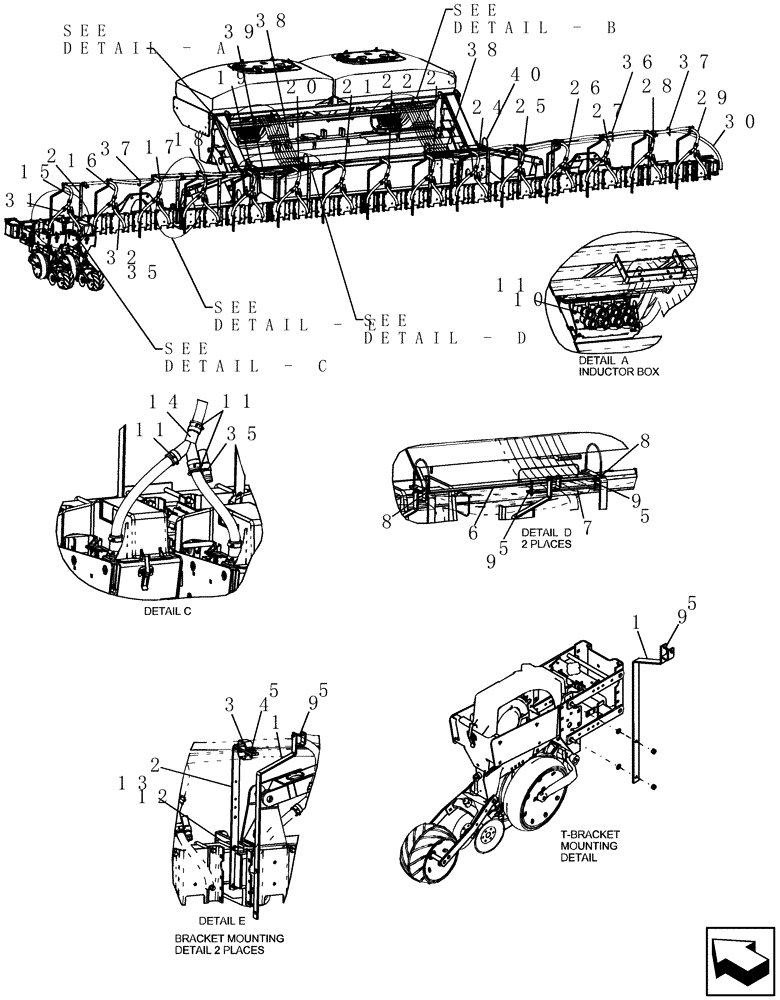

Запчасти Case IH 1200PT (L.10.E[06]) - BULK FILL - LAYOUT, AIR HOSES TO ROW UNITS, 16/31 ROW (BSN CBJ026002) L - Field Processing

1

451528A1

BRACKET

Y splitter

15шт.

2

427745A2

BAR

vacuum support

6шт.

3

450972A1

BRACKET

seed support, Serial Range: -CBJ022251

10шт.

3

87446019

BRACKET

hose support, Start Serial: CBJ022252

10шт.

10

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od, Start Serial: CBJ022251

17шт.

4

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

12шт.

5

86625061

NUT,1/4"-20, GB

31шт.

6

444190A1

SUPPORT TUBE

tube support

2шт.

7

444174A1

SUPPORT TUBE

tube support

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

9

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

19шт.

10

449129A1

COUPLING

seed hose, Serial Range: -CBJ022251

17шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

77шт.

12

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

13

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

14

443935A1

TUBE

splitter, seed

15шт.

15

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25" ID X 7239MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 7239MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 6477MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 6477MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25" ID X 5918MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5918MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 5105MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5105MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25" ID X 4369MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4369MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 3480MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3480MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 3480MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3480MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 4166MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4166MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 3480MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3480MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 3480MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3480MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25" ID X 4369MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4369MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 5105MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5105MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 6020MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 6020MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25" ID X 6579MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 6579MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25" ID X 7366MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 7366MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

30

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25" ID X 7620MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

30

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 7604MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

31

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 457MM, Serial Range: -CBJ022251

15шт.

Cut from bulk hose 412786A1

1шт.

32

NSS

NOT SOLD SEPARAT

HOSE BF SEED 1.25ID X 521MM

13шт.

Cut from bulk hose 412786A1

1шт.

15 - 32

412786A1

HOSE

1 1/4" pvc clear spiral 1/8" wall must be ordered in multiples of 100, Serial Range: -CBJ022251

1шт.

15 - 32

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral, Start Serial: CBJ022252

1шт.

35

87430980

PLUG

seed hose

15шт.

36

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

37

529070

CABLE TIE,368.3mm L

CABLE STRAP

3шт.

38

529070

CABLE TIE,368.3mm L

CABLE STRAP

4шт.

39

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

40

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.
