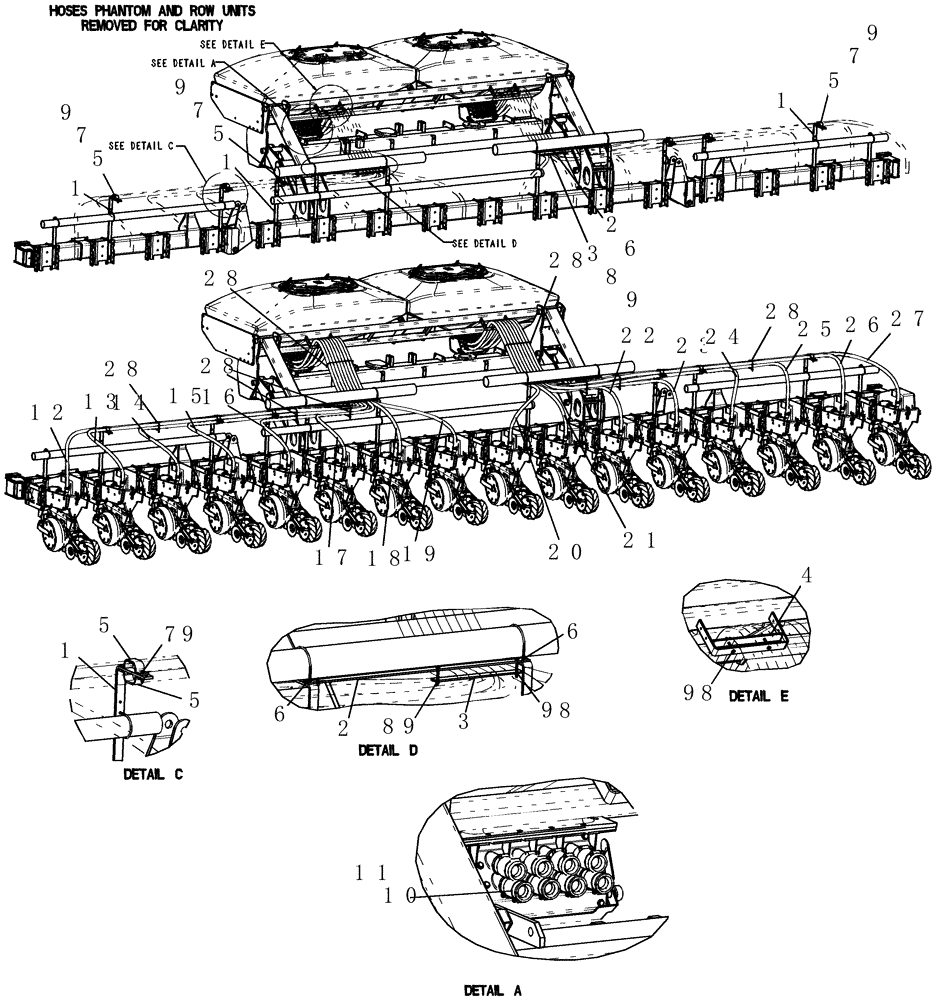

Запчасти Case IH 1200PT (L.10.E[04]) - BULK FILL - LAYOUT, AIR HOSES TO ROW UNITS, 16 ROW L - Field Processing

1

427745A2

BAR

vacuum support

6шт.

2

444190A1

SUPPORT TUBE

tube support

2шт.

3

444174A1

SUPPORT TUBE

tube support

2шт.

4

440367A1

BAR

seed hoses

2шт.

5

450972A1

BRACKET

seed support, Serial Range: -CBJ022251

10шт.

5

87446019

BRACKET

hose support, Start Serial: CBJ022252

10шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

7

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

12шт.

8

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

, Serial Range: -CBJ022251

8шт.

8

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

, Start Serial: CBJ022252

8шт.

9

86625061

NUT,1/4"-20, GB

20шт.

10

449129A1

COUPLING

seed hose, Serial Range: -CBJ022251

17шт.

10

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od, Start Serial: CBJ022252

17шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

32шт.

12

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 7239MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 7239MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 6833MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 6833MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 5994MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

14

HOSE, SEED 1.0 X 5994MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 5486MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5613MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 4570MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4570MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3734MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3734MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3378MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3378MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3556MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3556MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3734MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3734MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3378MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

21`

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3378MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3632MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3632MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 4570MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4570MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 5486MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5613MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 5715MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5715MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 6833MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 6833MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 7078MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 7078MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

13 - 27

412786A1

HOSE

1 1/4" pvc clear spiral 1/8" wall must be ordered in multiples of 100, Serial Range: -CBJ022251

1шт.

13 - 27

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral, Start Serial: CBJ022252

1шт.

28

529070

CABLE TIE,368.3mm L

CABLE STRAP

8шт.
