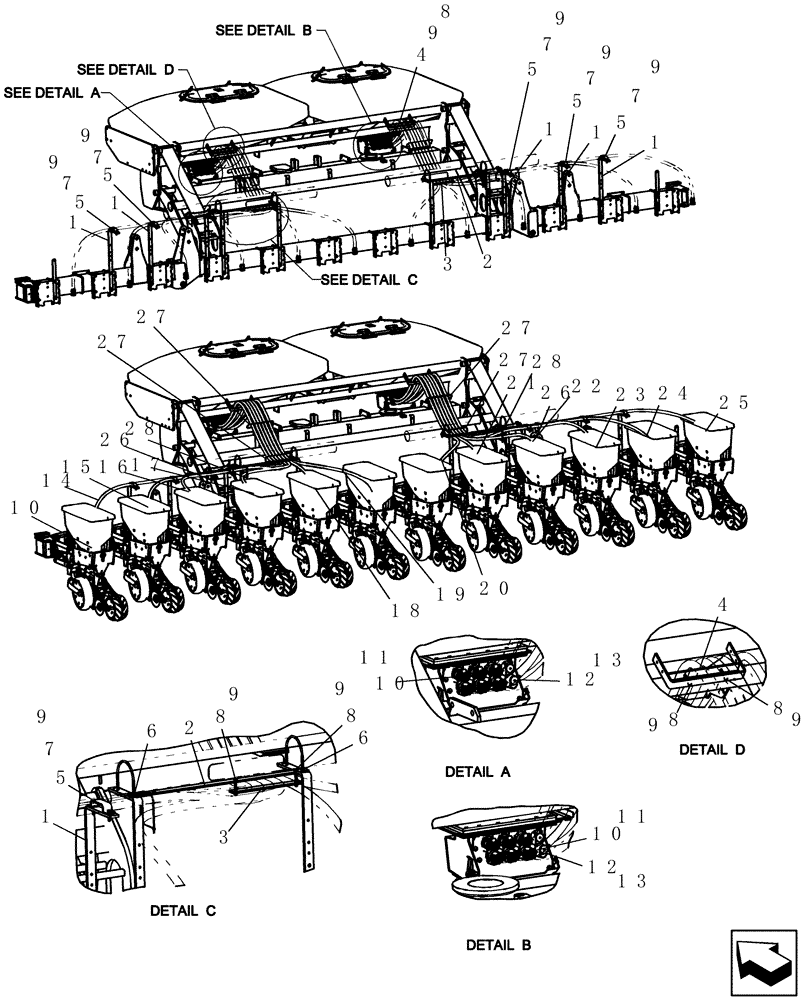

Запчасти Case IH 1200PT (L.10.E[03]) - BULK FILL - LAYOUT, AIR HOSES TO ROW UNITS, 12 ROW (ASN CBJ0018305) L - Field Processing

1

427745A2

BAR

vacuum support

6шт.

2

444186A1

SUPPORT TUBE

tube support

2шт.

3

444176A1

SUPPORT TUBE

tube support

2шт.

4

440367A1

BAR

seed hoses

2шт.

5

87446019

BRACKET

hose support

6шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

7

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

12шт.

8

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

8шт.

9

86625061

NUT,1/4"-20, GB

20шт.

10

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od

24шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

48шт.

12

2688

CAP

vinyl 1 3/16" x 1 1/2" black

4шт.

13

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

14

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 5994 mm long

1шт.

15

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 5450 mm long

1шт.

16

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 4369 mm long

1шт.

17

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 3734 mm long

1шт.

18

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 3350 mm long

1шт.

19

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 3556 mm long

1шт.

20

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 3556 mm long

1шт.

21

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 3350 mm long

1шт.

22

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 3632 mm long

1шт.

23

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 4369 mm long

1шт.

24

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 5450 mm long

1шт.

25

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral

1шт.

Cut to 5994 mm long

1шт.

26

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

27

529070

CABLE TIE,368.3mm L

CABLE STRAP

4шт.

28

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.
