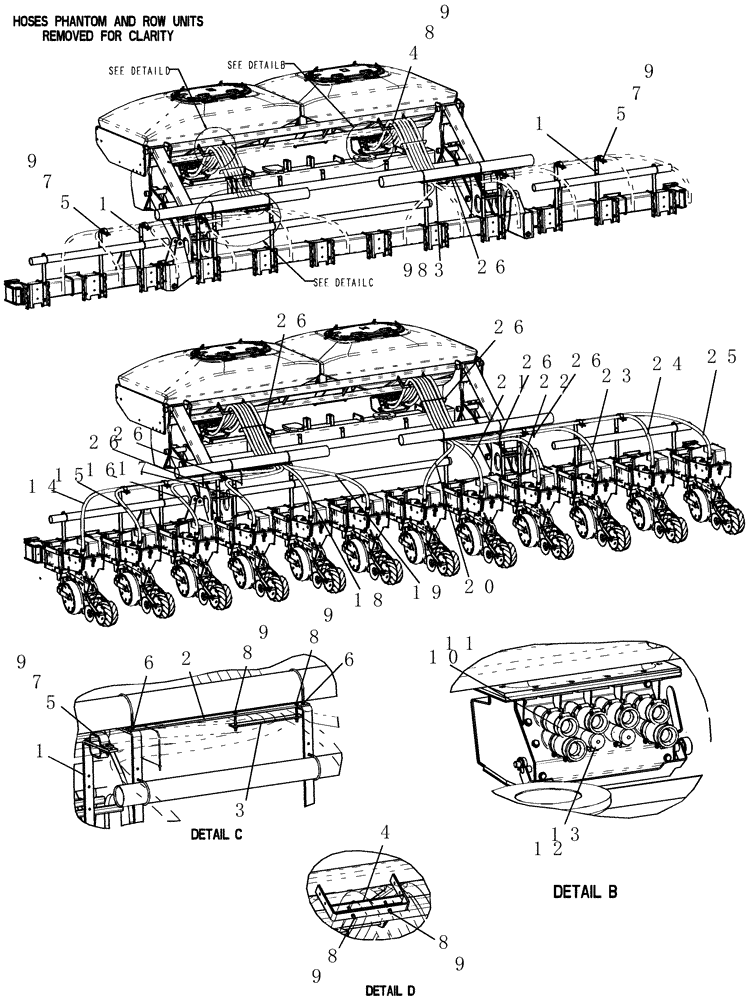

Запчасти Case IH 1200PT (L.10.E[02]) - BULK FILL - LAYOUT, AIR HOSES TO ROW UNITS, 12 ROW (BSN CBJ0018305) L - Field Processing

1

427745A2

BAR

vacuum support

6шт.

2

444186A1

SUPPORT TUBE

tube support

2шт.

3

444176A1

SUPPORT TUBE

tube support

2шт.

4

440367A1

BAR

seed hoses

2шт.

5

450972A1

BRACKET

seed support, Serial Range: -CBJ022251

8шт.

5

87446019

BRACKET

hose support, Start Serial: CBJ022252

8шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

7

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

12шт.

8

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

, Serial Range: -CBJ022251

8шт.

8

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

, Start Serial: CBJ022252

8шт.

9

86625061

NUT,1/4"-20, GB

20шт.

10

449129A1

COUPLING

seed hose, Serial Range: -CBJ022251

13шт.

10

87445891

ADAPTER

seed hose 1 1/4" - 1 1/2" od, Start Serial: CBJ022252

13шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

24шт.

12

2688

CAP

vinyl 1 3/16" x 1 1/2" black

4шт.

13

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

14

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 5715MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5994MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 5320MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5450MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 4369MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4369MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3734MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3734MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3210MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3350MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3378MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3556MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3556MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3556MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3210MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3350MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 3632MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 3632MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 4369MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 4369MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 5320MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5450MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE SEED 1.25ID X 5486MM, Serial Range: -CBJ022251

1шт.

Cut from bulk hose 412786A1

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE, SEED 1.0 X 5994MM, Start Serial: CBJ022252

1шт.

Cut from bulk hose 87446431

1шт.

14 - 25

412786A1

HOSE

1 1/4" pvc clear spiral 1/8" wall must be ordered in multiples of 100, Serial Range: -CBJ022251

1шт.

14 - 25

87446431

HOSE,25.40 mm ID x 710.00 mm

PVC clear spiral, Start Serial: CBJ022252

1шт.

26

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.
